2020/2040 Extrusion SKR V1.3 SKR V1.4 MKS Gen-L mount

I need a holder for my new SKR1.3 combined with dual Mosfet and Raspberry Pi3b. After looking for a matching design, i found https://www.thingiverse.com/thing:3463468 from neb1.

The additional requirements were:

- Orientation of the SKR1.3 with USB and TF Card turned by 90°

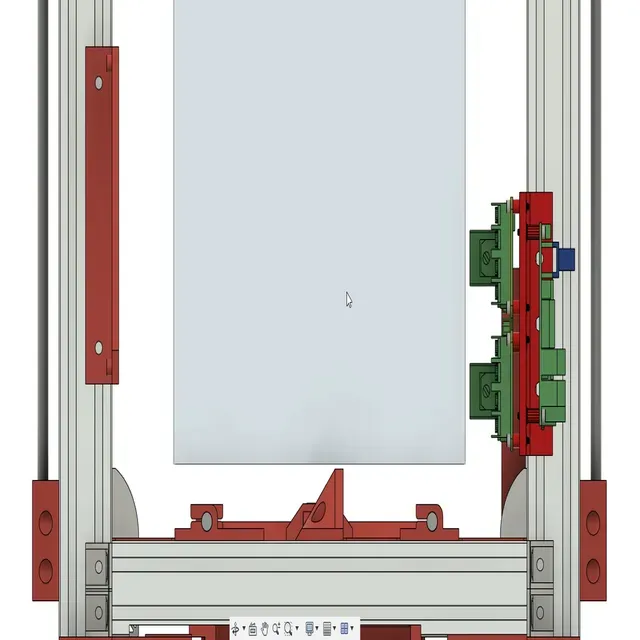

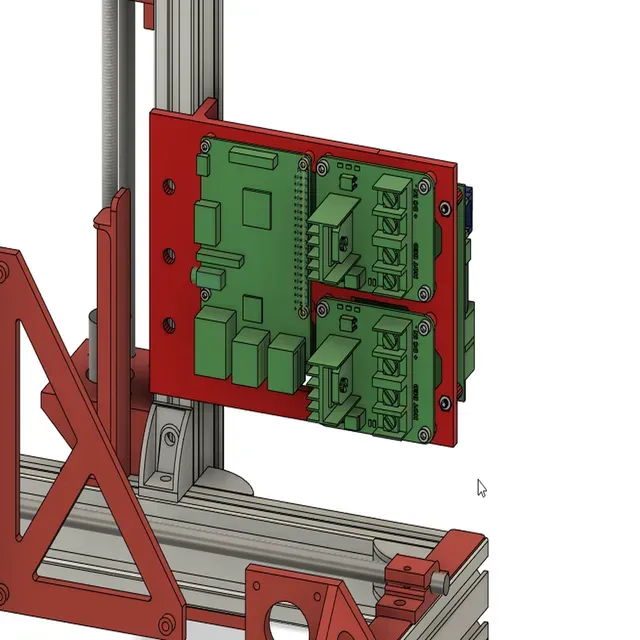

- 2 Extra Mosfets close to the Power Connections of SKR1.3

- Extra space for Raspberry Pi3 B

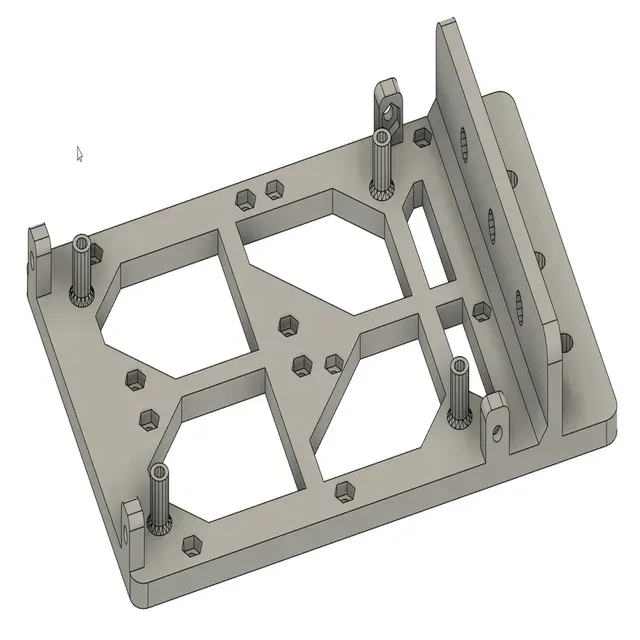

- extra holder for a fan and a buck converter For future changes (maybe only one Mosfet, or a Fan on top of the board, i decided to keep up with a modular design with spacers and hex nuts. I want to keep printing very easy and fast.

For mounting the mosfets you need the spacers M3x5.

For the Raspberry, you need to print spacers M2,5x5

For the buck converter you need to print spacers M3x12

-You also need M3 Screws and Nuts to mount all the PCB's.

-For the Raspberry you need screws and nuts M2.5

-I incuded the necessary spacers for the mosfets, Pi and the fan.

Please notice, that this thing is work in progress. The design may change at some point. Also the holder for the fan has to be added. Please be patient.

Update: 2019-12-15

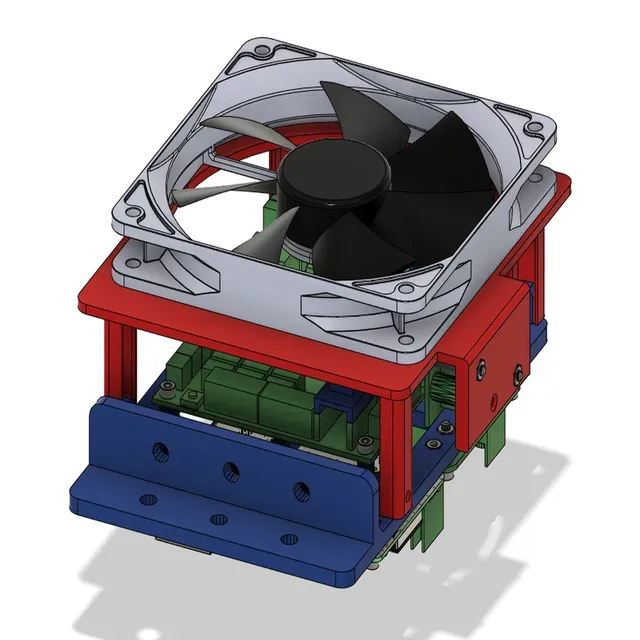

Added a holder for 120mm fan also with buck converter.

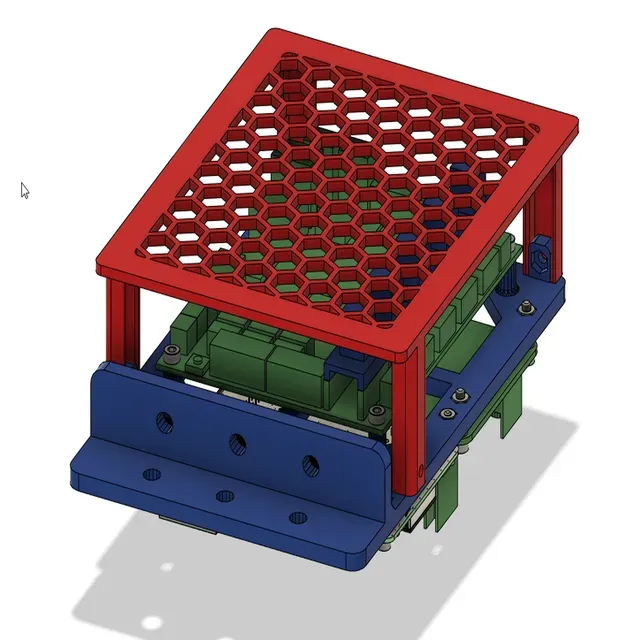

Added a cover without fan option.

Update: 2019-12-14

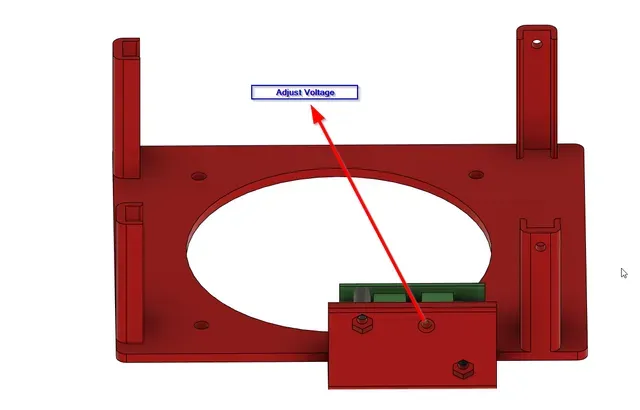

Added a holder for 92mm fan and additional buck converter. Voltage of the buck converter ist adjustable thru extra hole.

Print Settings

Printer Brand:

Anet

Printer: A8

Rafts:

Doesn't Matter

Supports: Doesn't Matter

Resolution:

0.2

Infill: 25%

Filament:

ALCIA PETG RED Notes:

Printing with 60mm/sec 3 Top and Bottom solid layers

2 outer perimeter
