Cooler Master QUBE500 USB Hub Dock (universal cuboid mounting system)

Сведения о модели

Площадка
Printables
Цена
Бесплатно
Лицензия
CC0
Общественное достояние: можно печатать, изменять и продавать без указания автора.
Форматы
STL
  • 4 Лайки
  • 13 Загрузки
  • 0 Напечатали
  • 0 Комментарии
  • 190 Просмотры

Автор:robertmaynard70

Опубликована

Описание

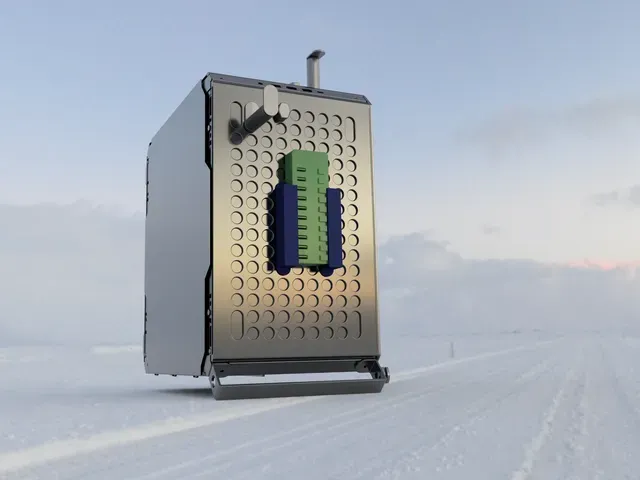

This is my entry for the Cooler Master QUBE500 design contest. It's a (nearly) universal mounting system for cuboids. For me, desk space is always at a premium as I almost always have half-finished projects cluttered around. At first I thought a bigger desk was the solution. That just brought in more half-finished projects. This design was originally meant to mount my 10 port usb hub onto the case, but I designed several incremental changes to accommodate thicker or thinner objects between 10mm and 30 mm, and width increments of 5mm, to offset the 20mm spacing of the holes in the QUBE500. Mix and match to fit your specific needs. (I used the already designed hooks that were included in the step files provided. If they don't print right, it's CM's fault haha :) Also, if 30mm isn't thick enough, feel free to snag the design and widen the slots to fit your needs.
