Bosch PTS10 Emergency STOP Button

Emergency STOP button for BOSCH Table Saw PTS10.

The original button is very small, so with this item will be easy to reach.

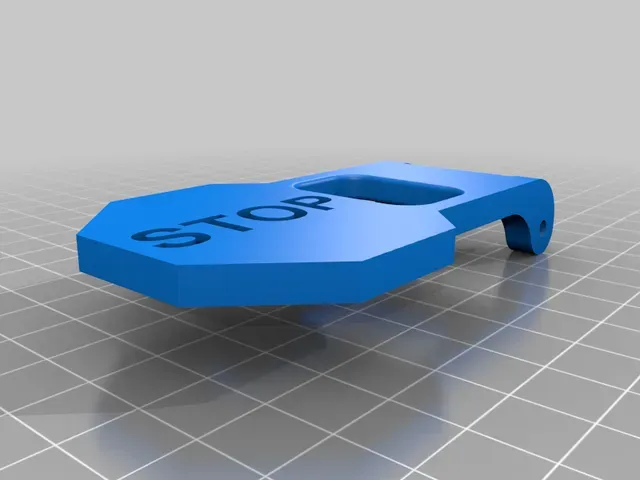

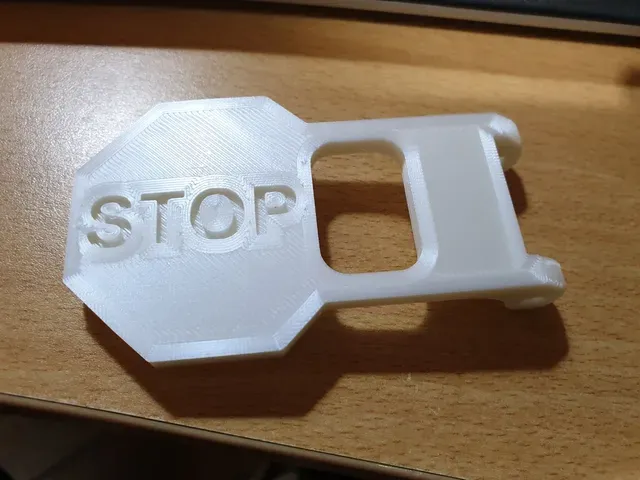

I printed this tool in white PLA and the four chars that compose the STOP word with red PLA, then merged together with some glue.

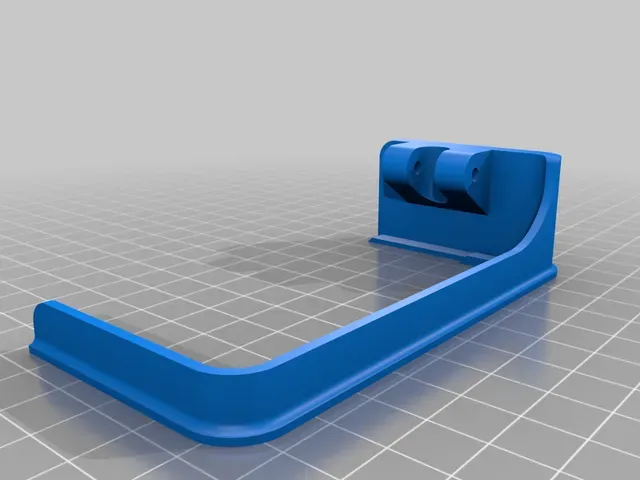

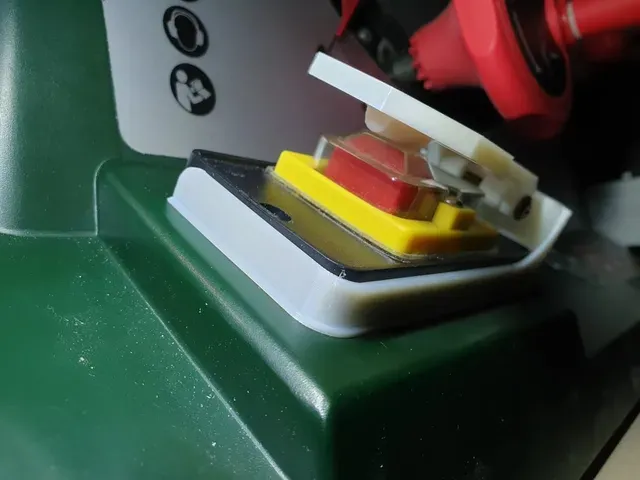

To install you have just to loosen the two screws of the power button and slide the base, then, after tighten the screws, mount the other part.

I uploaded two version.

The first version was with 4mm holes, but very small amount of material around holes, so I modify the parts and made a 3mm holes version.

Notes:

To mount the parts you need:

* 1 x 45mm screw (m3/m4) * 2 x washers * 1 x anti-loose nut (m3/m4) * some glue for letters
