MarkIII Hinged Electronics Panel

This uses “skateboard” bearings to create a hinged panel for easy access for initial wiring and any maintenance. I use magnets to hold the panel in the vertical position with one bolt to prevent it from bouncing off accidentally.

Additionally, I have included a mounting pad for the Pololu Maestro 18 for the front interior of the droid for making wire management easier.

I have mounting positions for the following:

Sure 12V Audio Amplifier Human Cyborg Relations Sound Module Roam-A-Dome Control Module Kyber Control Syren 10A 12-5V Buck Converter Power Switches Fuses FrSky X8R Radio Receiver

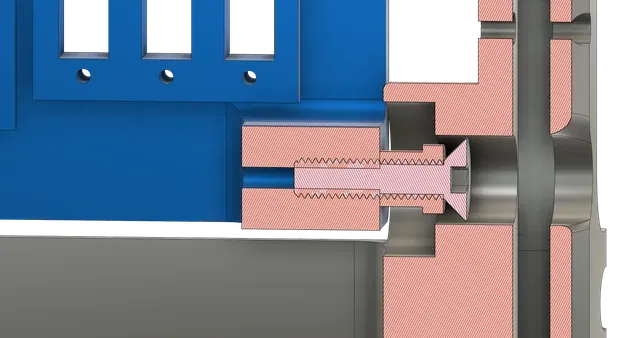

Use M4 Heat Inserts in the side mounts. Use 10mmx5mm Neodymium magnets

Includes 200mm cut options if you have a small printer.
