Rollbar Case for Orange Pi 5 Plus and Official Aluminum Heatsink and 40mm x 10mm fan.

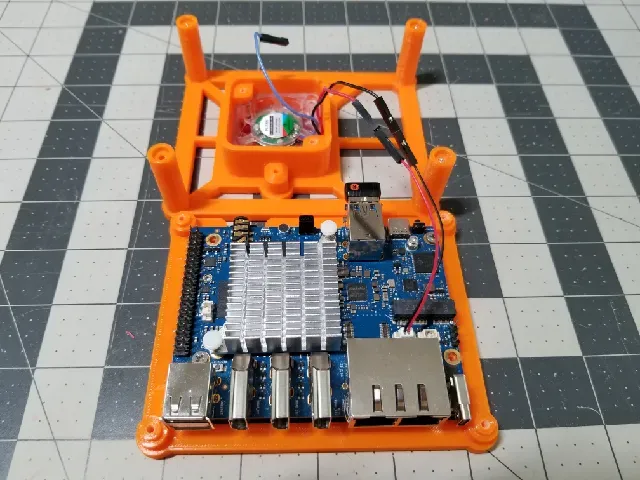

This is a simple little protect case/stand thing for an Orange Pi 5 Plus and the Official Orange Pi Aluminum Heatsink. This version of this case has a place to mount a 40mm x 10mm fan (not Noctua).

The heatsink this case works with has an Amazon # B0CJ9HTKMQ

The fan this is intended to work with has an Amazon # B07X6DJZPX

There is a place to mount a mesh screen above the fan. B09Y336F2R is the type of material I use. There is a part you can print as a guide to cut the material.

There's a place for rubber feet on the bottom. B073W1B3G1

The case is designed to be assembled with #4 x ½" self tapping screws. B07YFNJ5YK

If you use B013JRWCBU to connect the fan to the FAN connector on the board, the fan will turn on when the SOC reaches 55 degrees.

I have included a STP file which you can use to modify/remix.
