P3Steel / I3 - E3d V6 Dual hot end mount with channelled cold end cooling flow

I've downloaded & printed the great and simple "P3Steel - E3d V6 bowden dual extruder mount" by outcastrc.

The problem I found is that the air wash, that flows though cold-end, go downwards after getting trapped between the X-carriage and the hot end mount. This could be trivial when printing PLA, but ABS hates cool air flows...

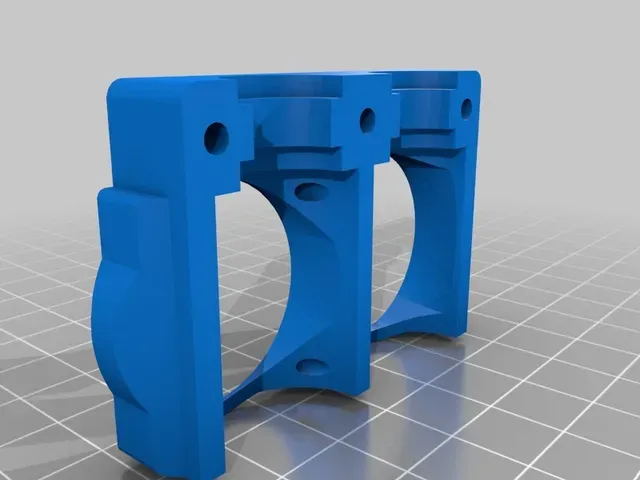

To solve this I've designed this hot end mount, based on outcastrc's mount geometries, that channels the air flow to the sides and upwards.

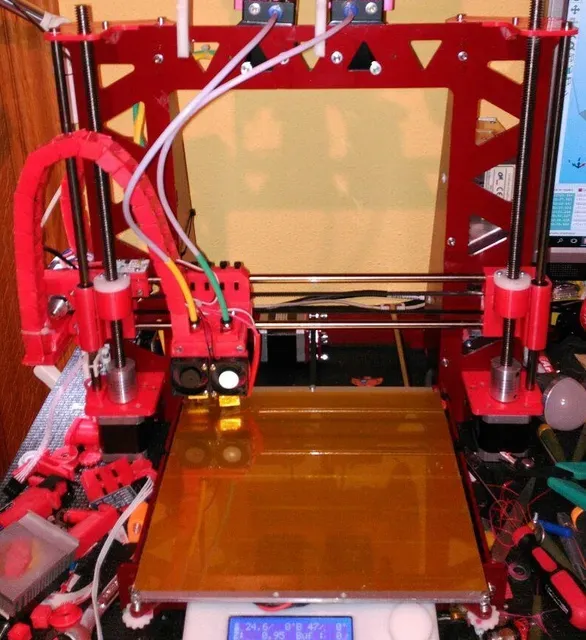

This is a work in progress but I've been using it for a long time now, and it's perfectly functional in this stage. further changes will be only small corrections.

If you think it deserves downloading... Please leave a Like!

Be proud, Show your makes!

EDIT Feb. 24: Fixed some glitches in Mount_back.stl. renamed to Mount_back_rev1.stl

EDIT May. 24: Added Mount_front_with_18mm_sensor mount.stl by request. the sensor mount is based on http://www.thingiverse.com/thing:1386046 .

EDIT Oct 29 2017: If you have a Tronxy X3, you should have a look at this part: https://www.thingiverse.com/thing:2613007 .
