Pirate Flag

Arrrr! Pirate Flag in Two Parts for Easy Printing and Display

Original design for the 2023 Christmas Community Print Drive .

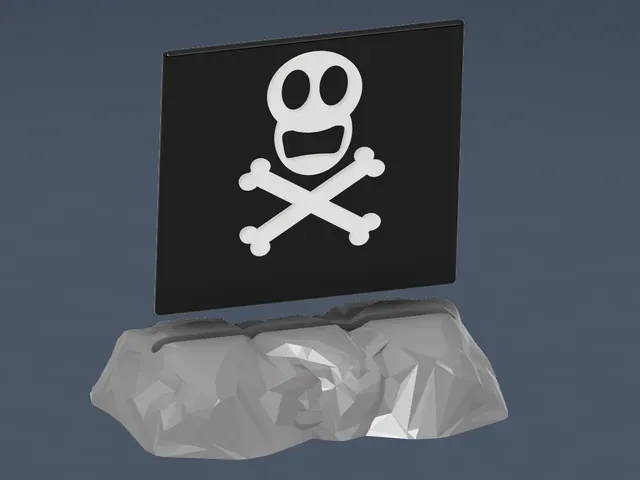

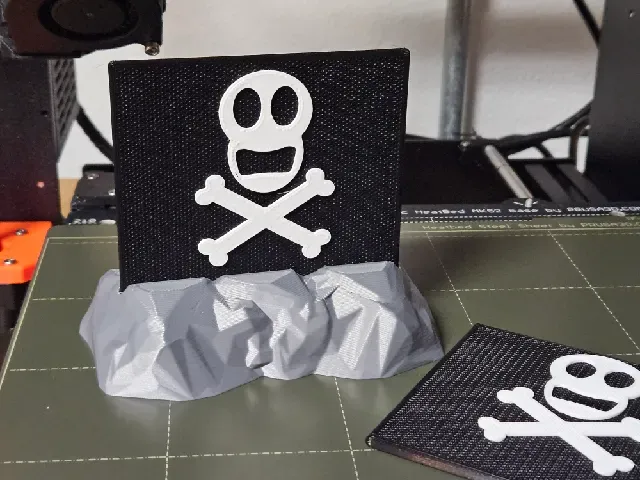

Set the scene or mark your territory with this cute Pirate Flag. The flag and the base print separately and fit together for a fun display. Base prints without supports and can be rotated to show either side with the front of the flag.

More Models: Collection of all approved 2023 Christmas Community Print Drive models

More Flag Options: Flag pole models and blank flags for your own text or logos, see my post on Cults3D: https://cults3d.com/en/3d-model/game/pirate-flag-abbymath

Additional Information and Print Settings

The “Base” model is approximately 117 x 70 x 24 mm. I printed it with 0.25 mm layer height, 3 perimeters, 4 solid top and bottom layers, and 20% infill. No supports. No raft.

The “Flag for Base” model is approximately 100 x 70 x 4.5 mm. The color swap for the flag is at 3.5 mm height; the skull and crossbones is 1 mm thick. I printed with 0.25 mm layer height, 2 perimeters, 3 solid top and bottom layers and 15% infill.

To get the texture on the top layer, after two solid layers, I printed with 80% honeycomb infill on the top layer, but this is not required for the toy drive. Also, for my next round of printing, I changed the skull and crossbones to have 1 perimeter and this allowed more room for the external infill and created a more complete surface (see photo of four at the end).

If you are printing for the Community Print Drive , be sure to use the appropriate guidelines: 2023 Christmas Community Print Drive Printing Guidelines

More of my designs on Cults3D: https://cults3d.com/en/users/abbymath

Not for commercial use. No derivatives. See license below.
