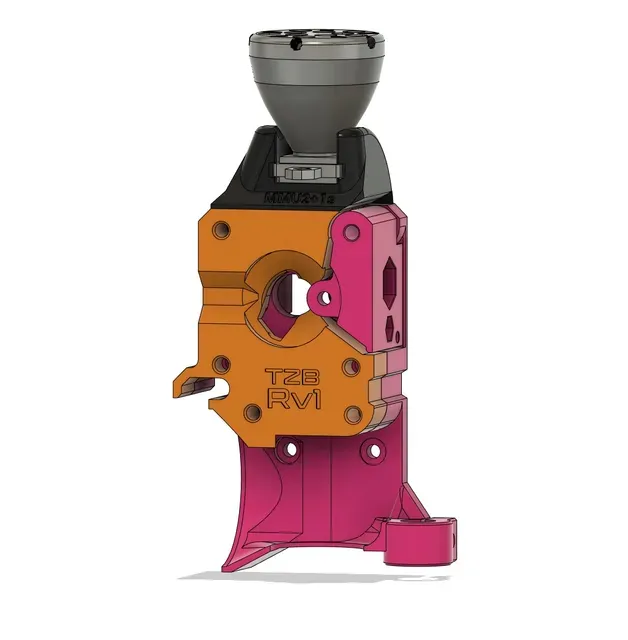

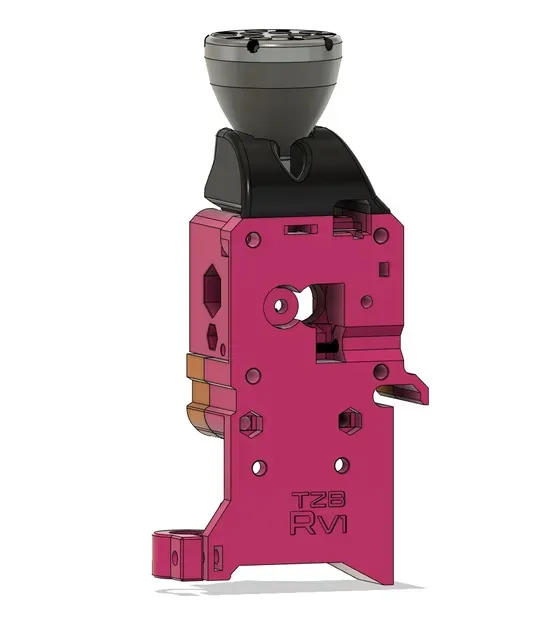

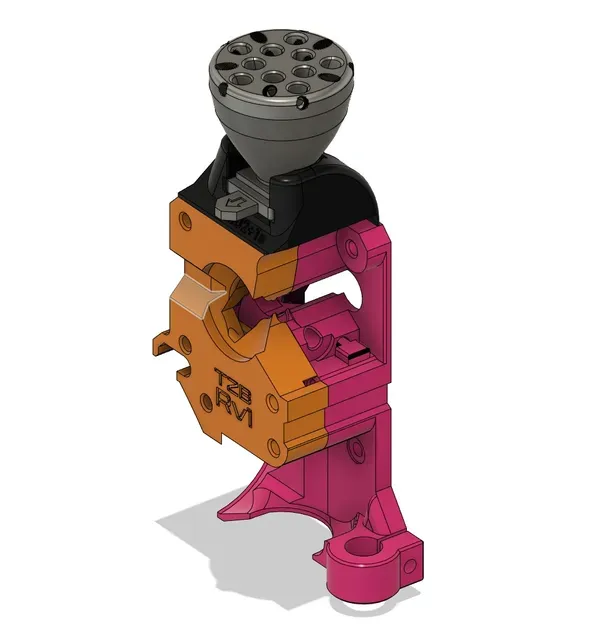

TZB Ryper "Rv1" version MK3s+ for MMU2s or MMU2+1s

This is our version for TZB mk3s extruder for MMU2s and MMU2+1s, base extruder MK3s+.

Minor changes in lenght of the superior ptfe (now more near to bontech gears), PIN head a little narrower, hole of the idler screw a little wider.

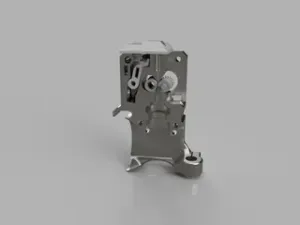

Based on the original TheZeroBeast v2 extruder:

https://www.prusaprinters.org/es/prints/7690-tzb-mk3smk25smmu2s-extruder-mmu2s-no-tower-v2

You can use the assemble guide from prusa MK3s+.

Insert PIN with stair down and two magnets attracting.

3perimeters - 20% infill its ok.

Print PIN and Lever separate of the rest, lever with air flow at 100%.

Use Ptfe OD4-ID3.

Before closing check the correct operation:

Step files now included.

Please use this cutter guide as assistance for the PTFE (18.5mm) between the splitter and Ryper Extruder:

https://www.printables.com/model/364903-ryper-splitter-185mm-ptfe-cutter-guide

Telegram Ryper3Ddesing group (Spanish group):

https://t.me/RYPER3D
