LM2596S Case

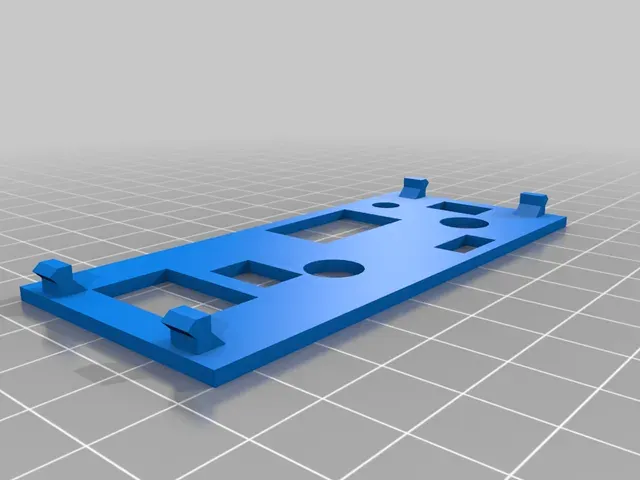

This is a remix of LM 2596 case by Kyrtje. I needed a case for the LM 2596 MH. I modified the accommodate a switch and the MH model of the LM 2596. I also added a button I found from another LM 2596 case on Thingiverse, but I can't find it now to give credit.

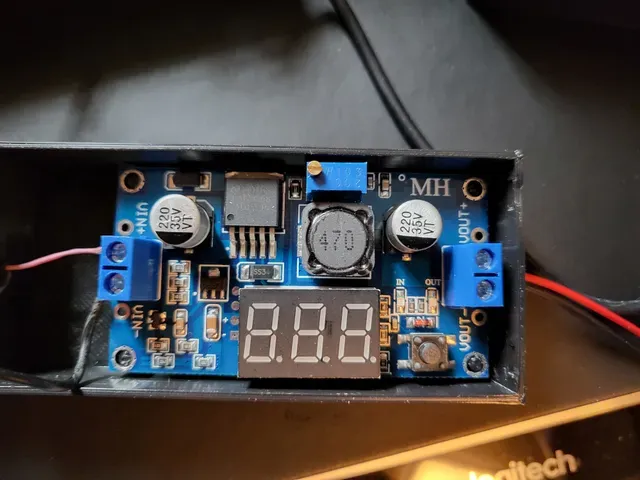

I ordered this LM259S on Amazon. What I received shows it is a LM2596S, but it is different than is in the picture on the product page. I am not sure what the difference is other than the ones I received have an MH on them.

The switch I am using is T85 Rocker Switch .

Print Settings

Printer Brand:

Creality

Printer: Ender 3

Rafts:

Doesn't Matter

Supports: No

How I Designed This

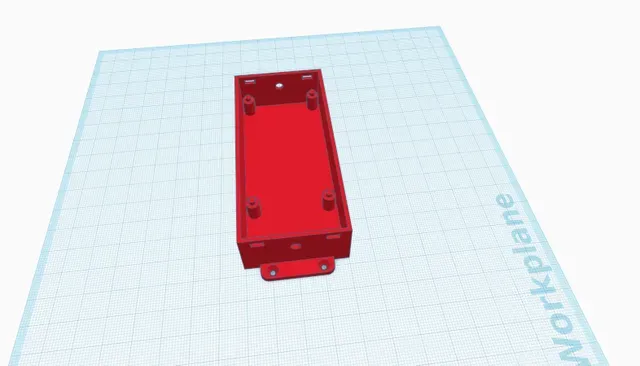

I used Tinkercad to modify/design this. Here are links to the Top and Bottom .

Category: DIY
