Stepped Lid for Radius Gauge Rugged Box

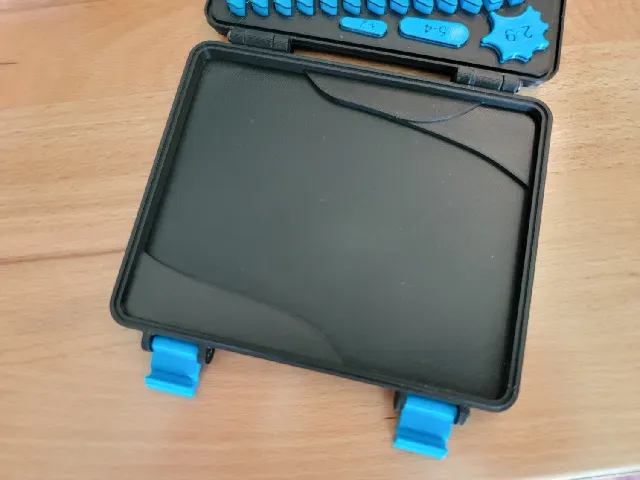

I've Combined Whity's rugged box for the radius gauges with a stepped design similar to the original from TooMuchFilament. This removes the need to use foam or compliant material to hold the gauges in place.

Other Required Files

Get the radius gauges from the original design from TooMuchFilament here: https://www.printables.com/model/165264-radius-measuring-tool

Get the rest of the rugged box parts from Whity's remix here: https://www.printables.com/model/331312-rugged-box-style-case-for-radius-gauges

Printing the Lid with Inlay

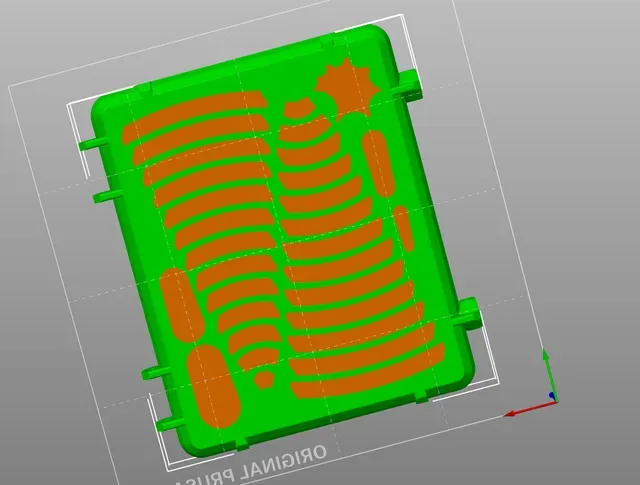

The stl file contains a merged file with both the lid and inlay. If you want to print the inlay in a different color, use the “split to objects/parts” option in your slicer and make the case “not printable”. Do not move any of the items on the build plate.

Slice and print the inlay first. This is a single layer thick at 0.2mm.

Once that is done, remove the skirt and purge line and change your filament. Invert the “printable” selection so that only the lid is printable. Slice and print the remainder of the lid.
