Orange Pi 5 Plus Case with 40mm x 10mm fan

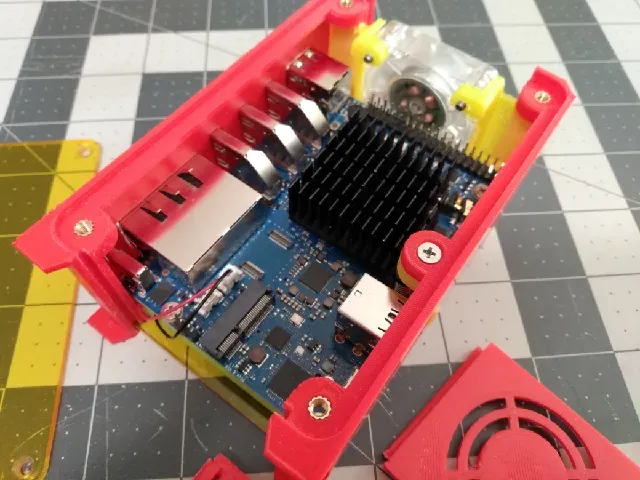

This is a case for an Orange Pi 5 Plus.

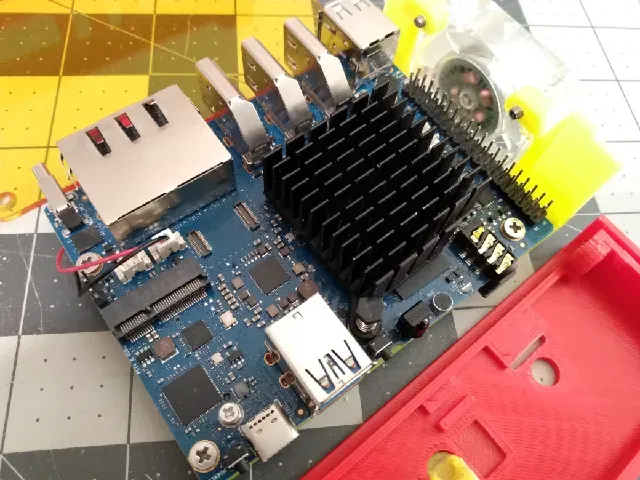

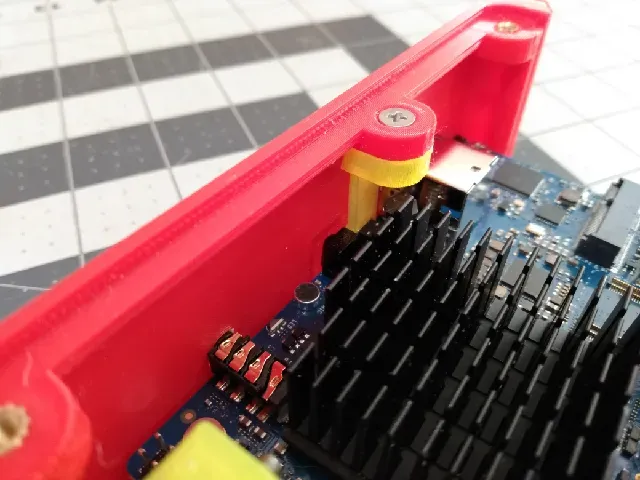

If is intended to be used with the official Aluminum Heatsink.

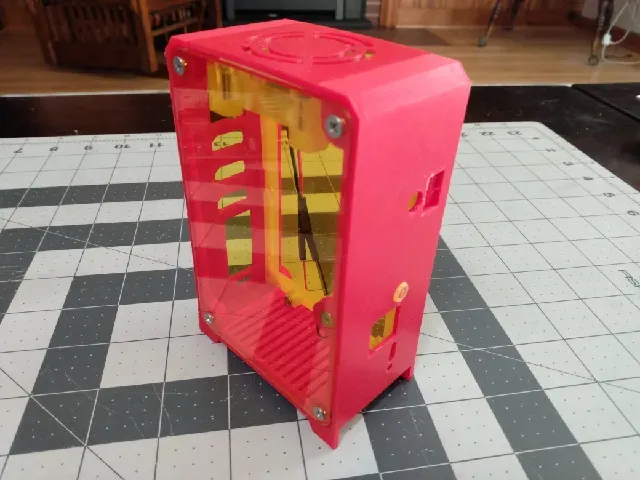

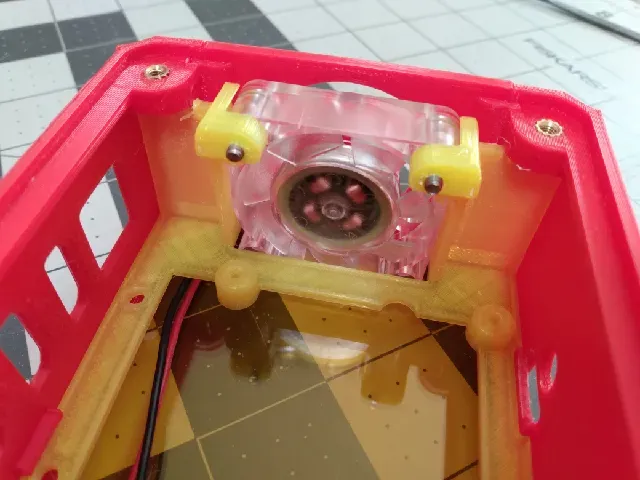

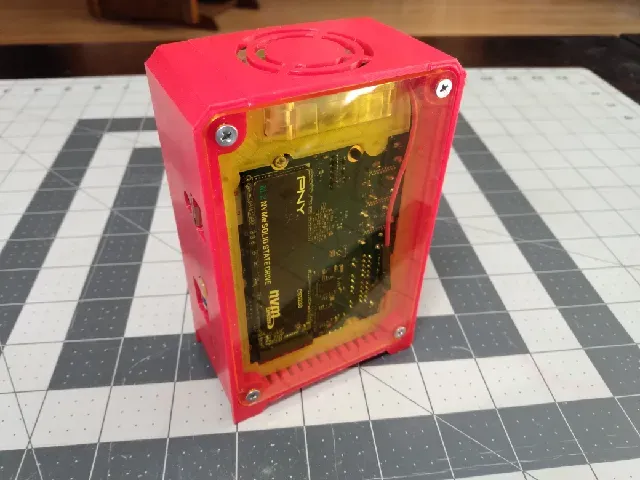

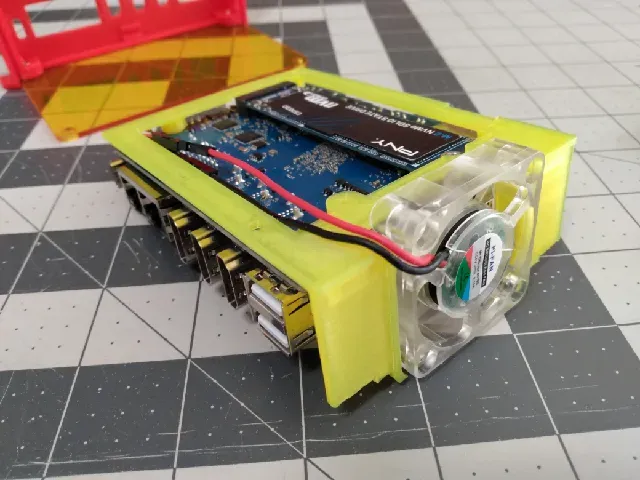

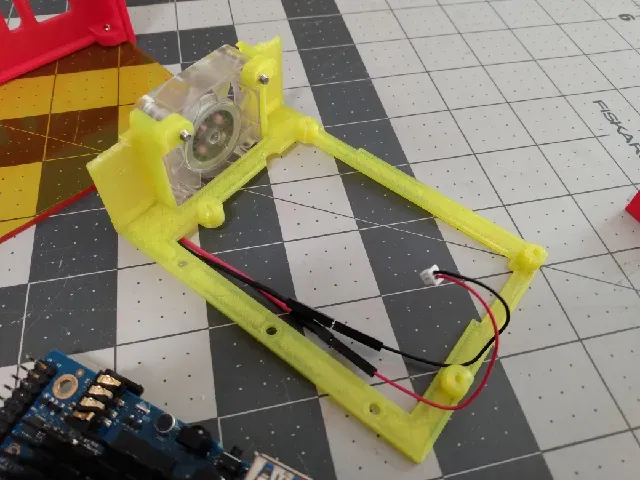

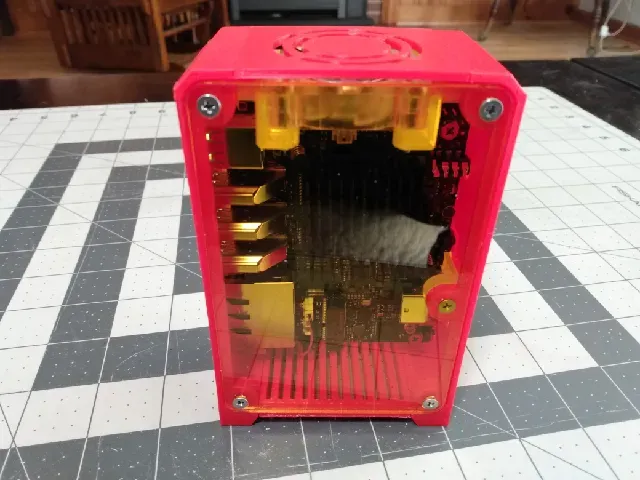

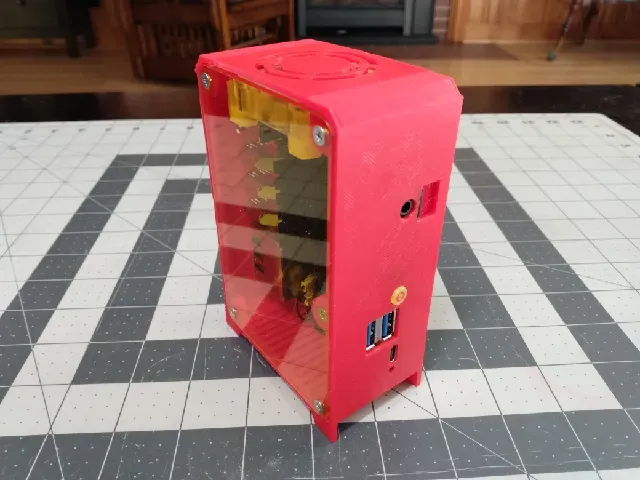

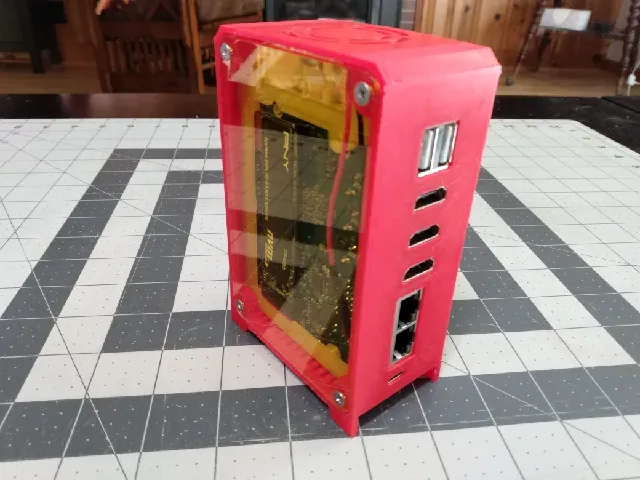

It is intended to stand vertically, with the fan at the top. With the fan oriented in such a way that it exhausts “hot” air upward out of the case. Drawing cool air in from the bottom. The fan draws air from each side of the board, for some additional cooling of the SSD.

There's an ELBOWroom variant, with just has little thin legs on the bottom. And there's a LEGroom variant that has thicker legs with a place to put 8.5mm x 2.5mm rubber feet at each corner.

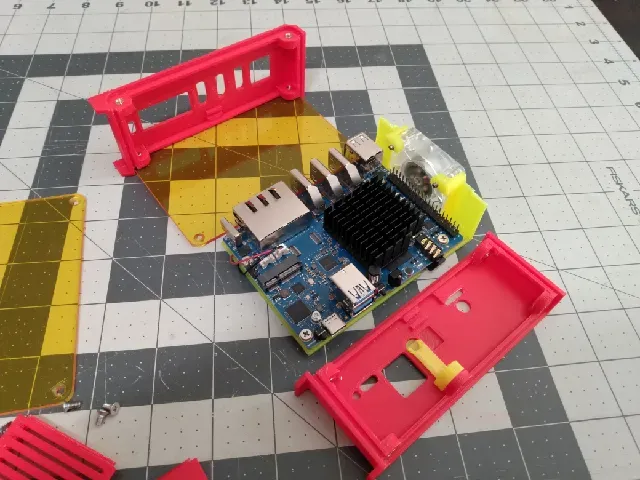

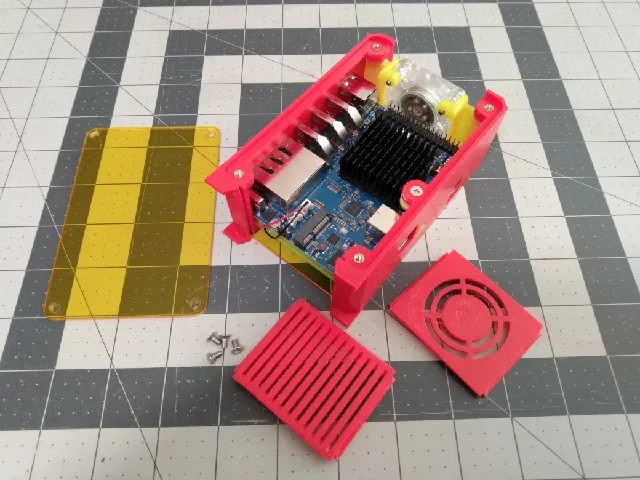

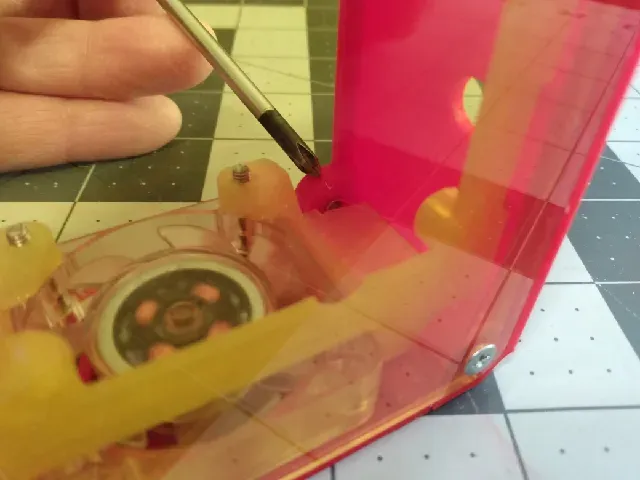

This case is intended to be assembled with m3 x 8mm machine screws, or #4 x ¼" self tapping screws.

There's a .STP file in case you want to remix or modify to use inserts.

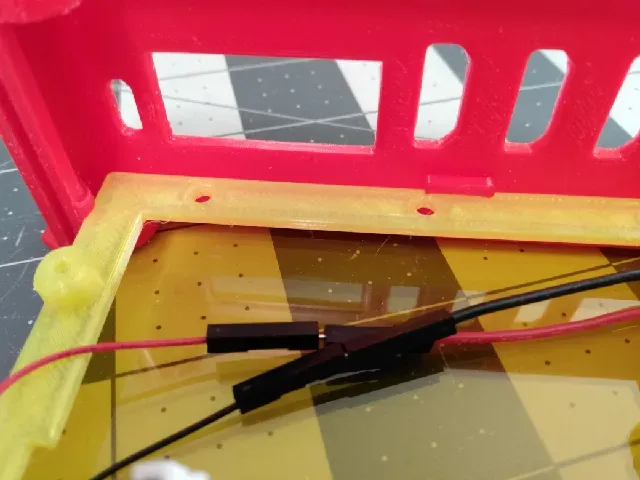

The sides which I have laser cut from acrylic can be printed.
