A simple perforated desiccant gel container for filament storage
This desiccant container is designed to sit at the bottom of a two gallon bucket to keep your filament dry. Two gallon buckets fit three rolls of filament nearly perfectly - sitting at just under 1cm, this container occupies that slim margin of leftover space. Can easily be removed for replacing or recharging your desiccant.

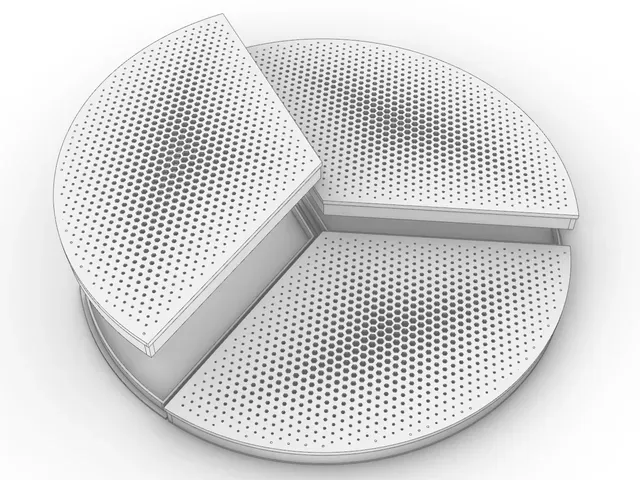

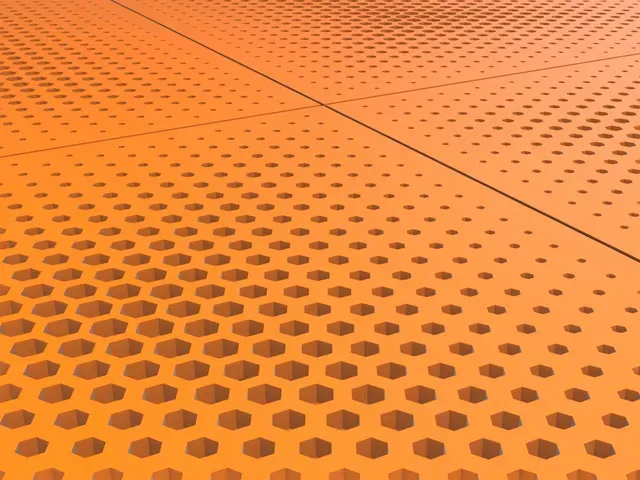

The design is comprised of two pieces. Simply fill the lower portion with some form of desiccant - whether it be rechargeable silica indicator gels or kitty litter - and place the perforated lid over top.

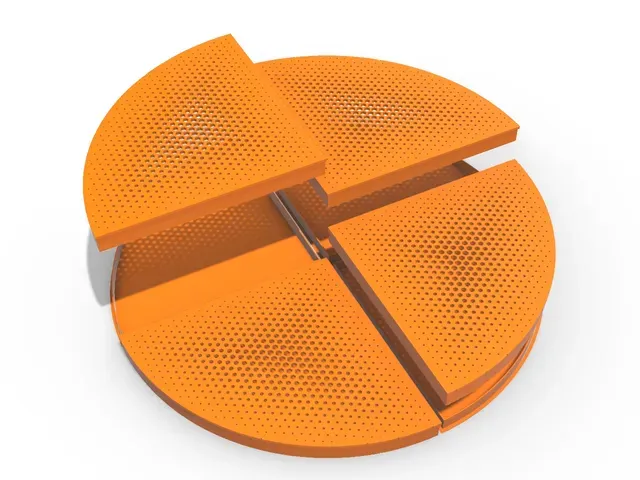

There are two version - one split in to thirds, and one split into quarters. You'll need to print either three or four copies of each part, depending on the version you choose.
Measures 10mm x 200mm D (3/8" x 7-7/8")
Note: Because 2 gallon bucket dimensions are not universal, this may not fit “perfectly.” Best practice is to measure the inside diameter of your particular bucket and scale model in the X & Y axis accordingly
