Ender 3 Pro LCD + Raspberry Pi 4 Case (Remix and STEP file)

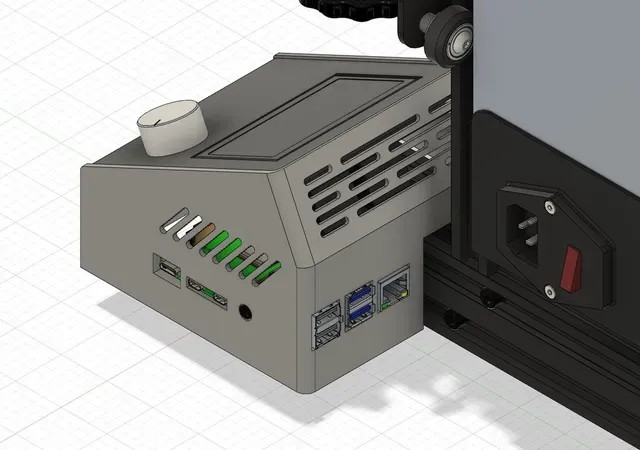

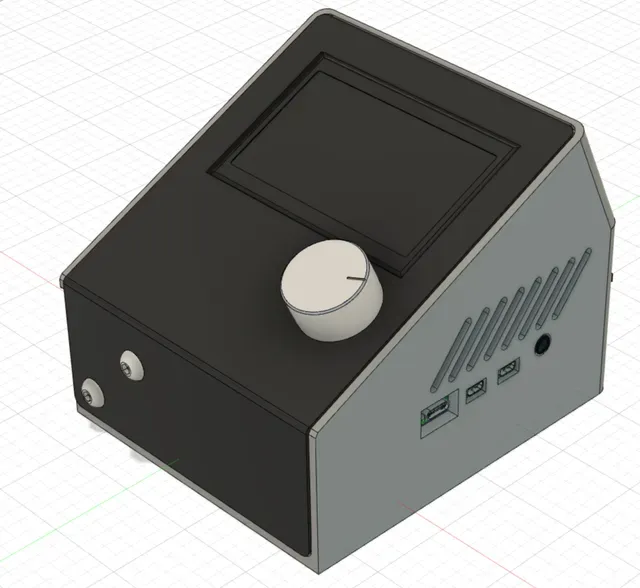

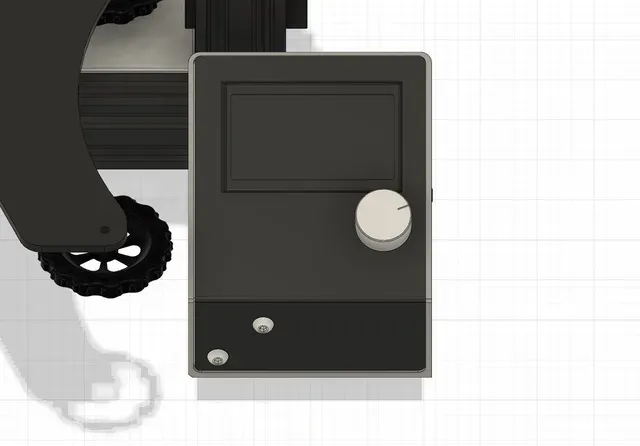

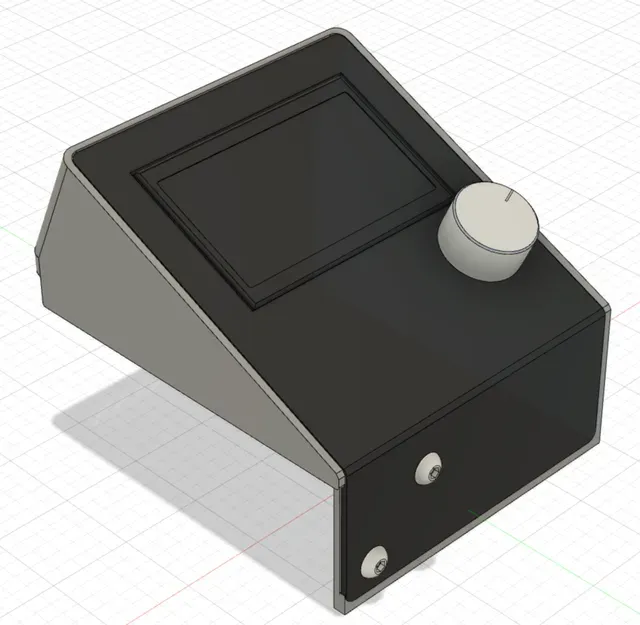

This is a quick remix of HenryCAD's case, tweaking what was already a great design with some simple Push/Pull's in Fusion 360.

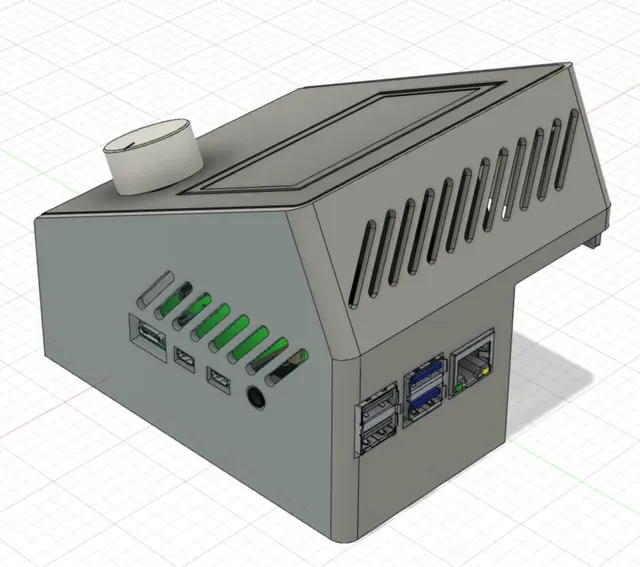

- Now fits the Raspberry Pi 4.

- Top vents altered for easier printing without supports, the originals were wide bridges.

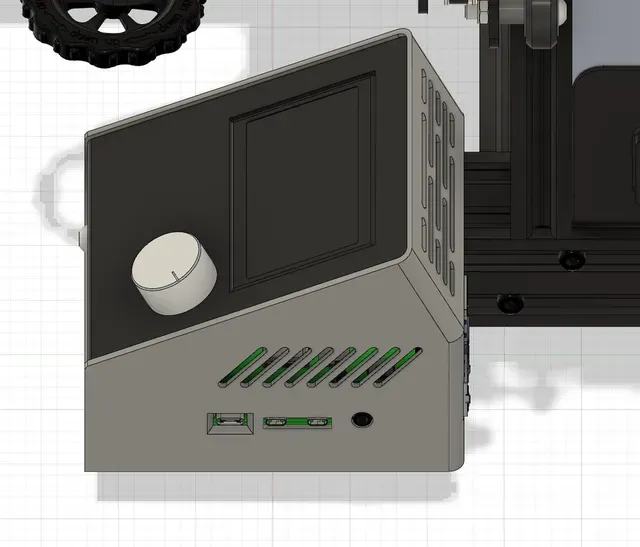

- Left front face cut to allow space for the widely used drawers.

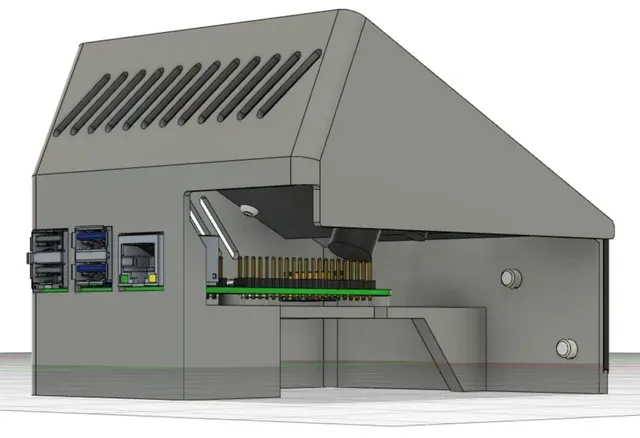

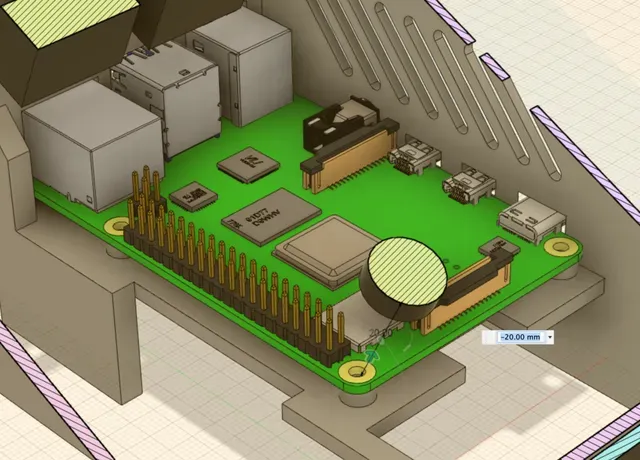

- Left rear opened a 10mm gap over the extrusion to allow for cables. Note that the Raspberry Pi has been raised by 8mm, making a 21mm tall space underneath to mount buck converters, relays, and other modules. This does bring the Raspberry Pi closer to the LCD PCB, although the best I can analyse in Fusion 360 indicates that it does not block the buzzer or the GPIO ports.

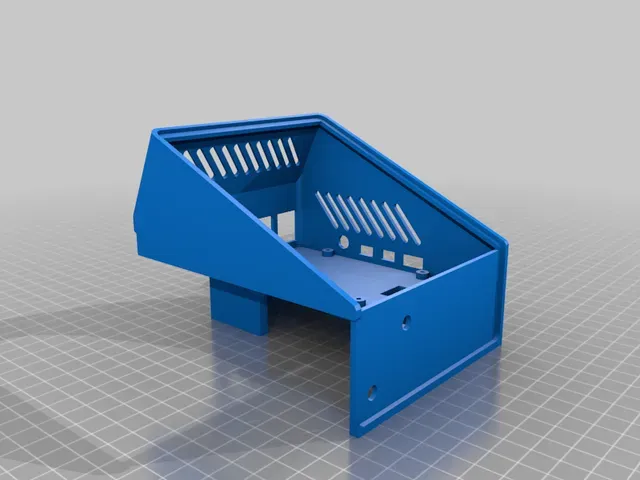

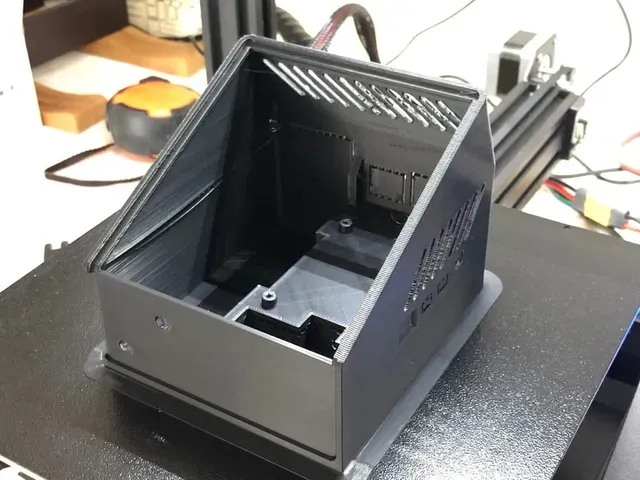

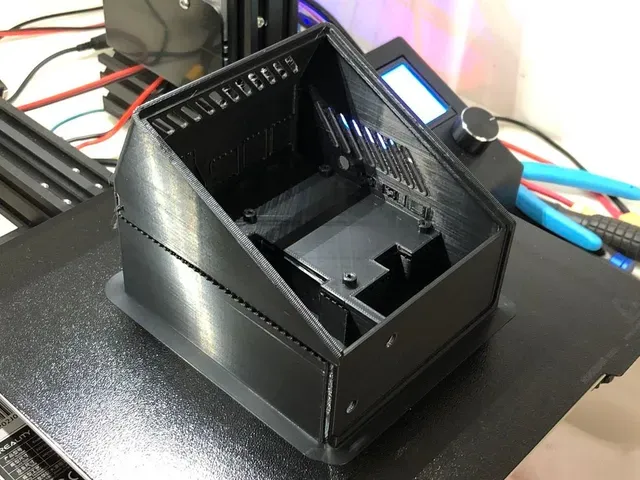

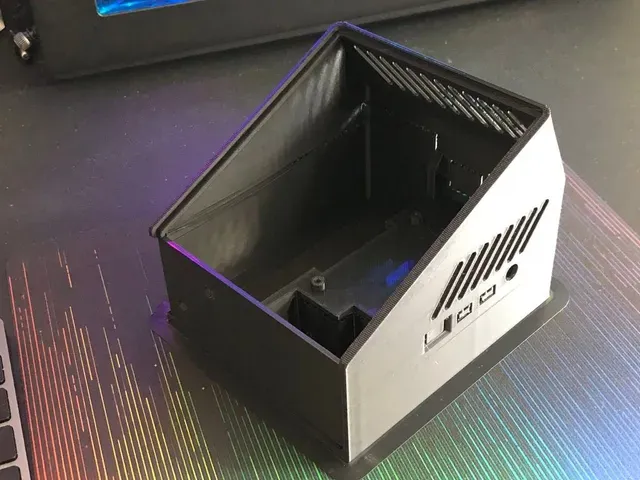

The pictures show my first print of this, it was done at 0.28mm resolution quick/fast to see how the panel fits. Even at this resolution it still came out great.

Print Settings

Printer Brand:

Creality

Printer: Ender 3 Pro

Rafts:

No

Supports: Yes

Resolution:

0.2

Infill: 20%

Filament:

Creality PLA Black Notes:

See the screenshot for slicer settings. I've printed this with a brim for adhesion. Supports "everywhere" at 85°, the vents do not need support and this means all the ports get supported.

Category: 3D Printer Parts
