Magnetic Logitech C270 corner mount for Prusa enclosure

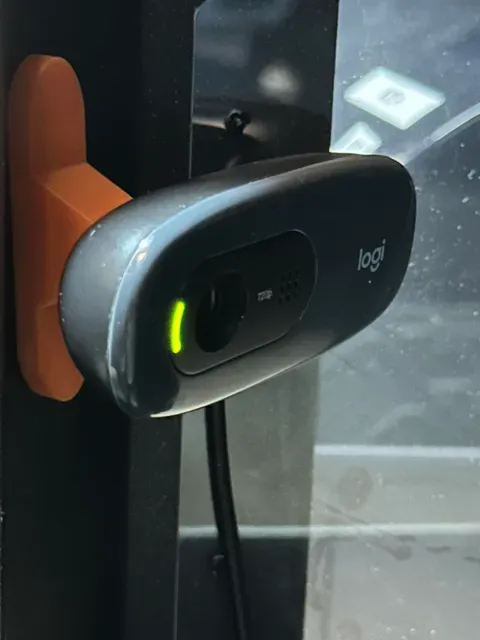

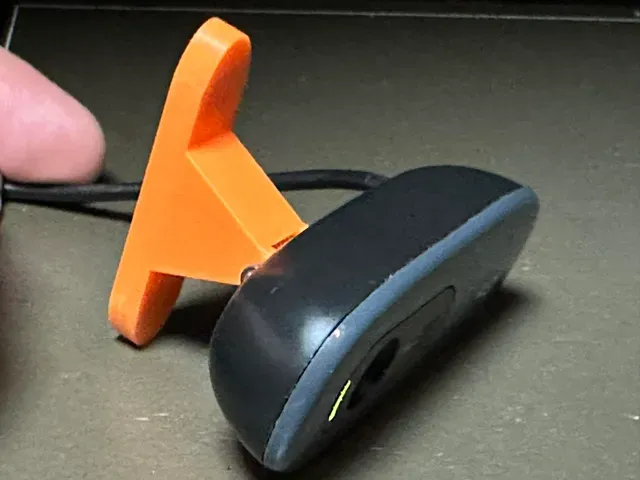

I designed this mount to be able to mount a Logitech C270 with 8x3mm magnets to the 45° surface of the left or right front corner of a Prusa enclosure. Alternative designs for printing without supports (V2) and another for ease of magnet removal or option of screw mounting (V3) in an alternative scenario.

* Two or three 8x3 magnets are press fit into the model, no glue should be required. Two magnets were adequate for me, but I have left the 3rd hole in the middle and therefore using is optional. This will likely depend on the strength of your magnets. * A M3 x 12 screw can be used without a nut or longer with a nut. The tolerances enable the screw to cut a thread not requiring a nut.

To remove the Logitech C270 webcam from the original mount: - remove the rubber caps from both sides, I used a pointed tweezers - remove the cross head screw - push the plastic pin out from the side the screw was removed, with same cross head screwdriver and long nose pliers - keep the plastic pin and rubber caps in case you want to reverse.

The printing material should ideally be slightly heat resistant to withstand enclosure temperatures - maybe PETG or ABS.
