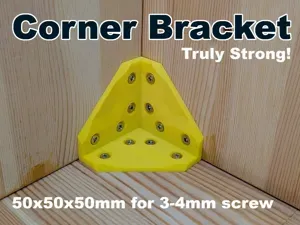

Strong Corner Brackets - multiple variants and sizes, easy to print and free

Strong and easy to print corner brackets.

Printing tips

- Use stronger materials such as ASA 275, PETG or Modified PLA (e.g. Strongman) - Set infill to 20% - Print without supports - Suggested resolution is 0.2mm Variants

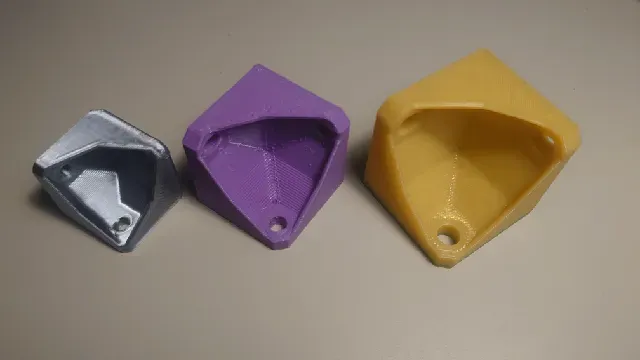

Small - 25mm

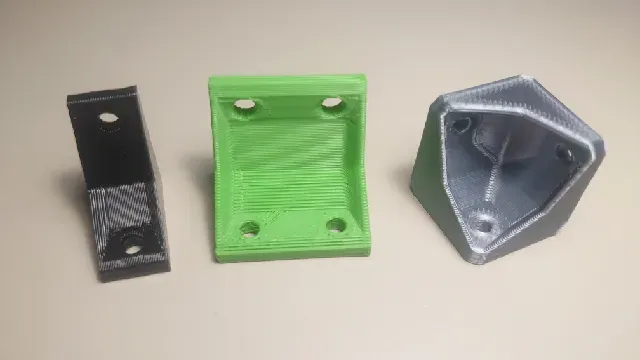

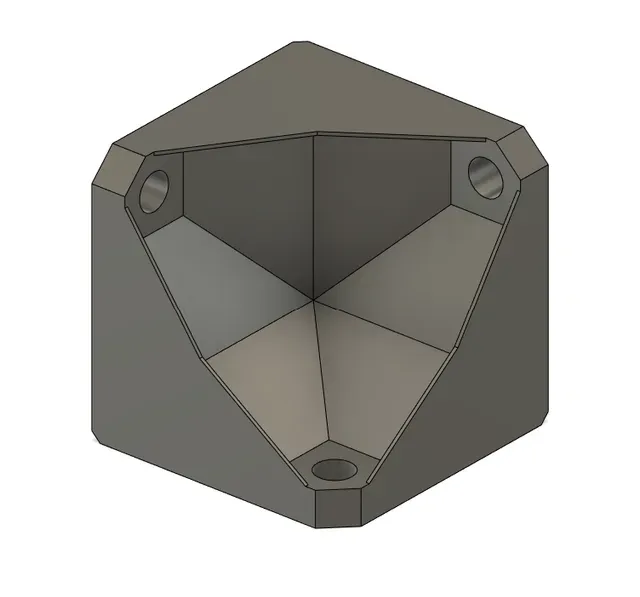

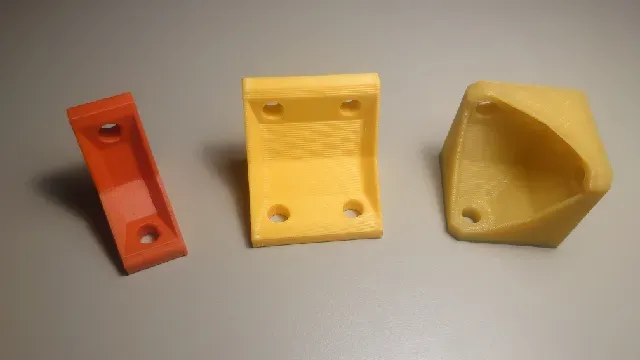

- Three corners - holes for 4mm countersunk head screw - Three corners - holes for 4mm flat head screw - Two corners - single - holes for 4mm countersunk head screw - Two corners - single - holes for 4mm flat head head screw - Two corners - double - holes for 4mm countersunk head screw - Two corners - double - holes for 4mm flat head head screw Medium - 30mm

- Three corners - holes for 5mm countersunk head screw - Three corners - holes for 5mm flat head screw - Two corners - single - holes for 5mm countersunk head screw - Two corners - single - holes for 5mm flat head screw - Two corners - double - holes for 5mm countersunk head head screw - Two corners - double - holes for 5mm flat head head screw Big - 35mm

- Three corners - holes for 6mm countersunk head screw - Three corners - holes for 6mm flat head screw - Two corners - single - holes for 6mm countersunk head screw - Two corners - single - holes for 6mm flat head screw - Two corners - double - holes for 6mm countersunk head head screw - Two corners - double - holes for 6mm flat head head screw Inspiration

I was looking for some nice brackets and I realized, that most popular Corner Brackets are published under less permissive license so I decided to make my own set, better and with more configurations and with free license.

Support me

"If you dig what I'm creating and want to support the journey, consider fueling my creativity with a virtual coffee! Your support goes a long way in helping me continue pushing the boundaries of 3D printables. Want to Buy Me a Coffee?

Enjoy your Corner Brackets and let me know, if you make one for yourself!

Designed with Autodesk Fusion 360 Personal
