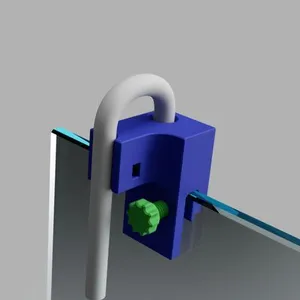

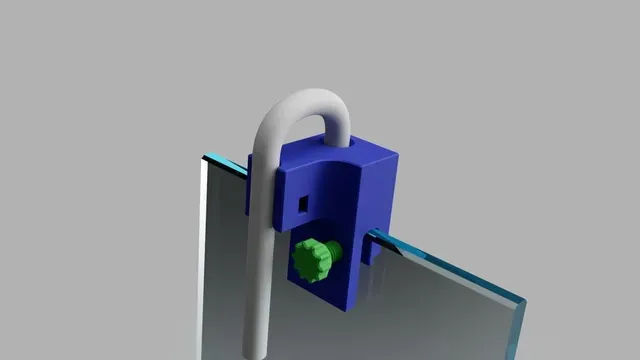

Holder for aquarium level controller hose (and narrow clearance between top glass and the sides)

I designed this because on my Dennerle Nano Cube the original hose clip of my Tunze Osmolator nano didn't fit without lifting the lid.

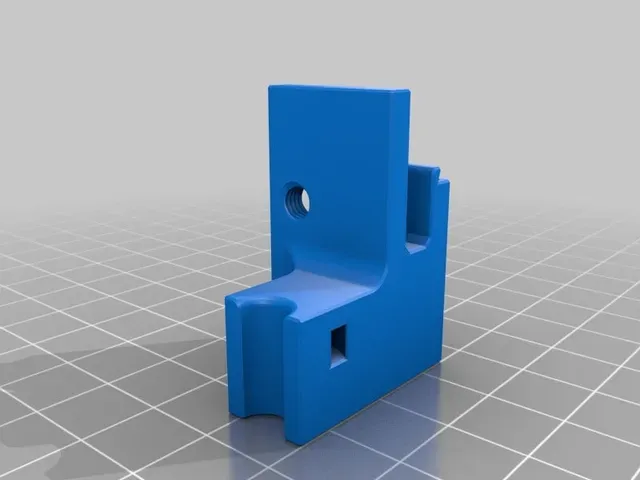

So I made a thing which needs only 5mm clearance between the top and side glass.

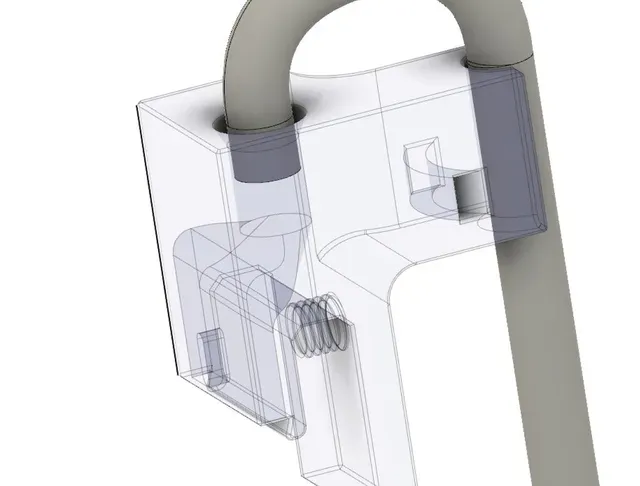

Just press fit the hose into the holder and fix it with a cable tie.

if you are frightened of the hose may fall out, you can use a drop of hot glue to keep it there.

Then use the screw to fix the assembly to the aquarium glass (max. 5.5mm)

Use the holder_in for 0.25in hose and the holder_mm for the 6mm

have fun :-)

I designed this as part of my Aquarium mod series:

published project parts so far:

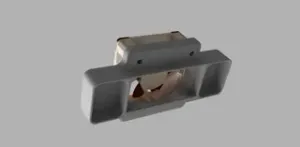

- Fluval Flex Cooling Fan Adapter 40mm

https://www.thingiverse.com/thing:3640543

- Fluval Flex Cooling Fan Adapter 80mm

https://www.thingiverse.com/thing:3671625

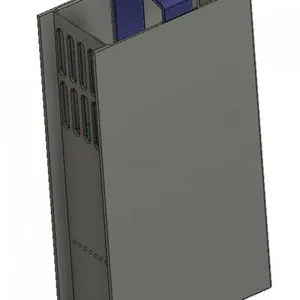

- Fluval Flex Filter Mod

https://www.thingiverse.com/thing:3639353

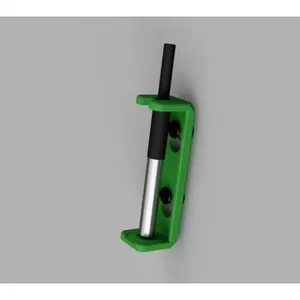

- Suction cup temperature sensor mount for DS18x20

https://www.thingiverse.com/thing:3640844

- water level controller hose clip for Fluval Flex filter compartment

https://www.thingiverse.com/thing:3675744 Print Settings

Printer Brand:

Prusa

Printer: i3 MK3

Rafts:

No

Supports: No

Resolution:

0.1 / 0.15

Infill: 40+

Filament:

N/A PETG N/A
