Vase Display Modules Version (62.5mm cell height)

Vase Display Modules Version

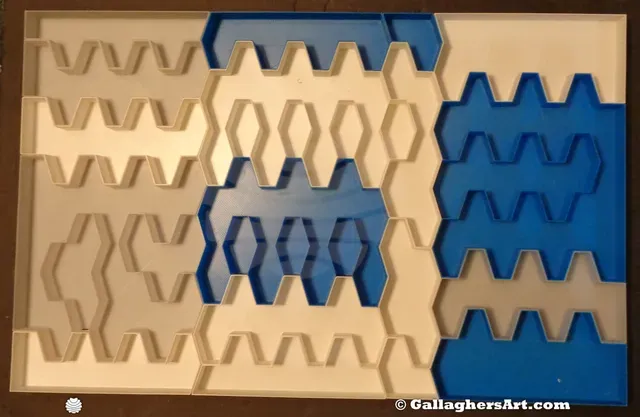

This is a version of my collectible display modules that is 3D printed in Vase mode. The STL’s are available here and more STL’s and STEP’s files are available on my website main page for all my display modules. https://gallaghersart.com/page/display_for_your_collectibles_2023

The 1st few layers are1.2mm, seems the thinnest to make it. The Vase wall is 1mm thick.

The depth of each cell is 4 Plastic brick studs or 32mm. (32+1.2 = 33.2 total 3D print height)

The total height for the 1st version of this vase mode per cell is 62.5mm.

The core source (FreeCAD) files can be obtained by supporting my work for just $1.99. With the source files you can modify all aspects of the displays with just modifying the spreadsheet. Easy peasy… for the most part. Chamfer and such have to be manually redone each time the core size changes. (FreeCAD limitations at this time). https://cults3d.com/en/3d-model/home/parametric-modular-collectible-display-case-now-with-led-back-lighting-paid-version this includes all display versions and all files.

To complete a display some parts may need to me mirrored or flipped.

I use acetone and a 3D printing Pen to Weld the parts together.

I printed in ABS, vase mode.

Enjoy!

mike
