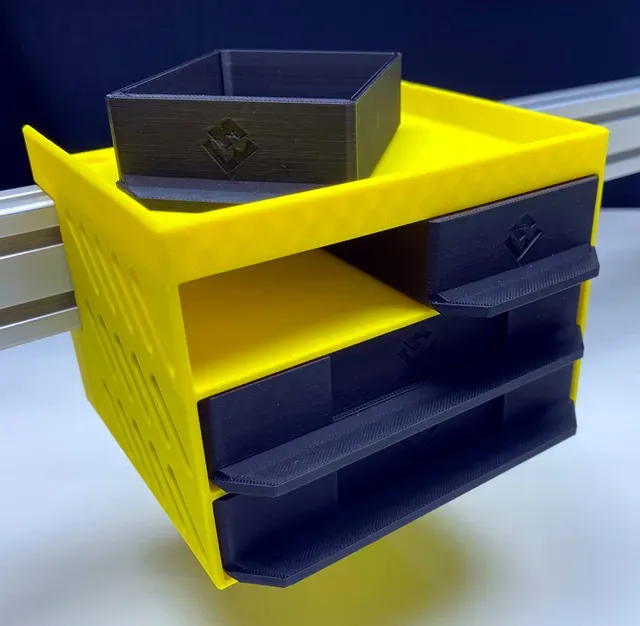

MT-SYSTEM Drawer S: Case H1/C1 (Schublade Gr. S)

This 60mm drawer case fits side by side into every size M (125mm) drawer box of the MT-SYSTEM.

What does H1/C1 mean?

The H=height of this drawer case is H1 which means that you need a drawer box that also has a H1 drawer compartment. The drawers are available from H1 till H3. The number of C=compartments is 1 which means that the drawer has 1 compartment. There are different HEIGHT versions available with various number of COMPARTMENTS.

Material: PLA/PETG Layerheight: 0.3mm or better Infill: min. 15%

HOW TO PRINT?

All MT-SYSTEM components are designed to be printed out in PLA or PETG on 02mm layer height. They are very stable but some parts like holders for heavy equipment (cordless screwdrivers) should be printed in PETG with a minimum infill of 40%.

WHAT IS IT ALL ABOUT?

HERE you can find ALL MODELS of the MT-SYSTEM we have launched so far.

We from MAKERTEAM® developed our own solutions for individual workshop installation for EVERYBODY & EVERYWHERE based on simple aluminium carrier profiles. The MT-SYSTEM consists of whole bunch of useful ideas like trays, inlays, hooks, holders and many more. Here on Printables we offer a lot of stuff for free so have a look and pic YOUR individual endowment. If you miss anything please let us know. We are always comitted to extend the system. Thanks.

MOUNTING THE MT-SYSTEM:

The MT-SYSTEM is made to be mounted to 20x40mm T-slot aluminium construction profiles (link1) by using M4 screws (link2), M4 slot nuts (link3) and sometimes also magnets (link4). If you miss anything please let us know.

Link1: https://makerteam.de/en/search?search=profile Link2: https://makerteam.de/en/search?search=Linsenschraube Link3: https://makerteam.de/en/search?search=slot+nut Link4: https://makerteam.de/en/search?search=magnet

SPECIAL ITEMS:

The MT-SYSTEM is much more than these few parts here at Printables. If you need special equipment like battery holders for FESTOOL, MAKITA and other unique stuff please visit our webshop: https://makerteam.de/3D-Druck/3D-Produkte/MT-SYSTEM/
