Reminder for Garmin or Wahoo quarter turn bike computer

Сведения о модели

Площадка
Printables
Цена
Бесплатно
Лицензия
CC-BY-NC-SA
Только некоммерческое использование с указанием автора; переделки — под той же лицензией.
Форматы
STL
  • 40 Лайки
  • 163 Загрузки
  • 2 Напечатали
  • 6 Комментарии
  • 2 381 Просмотры

Автор:cmh

Опубликована

Описание

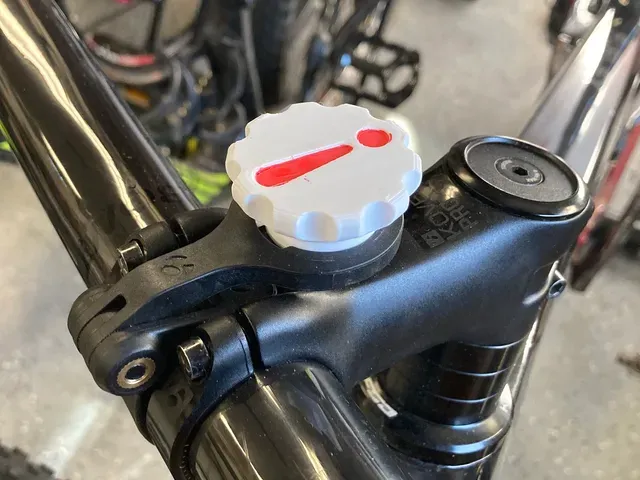

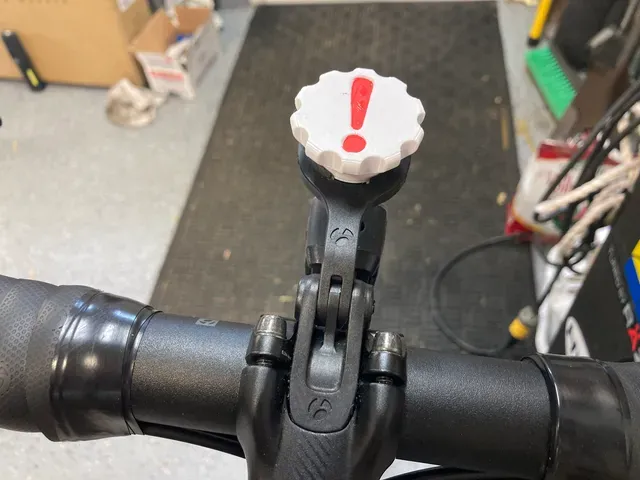

Gotta charge your bike computer and might forget to put it back on the bike before you go for a ride? Or maybe you've got one computer and several bikes and the computer might be on a different bike than you're about to take? Pop this little thing in your computer holder and maybe it'll help you remember. Note: only works if you remember to install it, but I can't help you there. So far this has worked pretty well for me.

You could do a filament change to highlight the exclamation point, but I just used ironing to get a better top surface and then used a paint pen to fill it in. A bright, contrasting color will help you remember as well, I wouldn't suggest printing this in black. (Prusament orange would be perfect!)

Note: The only difference between the two models is the rotation of the foot so that the exclamation mark is lined up right when it's installed. Otherwise the foot is identical and works well on both a Garmin and a Wahoo mount. If you don't want a big exclamation mark, there's one that is blank and will work with either mount.

Thanks to WheresWaldo's Garmin foot ( https://www.thingiverse.com/thing:656833/ ) - I stole some measurements from the STEP file and modeled everything from scratch.

For printing, fast and loose is fine. I printed at 0.3mm layer height on both the MK3S and the Mini with flawless results, and turned infill down to 15%. As mentioned before, I turned on ironing for a better top surface quality and gave up a little bit of speed, but it was worth it.
