17" White Board Hanger for Cubicle

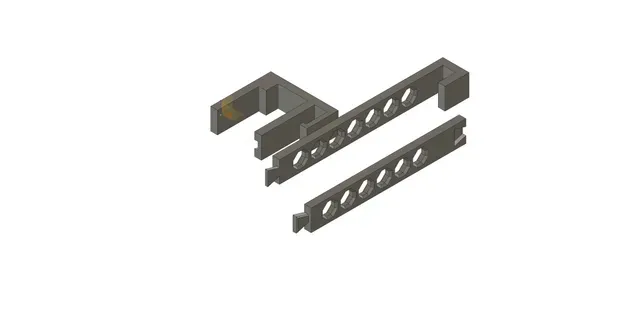

Quick and simple 3 piece design I came up with to solve a simple problem at work. Included is the updated version, as you can see in the real life picture, the top hook was originally too large.

Feel free to use however you like. If needed, I can upload other file types.

Only the Bottom Bar need support for the dove tail (it's above the print bed) and the hook.

I used the following settings for the sake of expediency. It seems to be holding up well.

15% infill at 0.2mm layer height 4 perimeters 5 layers top and bottom

I also used Quick set epoxy on the dovetails just for extra peace of mind. A little two part epoxy on the faces and clamped using binder clips while it dried. I do not believe it was need, but I did not want this thing ever coming apart.
