Pi Zero/Zero2 3.5 Inch Touch Screen Display Case

Raspberry Pi 0/02 3.5 inch Touchscreen Case

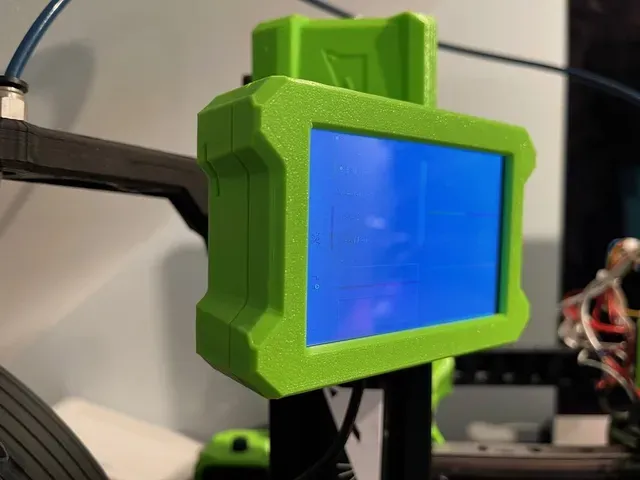

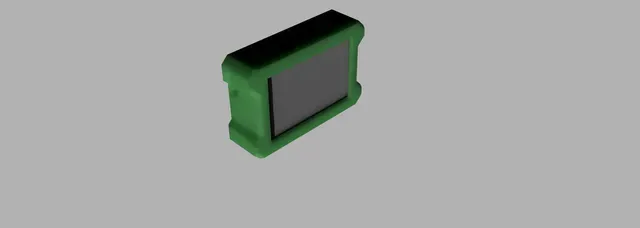

My take on a case for a Raspberry Pi 0 with a 3.5-inch touchscreen case. I have modeled the styling on the Ratrig vMinion styling.

This is compatible with Generic 3.5 touch screens such as those you can buy on Ali Express and Amazon (Models MHS3.5 or 3.5 inch RPI Display. It will not work with the WaveShare 3.5 display as WaveShare mount the display panel in a different orientation..

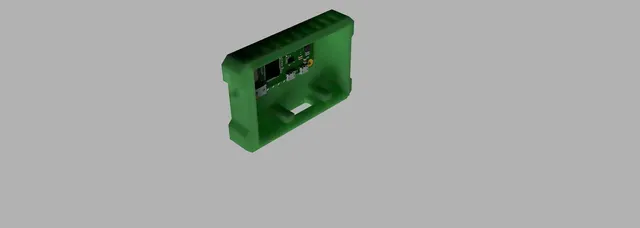

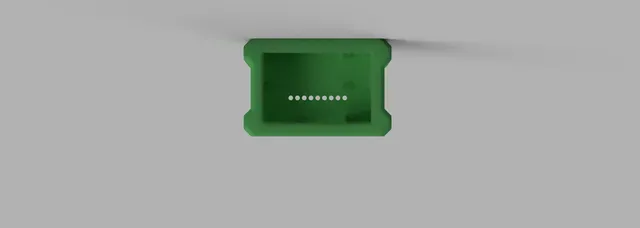

There are mounting holes on the back case for 2040 & 3060 profiles, M3 size. The Pi Mount uses M2 Heat Inserts, if there is any demand I can change these to be self-tapping.

Fusion 360 File Included

Printing

Lay the pieces flat on the build plate, no supports are required.
