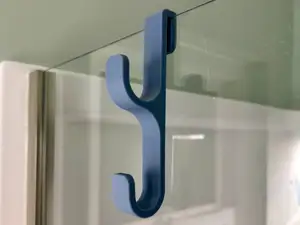

Parametric Towel Hanger - Shower hanger for shower glass

This parametric towel hook - shower hanger is designed to slot over glass enclosures. Base model has a 10mm “slot” so as to fit my shower glass.

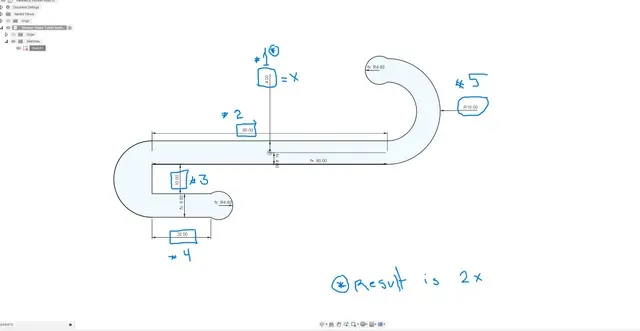

Created in Fusion 360. There are 5 parameters that can be adjusted - diagram included.

#1 - Controls the overall width/thickness of the hanger. It also dictates the radius of the pressure points at the end of each hook so as to maintain scale.

- NOTE result will be twice the integer used in #1.

#2 - Controls length of the “stem” linking the hooks at each end.

#3 - Controls width of the slot that fits over the shower glass. I printed mine with a .4 tolerance and it fits perfectly.

#4 - Controls the length of stem on the slot-side of the hanger.

#5 - Controls the size/radius of the towel hook.

- I have only printed in PLA+ with 0.4 hotend in standard settings at 0.2 layer height. Works perfectly. - Perimeters more important than infill. I used 4-6 perimeters and 15-20 infill. Thin hangers can be all walls.
