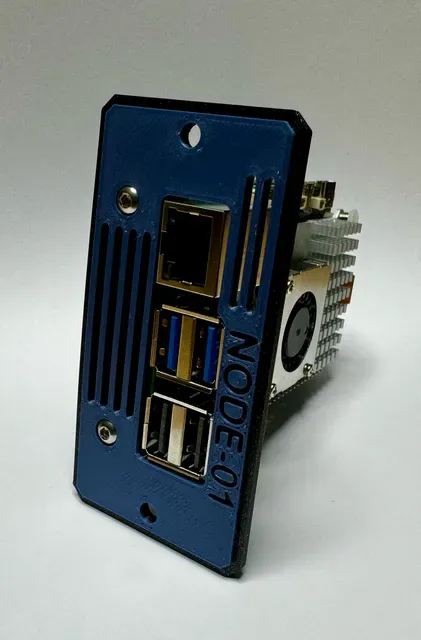

Rack Mount Adapter for Raspberry Pi5 with Pineberry Pi HatDrive! Bottom

This allows you to mount a Raspberry Pi5 with an NVME on the DAP 2 HE modular 2U rack system. This uses the Pineberry Pi HatDrive! Bottom to connect an NVME to the Pi5.

You will need: - 8x M2.5 inserts - 2x M3 inserts - 2x M3x8mm screws - Original screws from the HatDrive! Bottom package

Print with default settings, no supports, 15% infill. You can use 100% infill if you want but it is not needed.

To get a dual-color print just let the slicer do a color change at 2mm height.

You can use PrusaSlicer to embed a text on the front. Just put the text on the desired position and let it cut 1mm deep.

Inspired by the Rack Mount Adapter for Raspi 2 and 3 for modular 19" 2U system by tkramm
