Voron V0 first layer test print

A quick print to test the bed level for the Voron V0 family of printers.

I'm currently building a V0 and wanted to do a first layer test print in the same style as the Prusa Research bed level test print.

So I quickly created a simple test print in fusion.

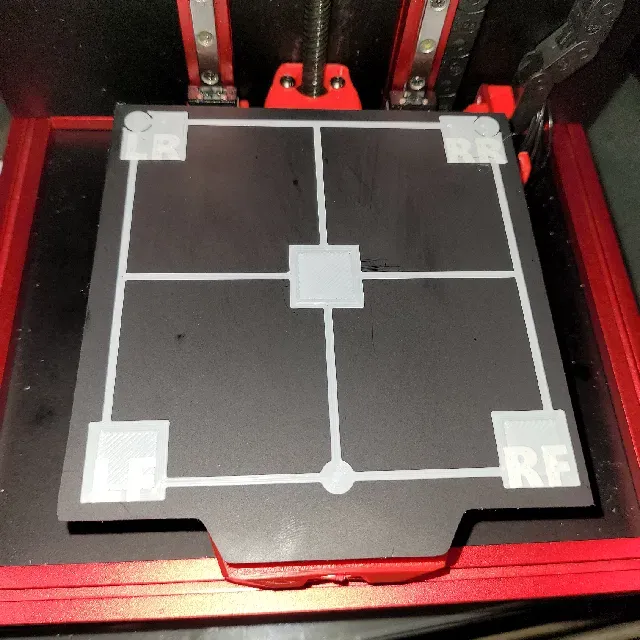

The Print is 118mm x 118mm this leaves a 1mm gap between all print bed borders.

And as the print is 118x118 you could just use it on you printer that has a similar size of course.

The print is marked for a quick diagnosis of where the bed is to high / low.:

LF : Left Front

RF : Right Front

LR : Left Rear

RR : Right Rear

The circles mark where adjustment screws for the bed are located.

The main part of the print is 0.2mm high , the letters are 0.4mm high.

Advised print settings :

Layer height : 0.2mm

Nozzle 0.4mm
