Raspberry Pi 5 & PineberryPi HatDrive! Bottom Case

Update!

While I have internet connection, I'm uploading an updated, modified, and tested version. All credit goes to @Zahg ! Huge thanks for this!

===========================================

Original case needs some adjustments. Check out comments and do not print it for now!

There'a a remix you can use https://www.printables.com/model/707638-raspberry-pi-5-pineberrypi-hatdrive-bottom-case-re

Unfortunately I'll be away till mid-march. I'll update this to fit everything properly once I'm back!

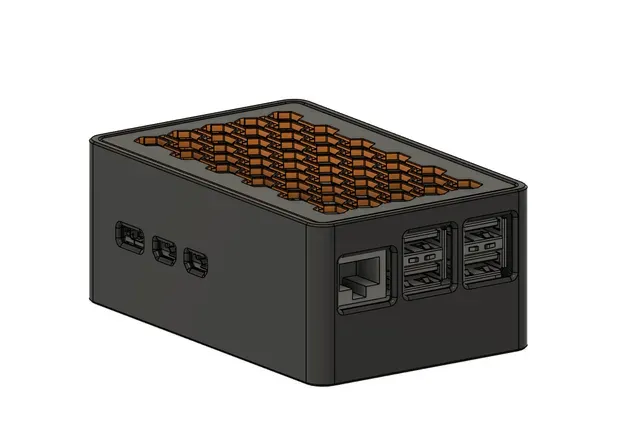

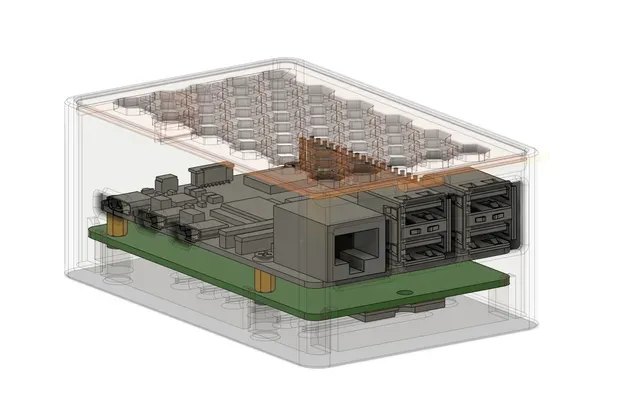

I've decided to remodel my favorite RPI case made by Stamos from scratch and adapt it for the Raspberry Pi 5 with NVMe HatDrive! Bottom from PineberryPi

https://pineberrypi.com/products/hatdrive-bottom-2230-2242-2280-for-rpi5

I still haven't got my HatDrive! Bottom, so I haven't fully tested this. Thus there might be some small adjustments in the future.

Print at your own risk! :)

Edit.

Well it seems I won't get my HatDrive before leaving for 2 months trip, so as requested I'm posting step files for tinkering, fixing, remixing, and adapting it for the best fit.

You can get the HatDrive models here https://docs.pineberrypi.com/resources-3d-models

Also, huge thanks to @Zhag for being the first soul to print this and for all the comments. :)
