Smart Orbiter v3.0 for Ender 7

Description:

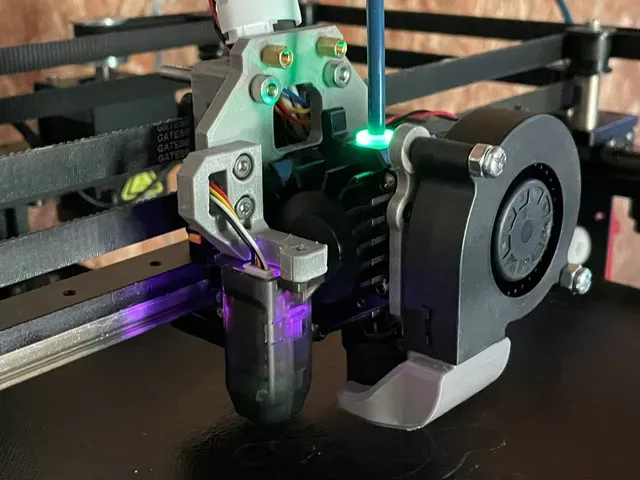

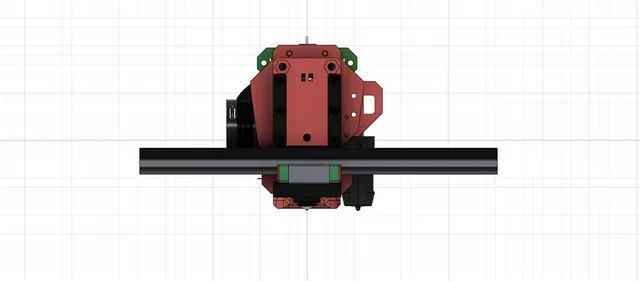

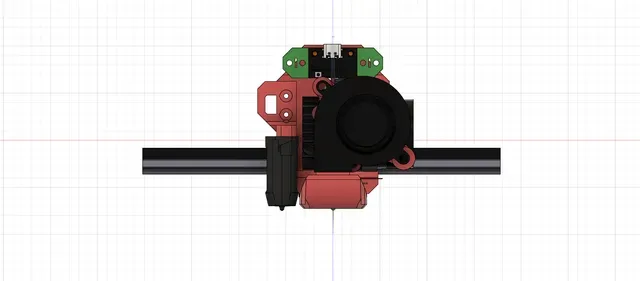

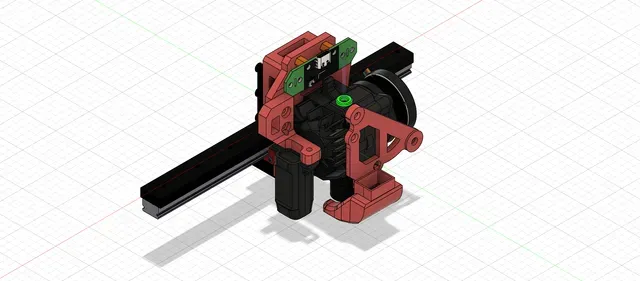

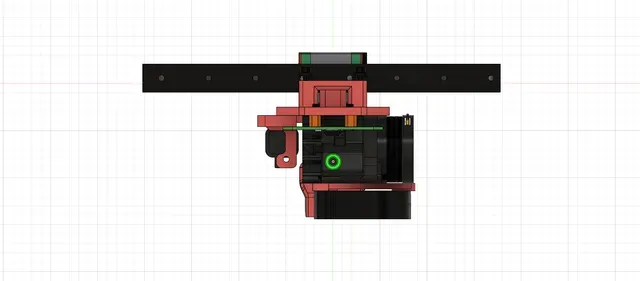

Hello 3D printing enthusiasts. I present to you my Smart Orbiter v3 extruder adapter designed specifically for the Creality Ender 7. I faced the challenging task of maximizing space on the Y axis, reducing mounting carriage dimensions to minimize loss of print area. Also added is a mount for the portable Input Shaper device. This adapter is not only efficient but also functional, improving the capacity of my 3D printer.

Smart Orbiter v3.0 – ORBITER PROJECTS

Updates:

- 01/01/24: Errors and tolerances corrected - 13/02/24: More strength, new anchor point, corrected tolerances Accessories:

Smart Orbiter v3 - Detachable front 5015 fan

Printing Instructions:

Recommended Materials: I would suggest using PETG or an even stronger material to ensure durability and optimal performance.

Print Parameters:

- Layer Height: 0.2 mm - Filling: I opted for 100% solid filling to ensure the strength of the adapter.

Tolerances:

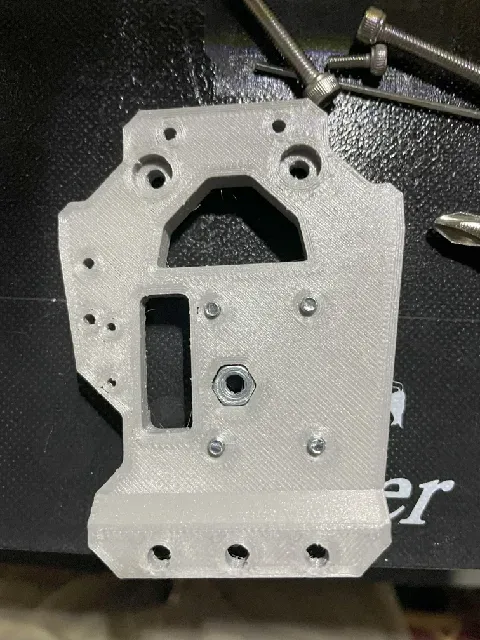

It is crucial to check tolerances during the printing process to ensure accurate fit of the anchor screws. Make sure the holes are well defined and the screws fit correctly to ensure the stability of the adapter.

Required hardware:

- 4x M4 L20mm screw - 4x M4 nuts - 6x M3 L8mm screw - 2x M3 L5mm hex male to female standoffs (for the input shape) - Orginal endstop screws - Original linear rail mounter

**Assembly:**
