Gladiator Geartrack Heavy Duty Cylinder Hanger (gearwall) Hook

https://www.thingiverse.com/thing:2268473 is a fantastic Gladiator Geartrack Gearwall hook, the best I've found on Thingiverse and this remix does not try to improve it. Rather it adapts the solid connection to a different type of hanging need -- heavy cylindrical tools like a crowbar.

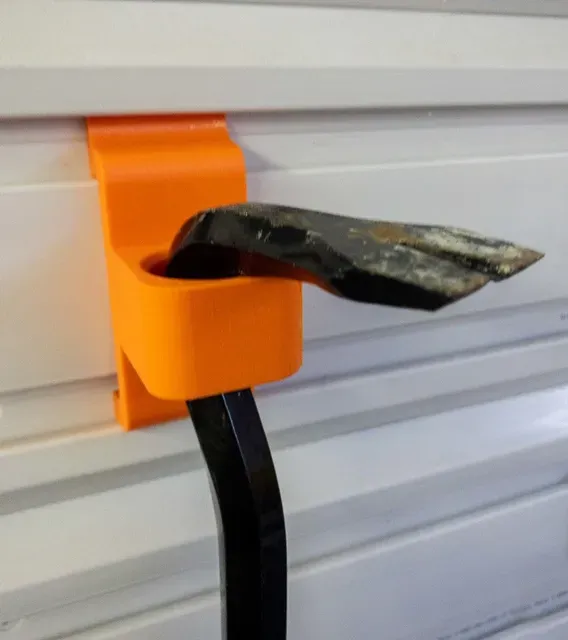

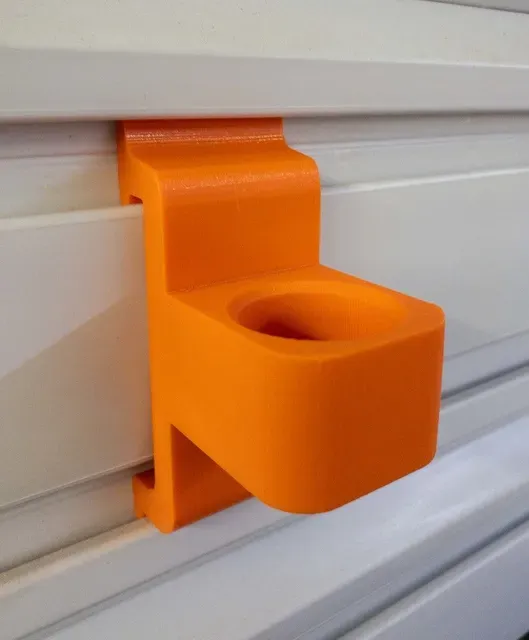

Pictured here in PETG, this is a very solid way to hang your heavy items.

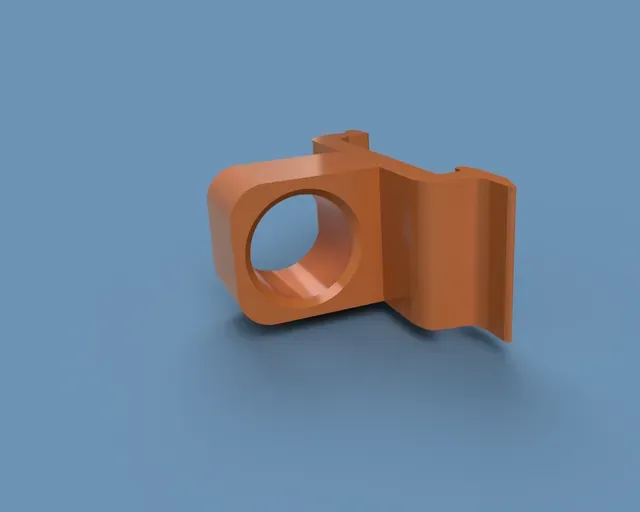

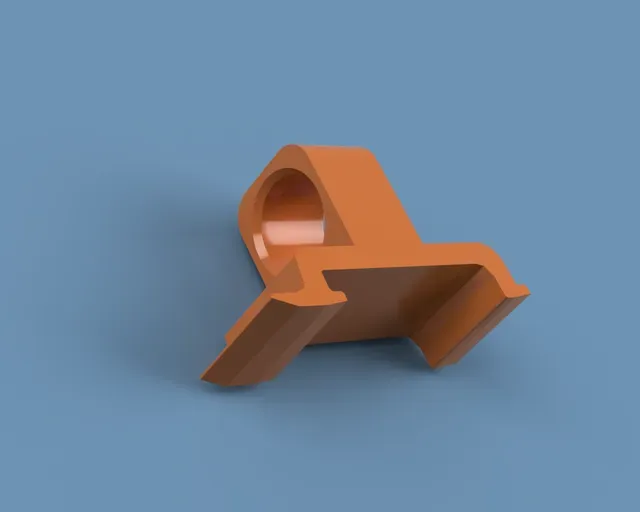

The hole is 30MM (1.181 inches) which should fit your mid-size crow-bar or other heavy item. Measure the widest part of the pole which is often at the bottom in the pry area.

Mounts to the Gladiator Geartrack system.

Print Settings

Printer Brand:

Prusa

Printer:

I3 MK3S

Rafts:

No

Supports:

Yes

Resolution:

200

Infill:

18

Filament: Hatchbox PETG Orange

Notes:

Print laying down on side.

PLA will work fine. Increase/decrease the infil to taste.

I recommend adding a support block to the inside of the hole to help with the overhang. If you print in PETG use pliers and a small screwdriver to remove the infill.

Category: Organization
