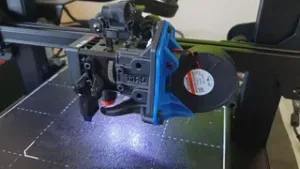

Anycubic Kobra/Vyper (including Kobra Max) Biqu H2 V2S Revo Mount

Anycubic Kobra/Vyper (fist generation) Biqu H2 V2S Revo mount. This is designed to slide onto the existing manufacturer hot end mount, and be secured using the existing mounting holes and hardware (screws).

It's overdue for a revision, however will enable those interested in mounting the Biqu H2 V2S Revo extruder to the existing x carriage of the machine to get up, running and printing (so much so, that I have not bothered to update the model since my initial print - and my Kobra Max is running Klipper, BTT SKR3 EZ control board, BL touch, running 3500 acceleration without issue.

The ‘bottom’ shelf provides some additional support for the extruder, while the top ‘verandah’ allowed me to mount some cable chain for routing the wires.

Printed in ABS, using a raft (supports may work too) for the face of the model with the protruding mounting holes.

Will provide some additional pictures once mounted.
