MINI - US$ Coin Sorting Vault

This is the smaller version. If you want to print the US$ Coin Sorting Vault on the Prusa MK4 , you can find it here .

Rocco's Coin Sorting Vault is an absolute eye-catcher! Great design and perfect execution.

Until a few weeks ago, I printed everything on the Prusa Mini. Now, I also have a Prusa MK4. Back then, I couldn't print some models due to their size and was often very disappointed. Therefore, I've created a printable version of the US$ Coin Sorting Vault specifically for Prusa Mini owners here.

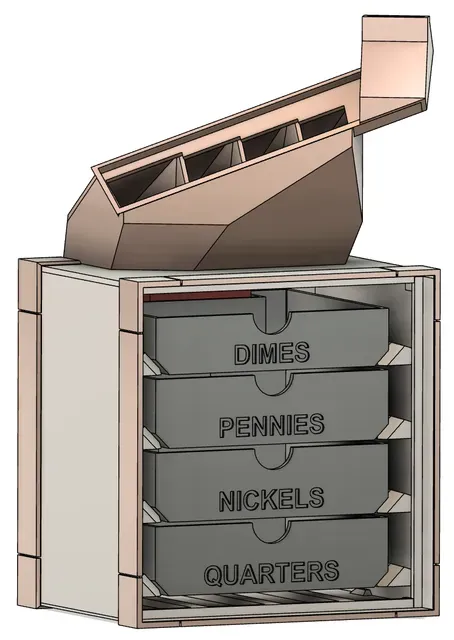

The MINI version looks almost identical. The sorting functionality is exactly the same.

What parts do you need for that?

I didn't have to modify some parts of the original versions (Rocco's bigger US$ original and my EURO MINI original). Therefore, you won't find them here, but rather with the originals.

Therefore, in addition to the parts listed here for the US$ MINI version , you still need the following to download and print:

[ A ] Parts from my EURO MINI original: see: https://www.printables.com/de/model/686197-mini-euro-coin-sorting-vault/files

- Jamb MINI.stl - Door Frame Cap MINI.stl - Door Frame MINI.stl - Top Bolt MINI x 2.stl - Site Bolt MINI x 2.stl - Hinge Strap MINI x 2.stl [ B ] Parts from Rocco's bigger US$ original: see: https://www.printables.com/de/model/655452-coin-sorting-vault/files

- Sorter Frame.stl - Coin Slot Taller Test.stl - Coin Sled.stl - Gear Core x 4.stl - Gear Teeth x 4.stl [ C ] One of the two handle alternatives (whichever you prefer): see: https://www.printables.com/de/model/676720-alternative-handle-for-coin-sorting-vault OR https://www.printables.com/de/model/655452-coin-sorting-vault/files

[ D ] Two dowles for the vault door: see: https://www.printables.com/de/model/673752-dowels-for-coin-sorting-vault/files

[ E ] Five bearings: 22mm outer diameter, 8mm inner diameter, 7mm high You can buy them for little money (Example: amazon ) or you can print them. Here at printables.com, some well-rated bearings are listed. I haven't tried them myself; I bought them.

[ Optional ] Extensions If you like, you can later expand the model. The following extensions fit 1:1 on the MINI version as well:

- Padlock frame - Coin Lift

Printing information

Read the following information carefully. You use quite a lot of filament for this model. It would be a shame if you produce waste because you haven't read important information.

Generaly

- For all parts, I use 10% Gyroid infill . - I use a 0.2mm layer height for all parts. - All stl files are correctly aligned on the print bed. Additional settings for the individual parts

- USD Box MINI Frame … Corner / Long / Short

- Infill: 100% - Side Bolt MINI

- Support: see the following pictures

Assembly instructions

- Rocco has explained the assembly of the vault door perfectly. Please watch his video tutorial .

- For the assembly of the USD Box MINI , please read the attached PDF document.

I am looking forward to your Makes! :-)

If you like this design, feel free to check out my others here .
