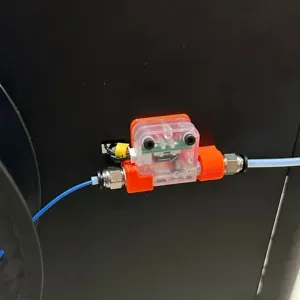

Kingroon KLP1 filament sensor mod

I do not own a Kingroon KLP1 by myself but a friend does. As he had issues with his filament sensor on the KLP1 and wanted to be able to connect his Drybox directly to the printer if needed, we designed this upgrade.

There are several versions available, depending on your pneumatic connector size:

Mod Thread size

KINGROON_KLP1_filament_sensor_mod_01 M10 x 1.5mm

KINGROON_KLP1_filament_sensor_mod_02 M10 x 1.0mm

Part should fit like a glove but if you face issues, please let me know. More than happy to help you out.

Printed in Prusa PETG, printing parameters do not really matter, as there should not be high stress on the part. Depending on your printers accuracy you might want to print the part standing with supports enabled to have a cleaner thread.

You will need slightly longer screws as the upgrade will add up to the thickness of the sensor.

Soon I will upload a 3rd version for the smaller M6 threaded pneumatic connectors later as i need to print and test fit first.

UPDATE 01 on 09/01/2024

- Renamed V1 with M10x1.5 thread to KINGROON_KLP1_filament_sensor_mod_01 - Added additional version KINGROON_KLP1_filament_sensor_mod_02 with M10x1 thread - Updated Description

If it is helpful for you, please leave a like and upload a make. Appreciate it.

CHEERS and HAPPY PRINTING
