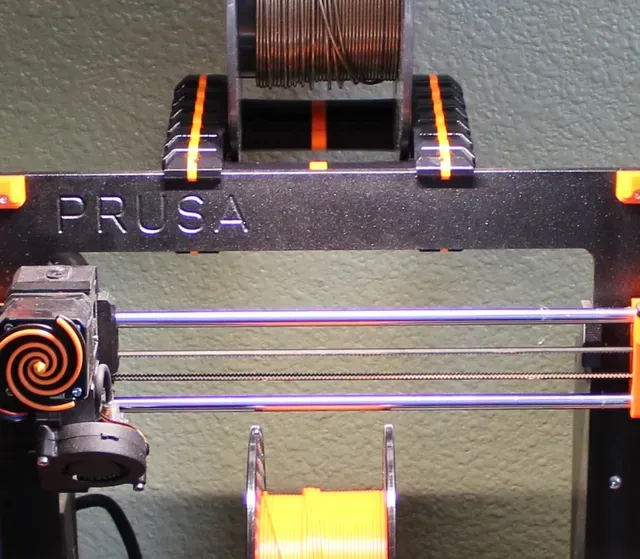

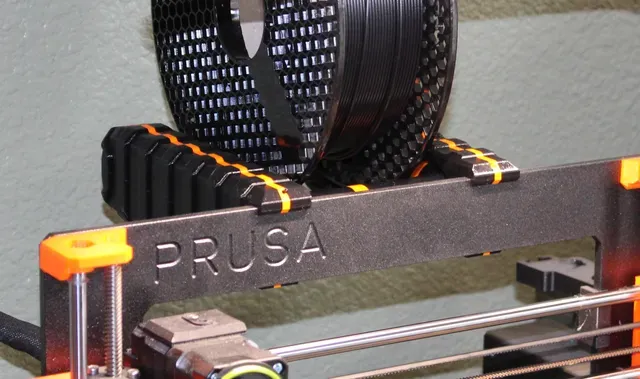

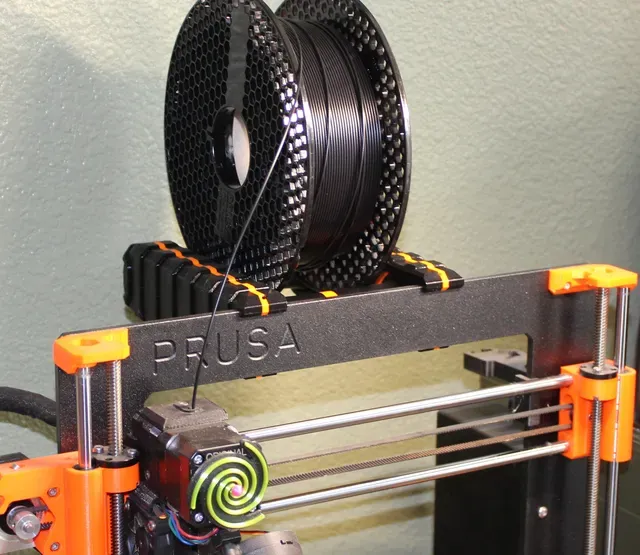

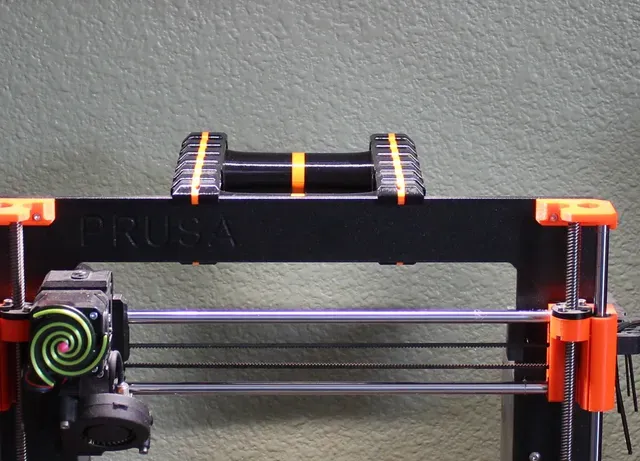

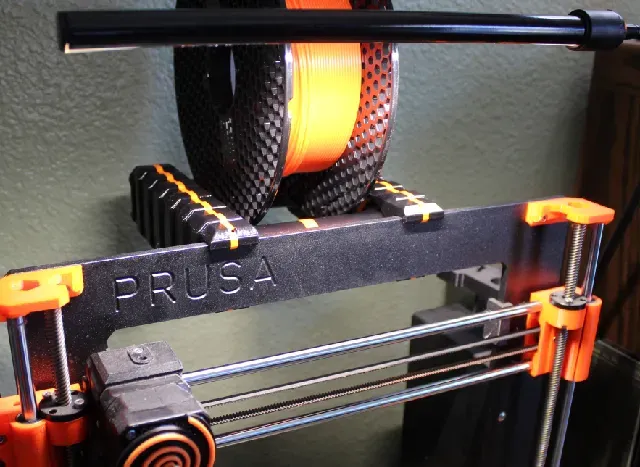

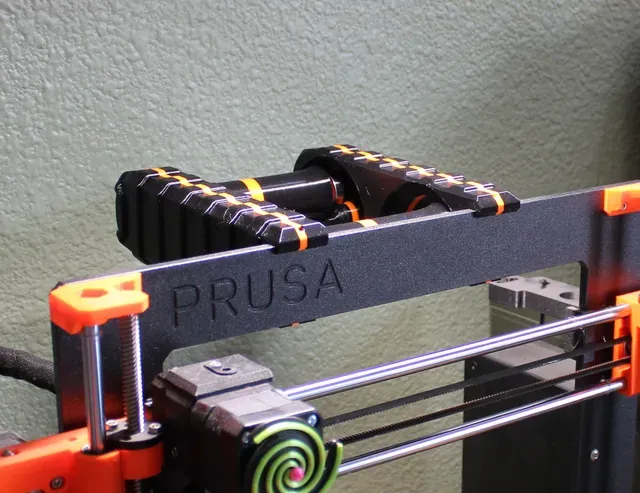

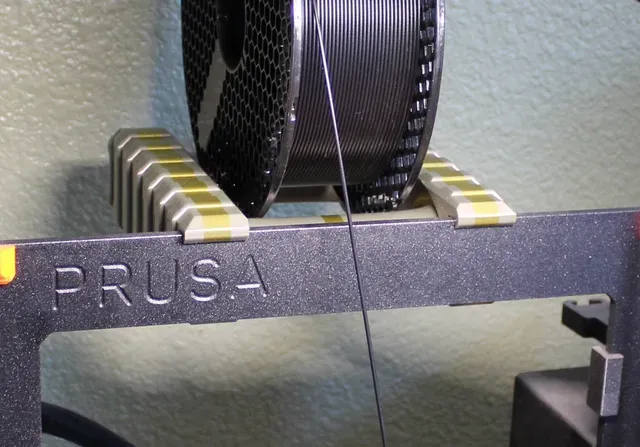

Spool Holder - No Vibration - Top-Mount

This is a TUSH2 style filament cradle that eliminates the vibration caused by the spool rocking. Provides just enough resistance to roll smoothly under all condition. I provided the gcode for both a striped version and a solid color version. The 3mf will have the color changes but feel free to make it your own.

Requires 4 (608) Skateboard Bearings (22x7mm)

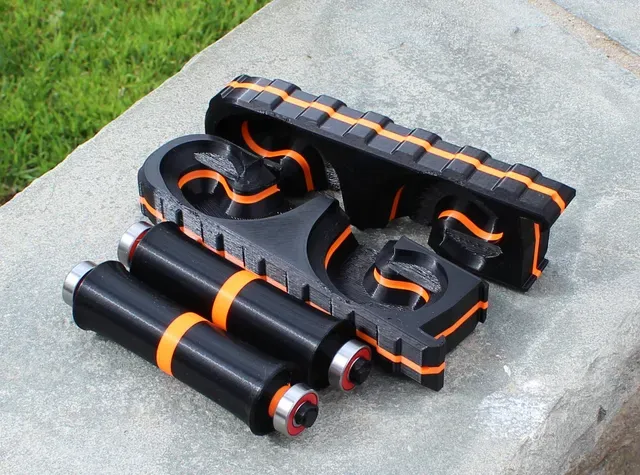

Assembly: Peel the supports off the rollers by twisting and pulling straight off. Peel the tiny brim off the c-clips. Assemble the bearings on the rollers and secure with the c-clips. Mock the arms with the rollers to set the spacing and mount to the top of your Prusa. Cut a 7½" [190mm] approx. piece of filament and thread through the front holes to form a filament guide.

Go back to PrusaPrinters.org and PLEASE share a pic of your print. Happy printing!
