32mm and 78mm Tape Dispenser Spindles

Сведения о модели

Площадка
Printables
Цена
Бесплатно
Лицензия
CC-BY-NC
Можно печатать и изменять для себя с указанием автора; продавать модель и отпечатки нельзя.
Форматы
STL
  • 20 Лайки
  • 108 Загрузки
  • 0 Напечатали
  • 0 Комментарии
  • 459 Просмотры

Автор:Audi

Опубликована

Описание

Okay you Sublimation Printer makers, you asked for it, you got it. :D

A standard office tape dispenser is too light to use one handed. So here are a couple of spindles to use with large, heavy dispensers like this one... https://www.amazon.com/Effortless-Sublimation-Women-True-Weighted-One-Handed/dp/B0BZZXN1SF

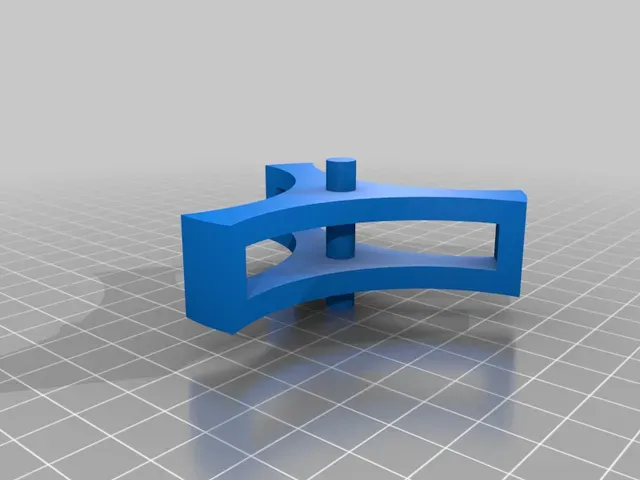

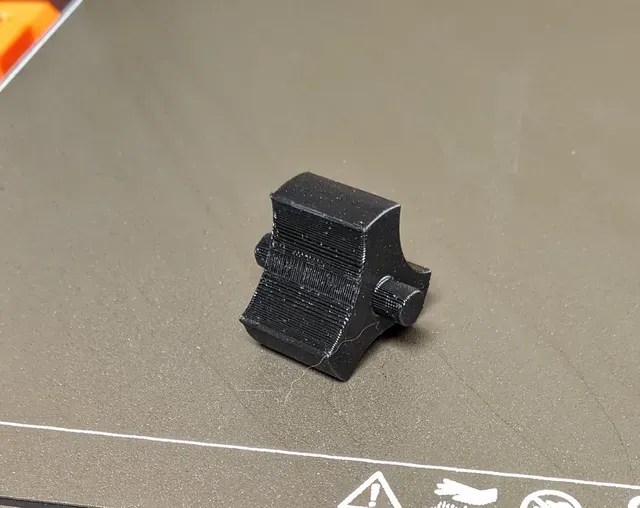

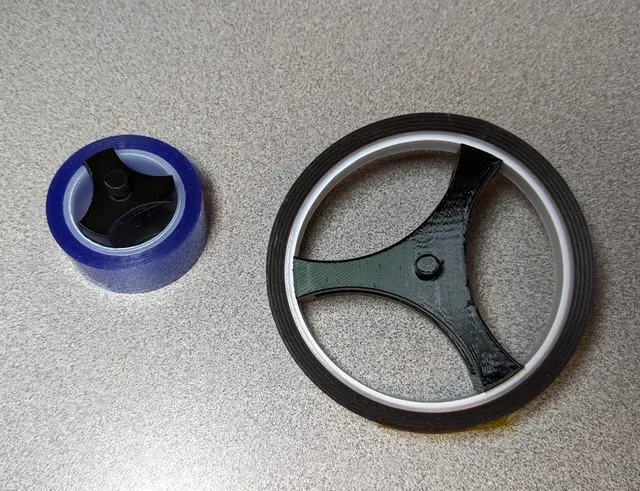

One spindle fits rolls of tape with a 32 mm hub, the other fits rolls with a 78 mm hub. Both have a 6 mm axle, which fits the large dispenser.

Also see my 32 mm spindle with a 5 mm axle, which fits standard office tape dispensers. https://www.printables.com/model/540475-32mm-tape-dispenser-spindle

Print Settings

Printer Brand: Prusa

Printer: i3 MK4

Rafts: No

Supports: Yes

Resolution: 0.2 mm

Infill: 15%

Filament: Prusament PETG Black

Notes:

Printed in PETG only because that's what was loaded in my printer and I was too lazy to change it out.

Print with a brim and supports.
