Tesla Cybertruck RC

Cybertruck RC and model car - A 3D Printed Cyberbeast from TeslaRCs.com

1:10 scale Cybertruck RC and model car: Born based on the best practices of Earth's No. 1 electric car manufacturer and Earth's No. 1 3D printer manufacturer ideas. Start the building with our detailed assembly manual today!

“The best part is no part” - Elon Musk

Our Top 5 features

- Skateboard platform and Exoskeleton: It is a true electric car from first principles perspective, so it's built on EV skateboard platform with a tough Exoskeleton. - Powerful drivetrain: You can choose to build a Rear Wheel drive (RWD), or All Wheel drive (AWD) RC car. It is reliable like a Prusa Mk3s printer and fast like a Tesla. - Support free design: 92% of the parts don't need printing support. - Packed with gaming features: double wishbone suspension, openable door, frunk, tailgate, vault bed cover, hidden storage space under the bed, and LED lights on front and rear. - Lifetime update: we implemented the original 2019 Proto state, but we already working on the next major update to implement the Cybertruck serial production design into 1:10 3D Printeable shape.

Tesla best practices: Skateboard platform and Exoskeleton

The Cybertruck skateboard contain all necessary parts for driving, steering and the LED lights.

The middle section contain the battery and electronics, the front and rear Giga Prints (~Giga Castings) hold all drivetrain parts: this ensure the low Center of gravity, it will not rollover.

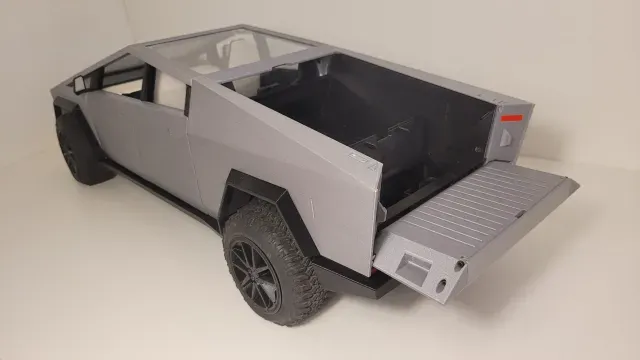

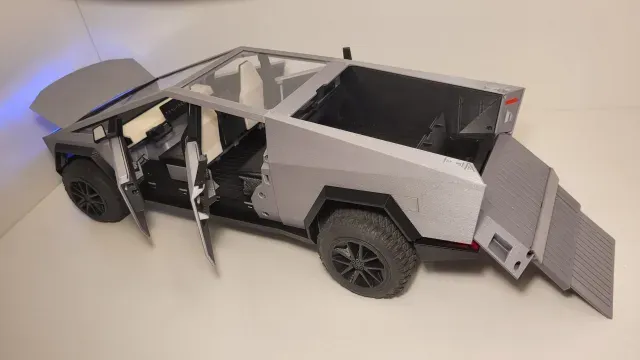

The Exoskeleton has everything like the real Cybertruck: working doors, frunk, hidden storage under the bed, tailgate and what we most proud of: the vault-bed cover.

Powerful drivetrain

Our Rear Giga Print (~Giga Casting) contain the rear motor, the torque increasing gears and the 3D printed opened differential too. You have option to install an air cooling fan.

And the best news: None of them need a printing support!

The Giga print have the fixing point for the lower wishbone and rear bumper too. No unnecessary parts!

You can build Rear wheel drive ( RWD ) only, or all wheel drive ( AWD ) RC car too, you can choose to place a drivetrain components in the front, or not!

The rack and pinion steering gear installed into, the daytime running lamp bracket attached to the Front Giga Print.

Support-free 3D Printing

We carefully planned our design to reduce the need for unnecessary printing support.

92% of the packages are support-free

In the downloaded files every parts oriented in printing orientation. You don't need to thinking about printing direction!

Check our short videos

- Cybertruck RC speed test

- Suspension performance - Slow-motion

- Suspension performance - Real time

- Drifting capability

- Performance in snow Assembly manual - Folder structure in the purchased .zip file

The folder structure in the purchased .zip file corresponds to the chapter numbering of the assembly instructions on the official website.

Folder name Content

01_Introduction Link for the official assembly manual .

02_Components_for_Model_car Cutting template for the plastic transparent windows

03_Components_for_RC_car General RC infos about Battery charging

04-13_3D-Print-the-Cybertruck-parts All files for 3D printing:

.stl files: 3D object files

.3mf files: prepared 3D printing project files (include support, orientation, quantity and other settings) for Prusa Mini and Prusa MK3

.gcode files: files for 3D printing for Prusa Mini and Mk3s to print directly

14-19_Build_the_Exoskeleton Link for the official assembly manual .

20-25_Build_the_Skateboard Link for the official assembly manual .

26_Skateboard_testing General RC infos about RC radio controller user manual, to fine tune your RC car

27_Marriage_Exoskeleton&Skateboard Link for the official assembly manual .

You can found our detailed online assembly manual on our official TeslaRCs.com website.

Technical Specification
