Wall hooks (V2 released w/ locking pin)

Сведения о модели

Площадка
Printables
Цена
Бесплатно
Лицензия
CC-BY-NC
Можно печатать и изменять для себя с указанием автора; продавать модель и отпечатки нельзя.
Форматы
3MF
  • 33 Лайки
  • 162 Загрузки
  • 4 Напечатали
  • 13 Комментарии
  • 768 Просмотры

Автор:steair

Опубликована

Описание

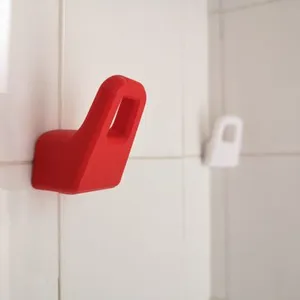

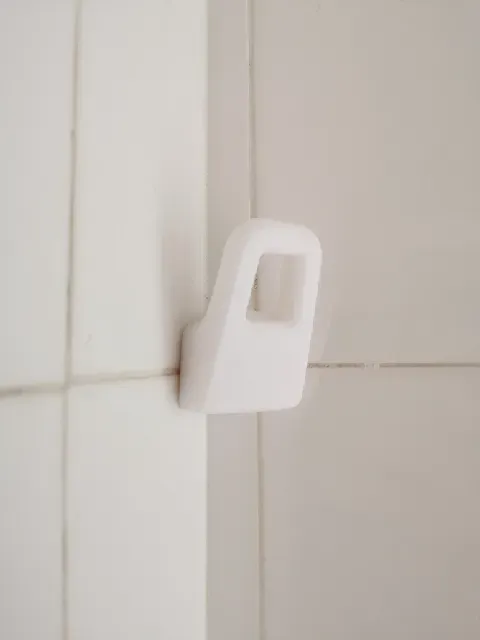

Hooks that can be mounted on flat walls or wall corners.

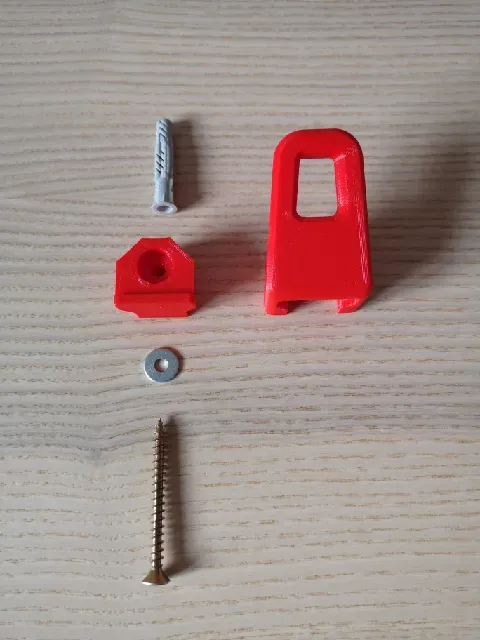

I suggest to use an M6 drill bit with corresponding wall plug and screw. You can also insert a 12 mm washer in the wall-mount part for added peace of mind.

To install just screw the wall-mount part to the wall, then slide on the hook part (see images for reference).

UPDATED 23/10/2022 - V2 RELEASED!

As someone requested, I've figured out a way to lock the hooks to the wall-mounts after installation (it works with the flat walls version, as the corner one is impractical).

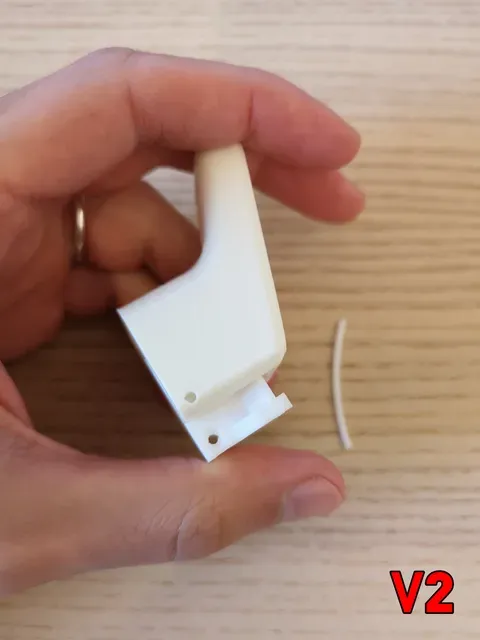

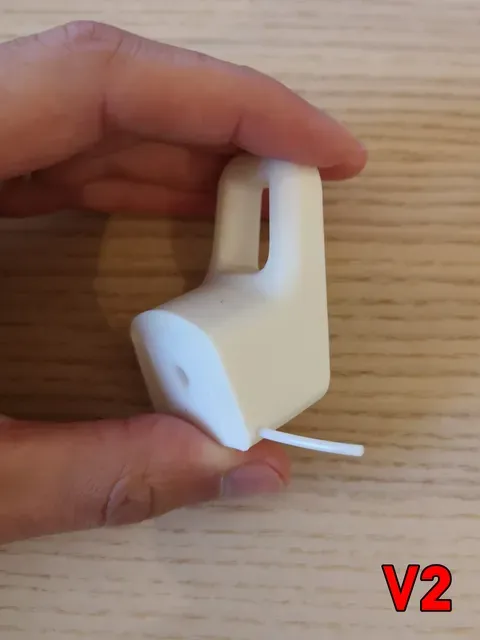

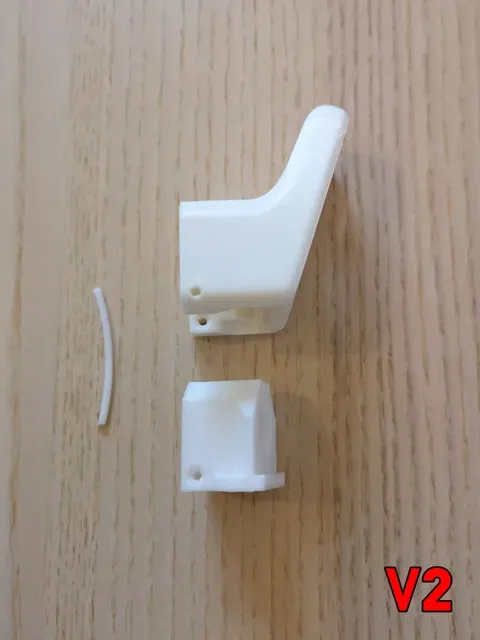

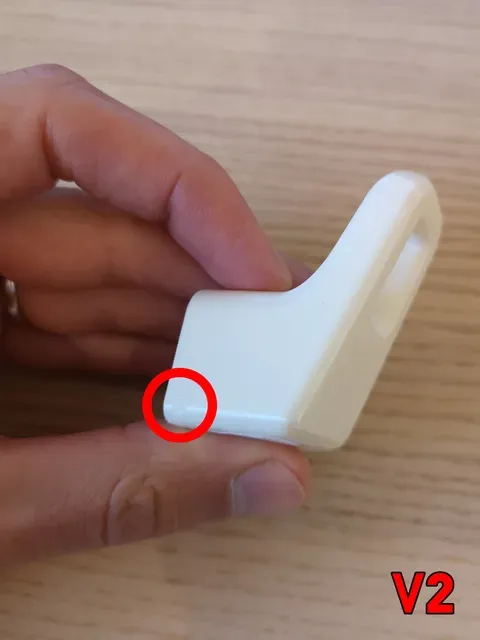

Simply download the V2 files (print and install as the V1) and lock the two parts together insterting in the tiny hole a bit of the filament (1.75 mm) you used to print (see images for reference).
