Watercooled PC Case - MODCASE 3D 13.3L ITX

MODCASE 3D 13.3L is a fully 3D printable PC Case with advanced customizations.

Instructions Here

This is a standalone version of the original MODCASE 3D for Printables. It includes the 13.3L case plus all of its MODs and optional accessories.

Features

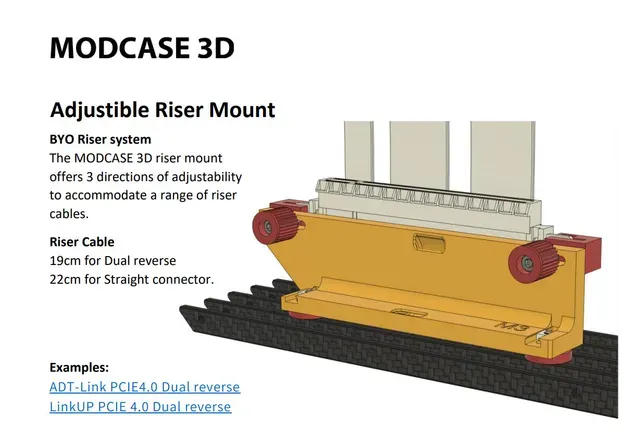

- Adjustable Riser Adapter

- Adjustable mesh density

- Split files for 210x210mm beds

- Modular Front IO options

- Official MODs included - See 'Optional' folder

Note: This case uses a riser cable. For an even simpler build you can checkout the reference layout MODCASE EVO .

Specifications:

Size

336x263x150mm (13.2x10.4x5.9") 13.25L 1.5KG

GPU Support

3.3 slots - 330 x 153 x 67mm

Radiators

Up to 280mm (extra thick support optional)

Mother board

ITX

CPU Cooler

Up to 54mm tall

IO Ports

USB_C, 16mm Power Button

PSU

SFX, SFX-L

Drives

1x 2.5"

Fans

2x140mm, up to 3x120mm

*Height includes PCIE power connector protrusion. Factor in extra room if your card doesn’t have recessed power connectors.

License

This model is sold for personal use. If you wish to sell finished prints please email hbao@modcase.com.au

Links

- MODCASE 3D Collection

Reddit Discussions on Modcase 3D

- Fully printable cases for mainstream printers

- Feature Update 1

- Feature Update 2 ft. 280MM Liquid cooling
