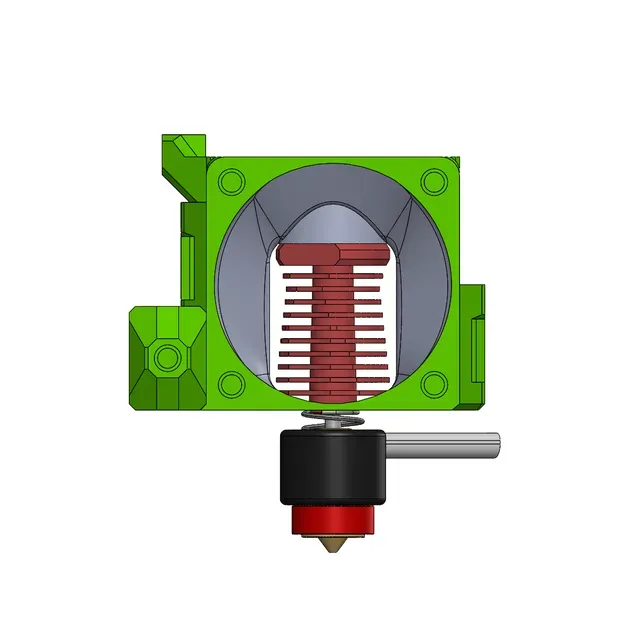

Revo Voron Adapter - Rat Rig Toolhead V1.0 BETA V2

This is a adapter to mount a Revo Voron on the Rat Rig Toolhead V1.0 BETA V2.

You need to print a new toolhead front.

I tested the mounting, but did not print with it yet!

Additional hardware needed:

- 4x M3x6 - PTFE Tube 30.8mm Assembly steps:

- Test the fitting of the PTFE tube. In case it doesn't fit, drill out the hole with a 4mm drill. - Test the fitting of the M2.5 screws in the plastic adapter. Tap the holes with an M2.5 tap or widen with a 2mm drill if they don't fit. - Mount the Revo Voron heatsink with 4x M3x6 to the printed adapter - Mount the Revo Voron heatsink and adapter to the aluminium plate as you would with the Rapido Extruder
