Raspberry pi touch screen case

v2:

added extra mounting holes for enclosure mount:

link for enclosure mount:

enclosure screen mount by Bheem2021 | Download free STL model | PrusaPrinters

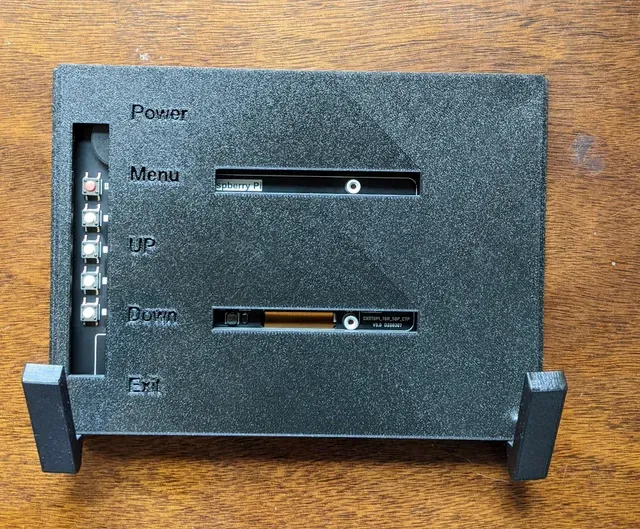

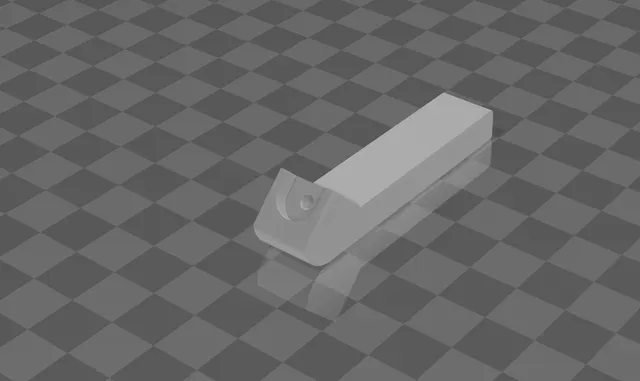

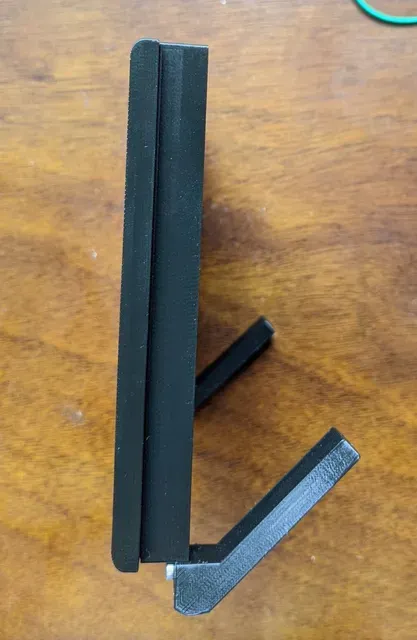

A simple case for a raspberry pi 7in touchscreen. There are cutouts on the left side for HDMI and micro-USB. on the bottom right there is a cutout for the inbuilt button on the screen and labels for each button. the included stand needs two m3 x10mm screen and to fasten the top of the case use m3 x 15mm screw through to screen and into the bottom of the case. you might have to push the case up against the right side to plug in your HDMI cable.

source file are included.

Here is the Link to the screen I used when designing this: Amazon.com: Raspberry Pi Touchscreen Monitor, Upgraded 7'' IPS 1024X600 Dual-Speaker,USB HDMI Portable Monitor Capacitive Pi Display,Compatible with Raspberry Pi 3b+/Raspberry Pi 4b, Windows 7/8/10,Drive-Free: Computers & Accessories
