Desiccant block for Rubbermaid drybox
Сведения о модели
- Площадка
Printables
- Цена
- Бесплатно
- Лицензия
- CC-BY
- Можно печатать, изменять и использовать в коммерции — с указанием автора.
- Форматы
- STEP3MFGCODE
- 27 Лайки
- 112 Загрузки
- 2 Напечатали
- 2 Комментарии
- 990 Просмотры
Описание

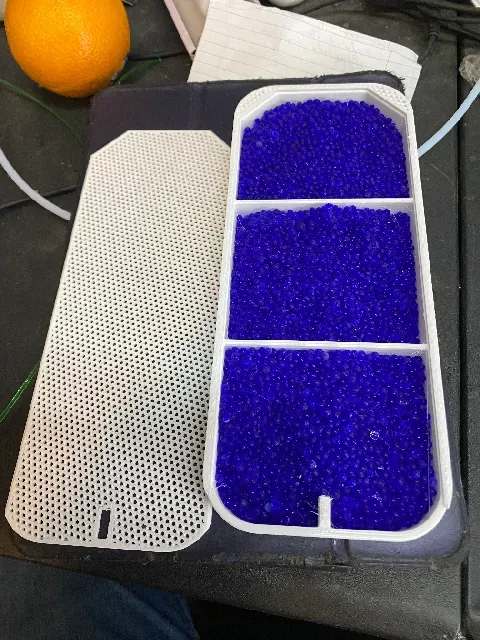

This desiccant block fits the rubbermaid 21 cup containers. It has strong walls so it can support 1 Kg spools easily.
Print Instructions:
YOU MUST FOLLOW THE PRINT INSTRUCTIONS!!!
- Print using ZERO top and bottom layers (REQUIRED.) - Use 45 to 60 % infill in a honeycomb pattern (REQUIRED.) - PETG so the lid can flex while it is slid into place (REQUIRED.) - No supports Assembly Instructions:
- Fill the block about ¾ full of desiccant. - Flex the lid slightly so it will fit into the slide tracks and over the lock notch. - Slide the lid closed. - Snap down around the lock notch so it doesn't slide back open.
