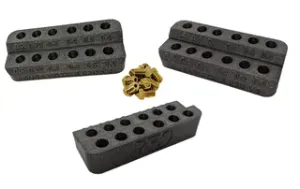

Modular Nozzle Holder 2024 // Prusa MK3S // E3D V6 dots coding & size // Threaded!

Update 19.01.24: Added pins on base holder to get a pre-tension against some possible vibrations!

Hi,

i made this because all available designs did not fit my needs which are:

- perfect fit on Prusa MK3/S+ with enough space to moving axises & the spools - clear readable description of the nozzle diameters & nice designed dot-positions of the nozzles - I do not want to use the false nozzles :) - Threaded input to avoid noises of nozzles moving in too big holes, OR to small holes where i need a lot force to screw the nozzles in and out again. - Nice clean design with different colors which is printable without MMU - I did it with different heights of the layers. - Black 9 layers (9*0,15mm = 1,35mm) - red 6 layers (6*0,15mm = 0,9mm) - white 3 layers (3*0,15mm = 0,45mm)

What is needed & How i printed it on MK3S:

0,4mm Nozzle for all to print!

- 1x “Base_plate” PETG 3 Perimeter - 0,2mm Layer - 1x “Description Plate” PETG 4 Color - 0,15mm Layer - 10x "Nozzle_thread_insert" - Used PLA in 0,1mm layer for super fine print! - Additional needed: 2x M3x10mm screws Hints:

- I added my gcodes for MK3S/+
