O' RIDGE | Wall Light E14 & E27

O' RIDGE | Wall Light E14 & E27

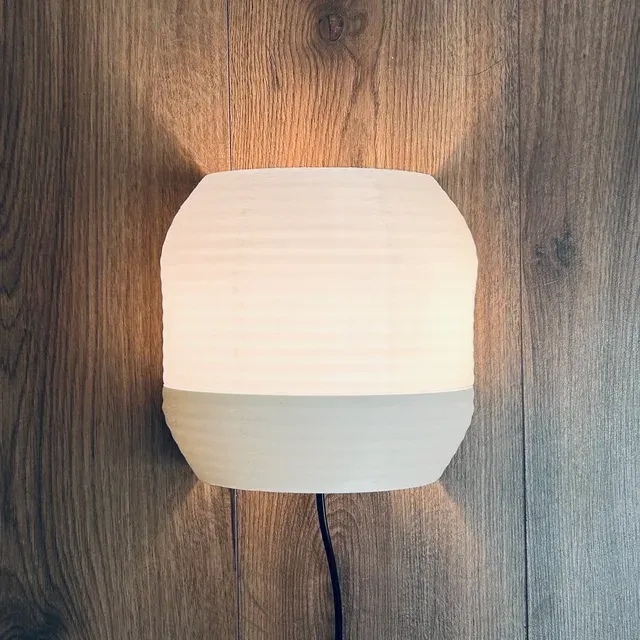

Give your space a modern mid-century vibe with this fast-print wall light !

This design also comes in floor lamp version. Check out the O' RIDGE Floor Lamp .

The shade and base are each made of two thin shells that join at the top and bottom, casting a warm & soft glow. They both print very fast with the right settings listed below. The shade takes about 3h, and the stand less than 2h.

This lamp works for both E27 and E14 socket screw thanks to a custom adapter you can easily clip on (STL file provided).

You can get the power cords from Amazon here: For Europe: E27 cord:   https://amzn.to/3OVrZjK E14 cord:   https://amzn.to/3TchBqs

For the US: E26/E27 cord:   https://amzn.to/3V5VYJB

To fix the lamp on the wall, print 2 of the round brackets and screw them on the wall with standard #10 x 1-1/2" screws and anchors. The screw hole has a diameter of 6mm. And the head diameter can be up to 10mm.

The drilling distance between the 2 screws is 152mm .

Happy printing!

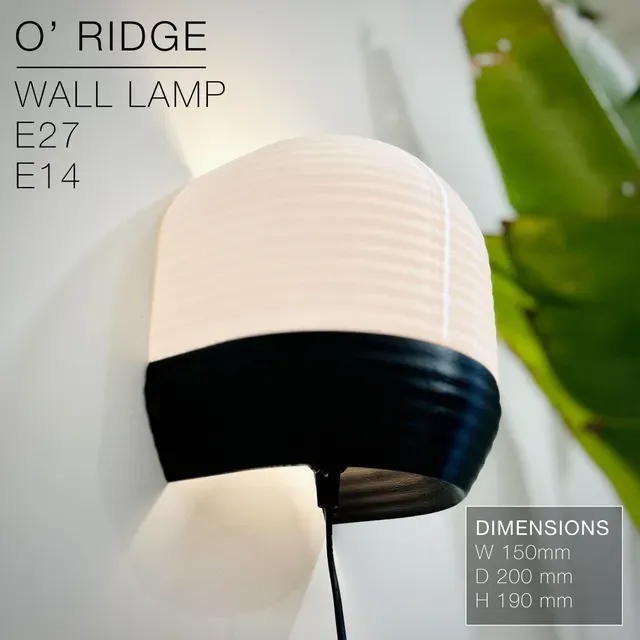

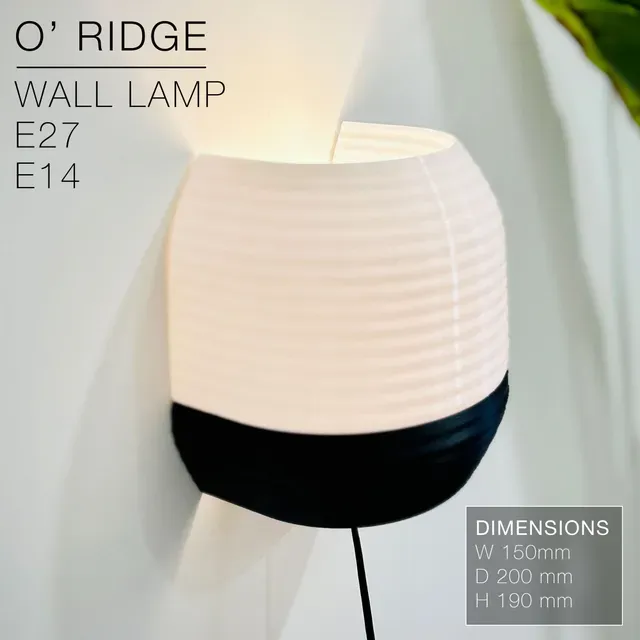

DIMENSIONS | W 150 mm x D 200 mm x H 190 mm

PRINTING | Shade ~3h | Stand ~2h

Bulbe socket | E14 or E27

3D PRINT SETTINGS: All STL files are already oriented properly.

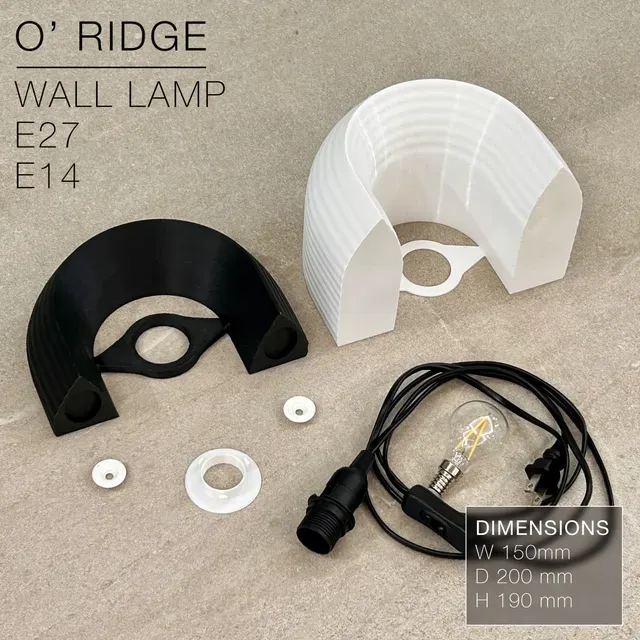

You need to print 2 parts: • 1 lamp shade • 1 base/stand.

They can be printed with either a 0.4mm or 0.8mm nozzle. The 3D model is full. This is normal. You need to "empty it" by printing it vase mode (spiralize outer contour / spiral vase).

For 0.8mm nozzle: • 0.3mm layer height • default 0.84mm up to 1mm line width (for default and outer wall) • 4 bottom layers (adjust if using another layer height)

For 0.4mm nozzle: • 0.2mm layer height • 0.8mm line width (for default and outer wall) • 6 bottom layers
