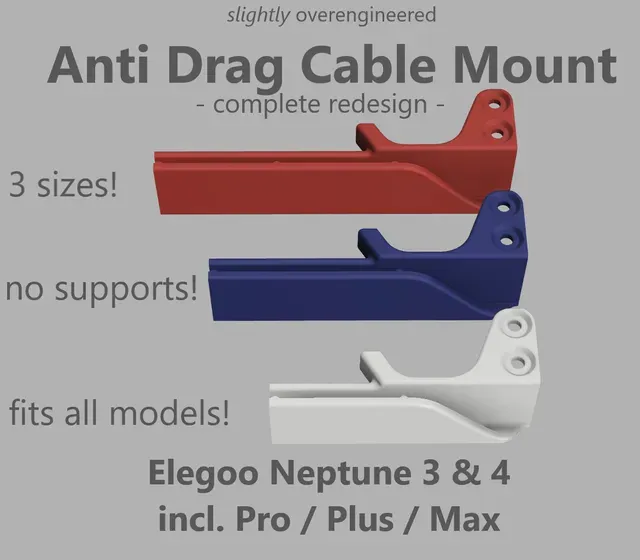

"slightly" overengineered Anti Drag Cable Holder / Clip for Elegoo Neptune 3 + 4 Series

Update: 26.03.2024: complete redesign! Based on the linked remix I have completely redesigned the model. It is now fully compatible even with Elegoo Neptune 3 / 4 Plus and Max. No supports are needed anymore!

Compatibility Fully compatible with Elegoo Neptune 3 & 4 / Pro / Plus / Max. There is a dedicated version for the Neptune 3 Series, as there is no cable for the additional cooler there.

Improvements The model has a separate, stable holder for the cable of the auxiliary cooler (Neptune 4 series). The screw points have been significantly reinforced.

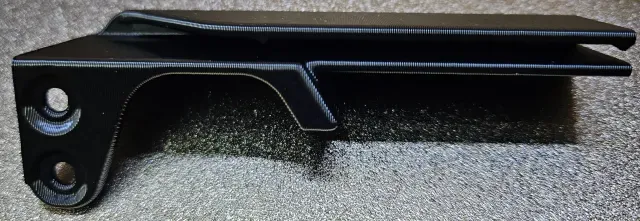

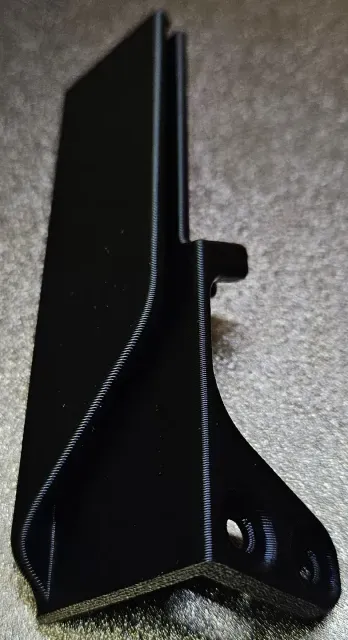

Save material The length is ideal for routing both cables perfectly (see photos). No contact with the print bed or the component to be printed! The flat cable has sufficient clearance.

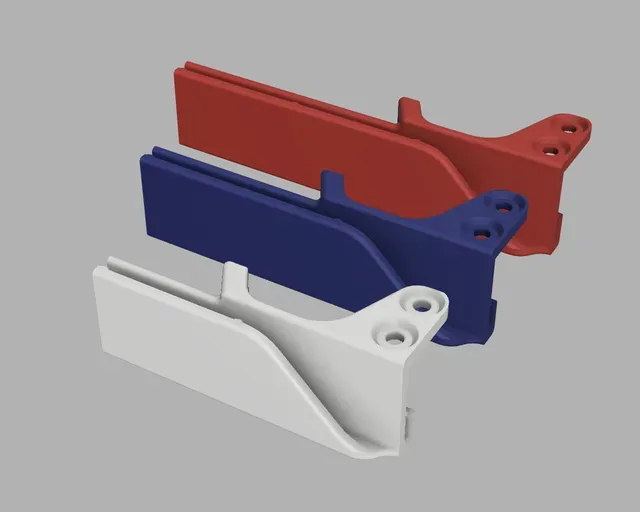

Dimensions There are three length dimensions for each series: 80mm, 100mm, 120mm Please choose your desired verison. I have had very good experiences with 100mm.

No additional screw required.

Printing I printed in PETG. Use 20% gyroid infill. Print upright and use brim . No supports needed!

Installation 1) Unscrew the crippled original cable holder and keep the screw 2) Unscrew the screw which is screwed in from the underside. 3) Install the cable holder and use the screws of different lengths in the corresponding hole
