Extruder Motor Cooler MK3s/+ by Simonpk

Hello, I'm industriel designer, I usually draw on Rhino3.

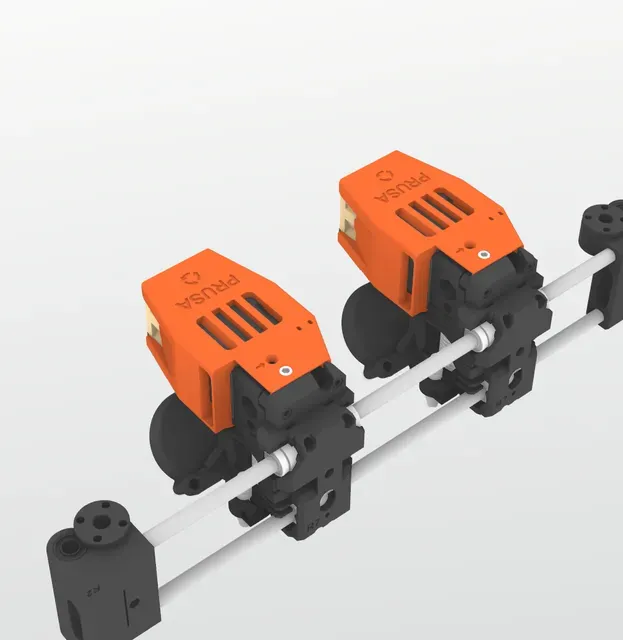

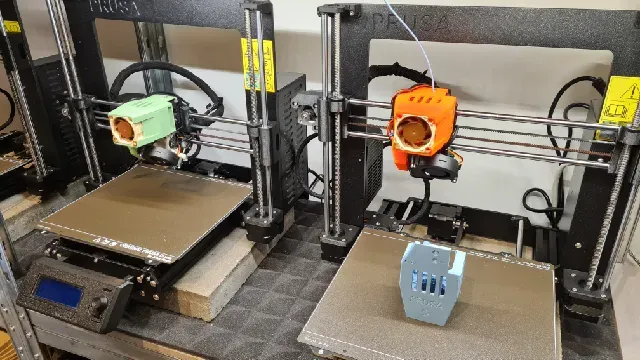

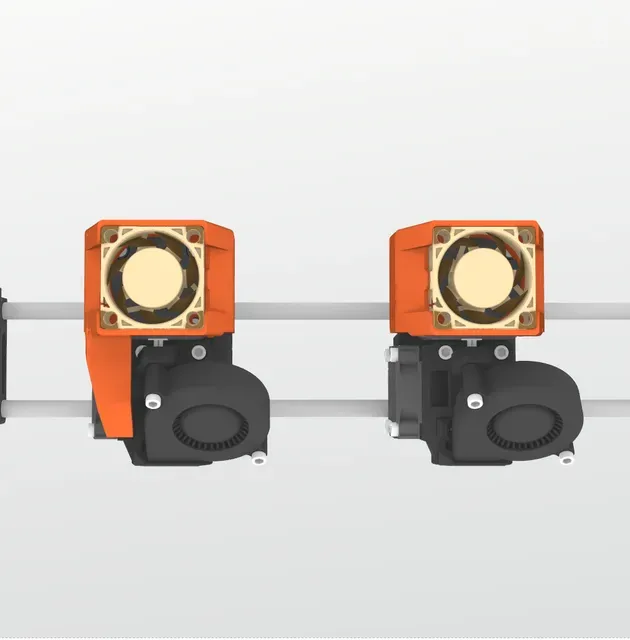

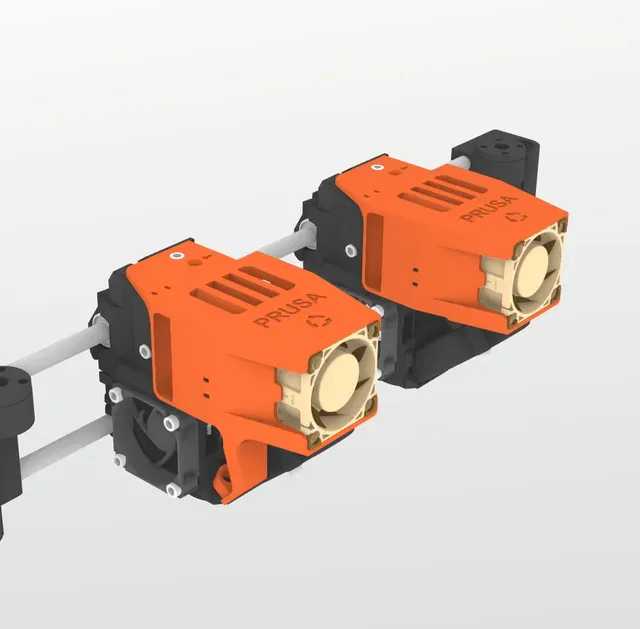

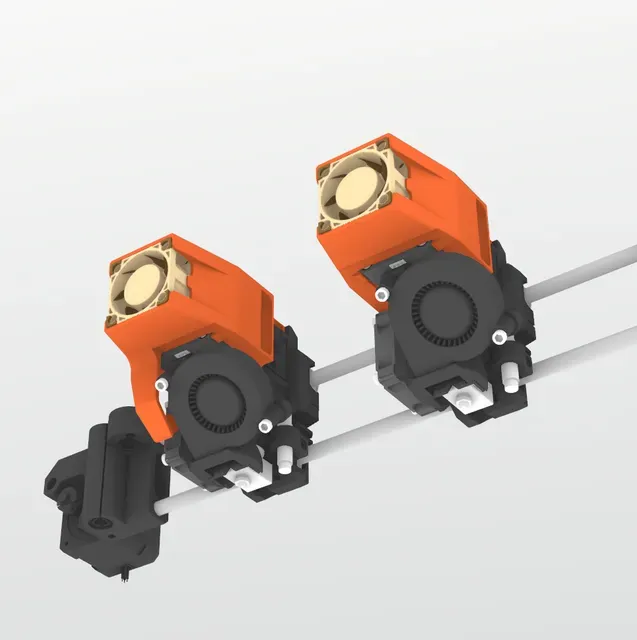

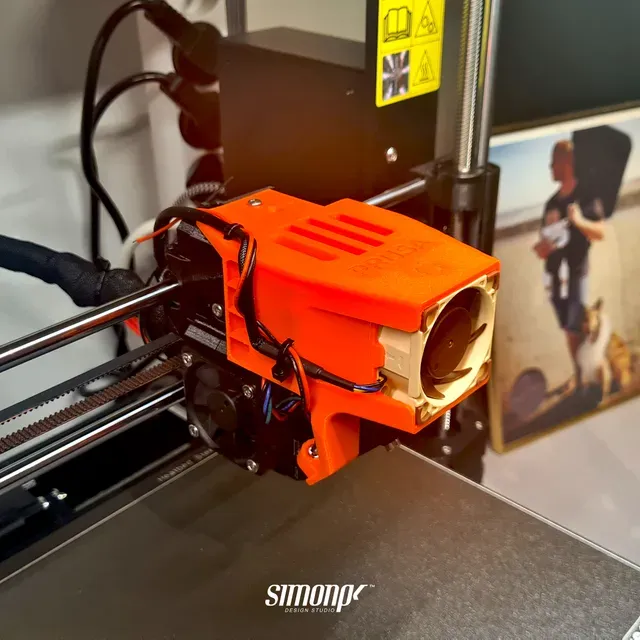

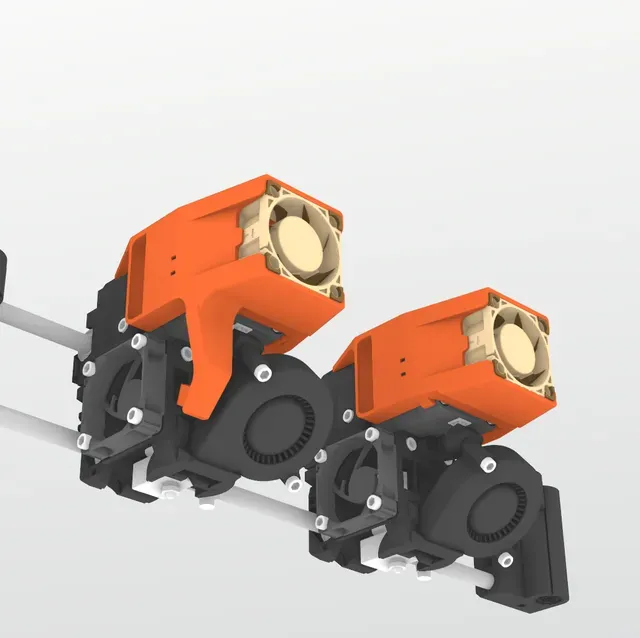

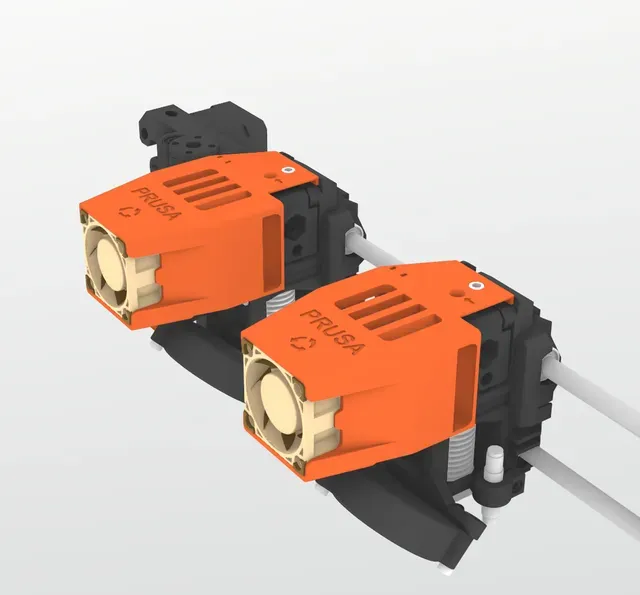

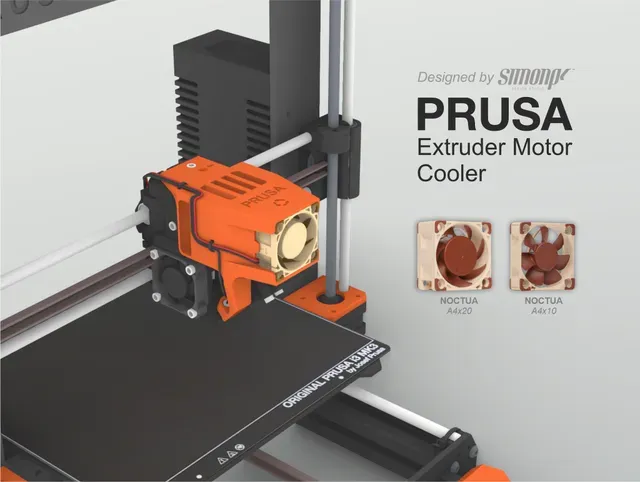

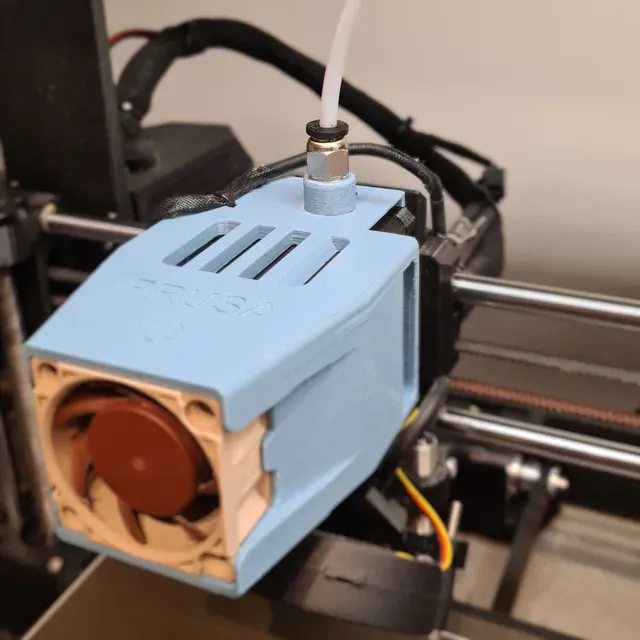

I made an extruder motor cooler which has the particularity of being positioned in the axis of the extruder. This is for new MK3s+ but also corresponds to the Mk3s model. The cooler has a support for a led directed towards the nozzle.

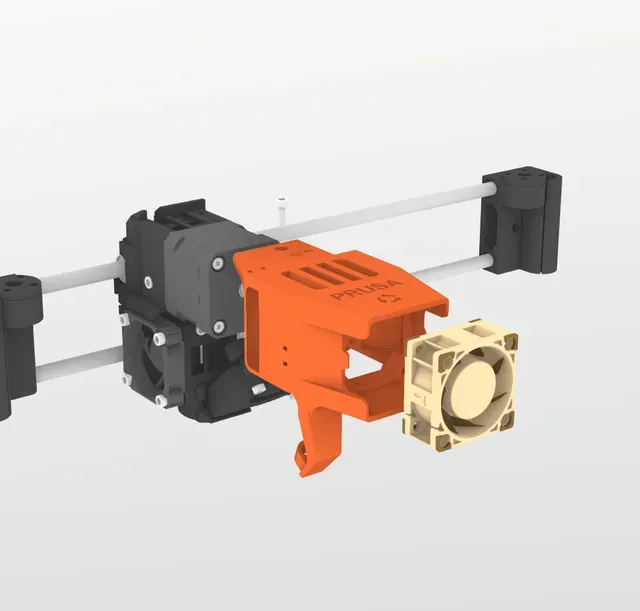

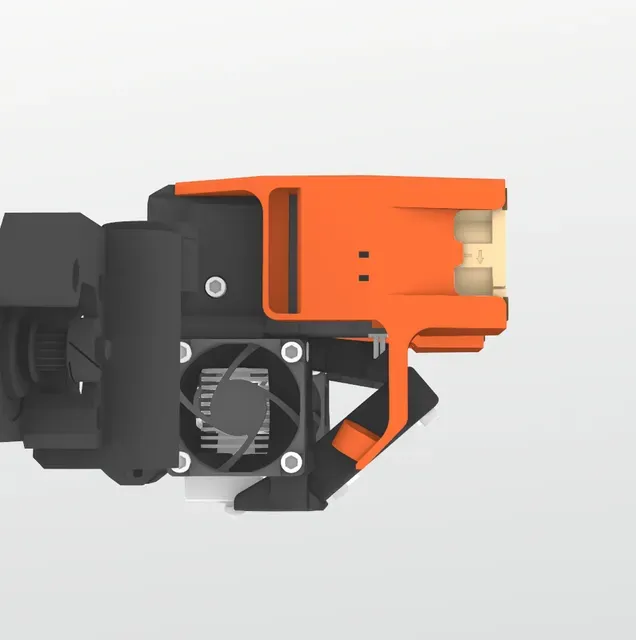

it was designed to allow the passage of the idler and is simply tightened by the M3 of the FS-cover.

I was inspired by SpaceX's dragon capsule.

Don't forget to like and comment! Thank you

Listing :

2x M3 DIN 912 (optional) 2x Cable Tie Nylon (deliver with mk3S)

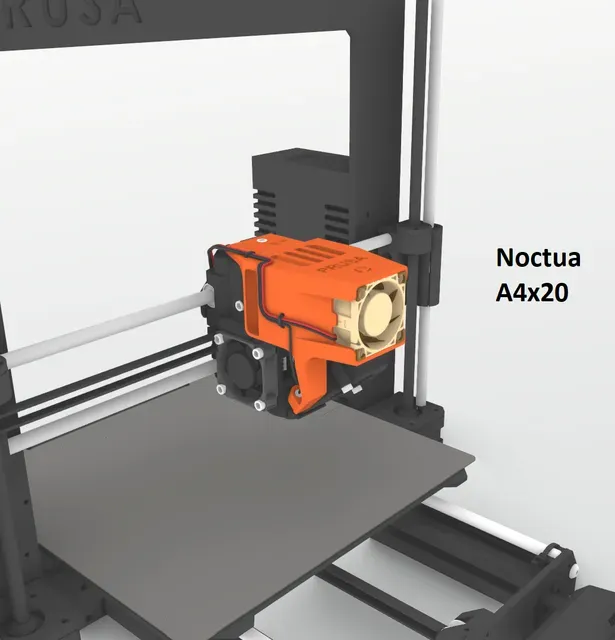

Noctua A4x 20 : - 12v Here - 5v (to connect it directly to the electronic board) Here

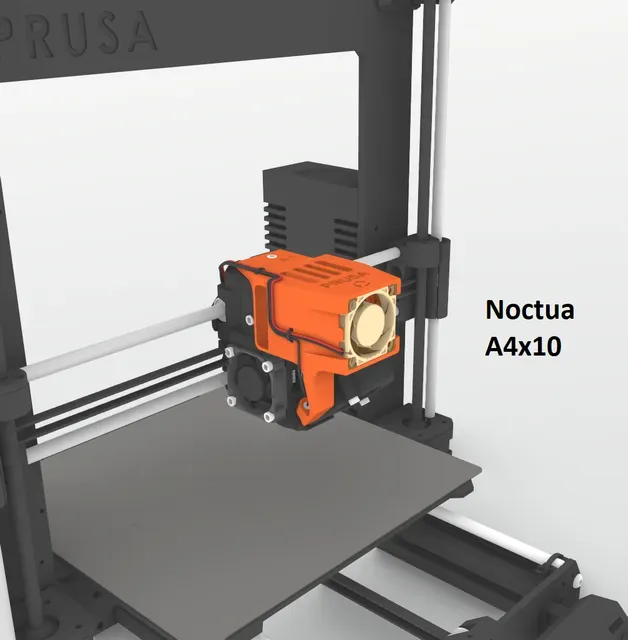

Noctua A4x 10 : - 5v Here

Led 12v Here 12v transfomer Here

Print instructions :

I printed this in PETG Prusament with support. 0.2mm layer height and 10% infill.

The link of the installation video on Youtube Here
