Dual-fan Bracket for Ableconn PCIe Dual m.2 - PEXM2-130 - 40+60mm

Years back, I picked up some Ableconn PEXM2-130 cards to split the PCIe x8 slots in some Dell R720 servers down to x4x4 with dual m.2 slots. Those old dells don't have onboard bifurcation, so this was a great solution!

One broken Samsung dishwasher, 100+ TB lost, and 2 years later, I got ONE of these cards working and tested in a ZimaBoard. Only, even with copper heatsinks, the Optane drives were surpassing 70c.

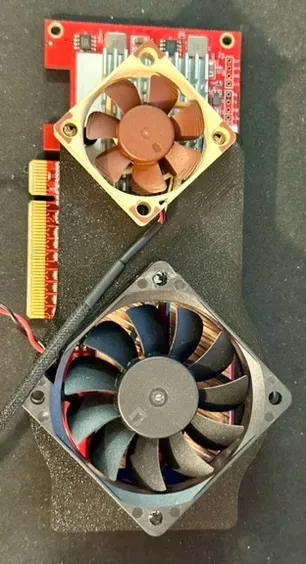

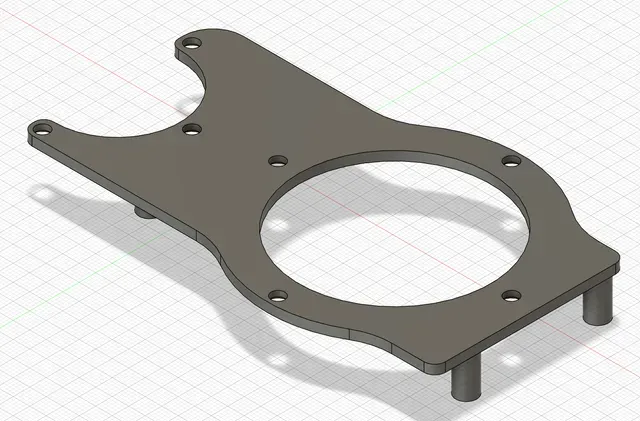

This little bracket lets me throw a 40mm over the PEX heatsink and a 60mm over the m.2 slots.

Dropped my temps significantly - Optanes stayed under 40c, consistently.

It prints in under an hour on my A1 Mini.

- print with posts pointing upward - no supports - I printed in “PLA Tough” from Bambu (it was on sale and out of production) - If you do PLA, use a “tougher” variation, I would guess… or ++ the walls & infill - Or maybe do a proper material? - Printed with 3 walls, but I would suggest 4 or more - 20% or more infill seems sturdy on mine

CAVEAT

I haven't used this long-term (as of Jan 2024), but it's been solid, so far
