Описание

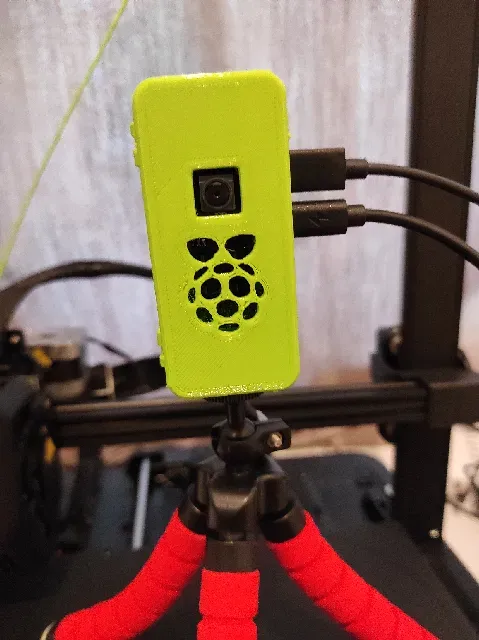

Pi Zero 2 W case with placement for camera with the short cable (38mm) and a vertical tripod mount.
Camera is on the same side as the CPU and it fits with a 10mm tall cooler.

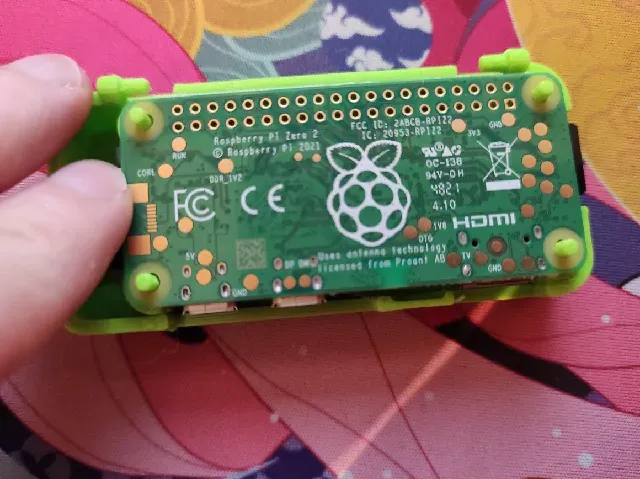

It has an insert to prevent the camera from moving and touching the Pi board (fits in one direction only)
Because of my limited experience, I printed it in PETG as two parts and then snapped them together (with some convincing), this can also help if the cpu gets hot.
I would suggest using tree supports as they are simple to remove and keep the horizontal holes cleaner.
Included is also a print in place version, but I haven't tested that one, so use at your own risk. This still needs the insert.
