Sonoff Wall Mount Light Switch Cover (UK)

This cover-plate for UK wall-mounted light switches will hold a SONOFF SNZB-01P Zigbee Wireless Switch without the magnetic plate. It's held in place by friction, so a snug fit.

Print Settings

Printer Brand:

Creality

Printer:

Ender 5

Rafts:

No

Supports:

Yes

Resolution:

0.2mm

Infill:

10%

How I Designed This

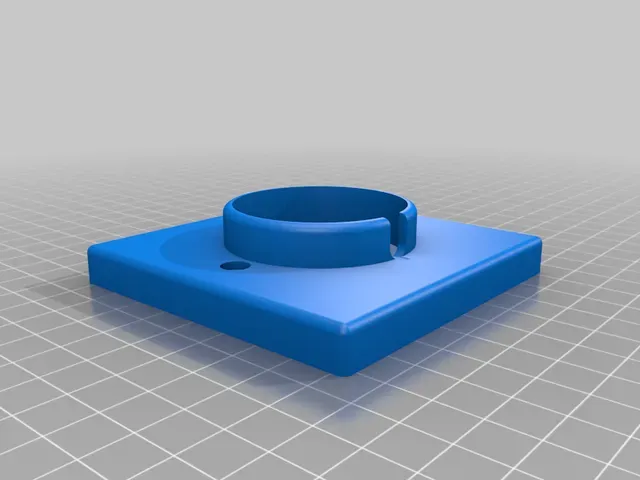

The back plate is based on a UK standard blanking plate, with two sunken 4mm screw holes spaced 60mm apart.

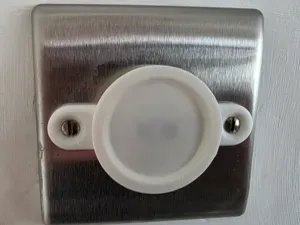

The hole in the centre was intended to allow you to press the button back out of the holder when required, but also lets the button sit much further into the wall. In my example photo I've fitted over a standard rocker-switch that protruded 5mm, so the sonoff pressed fully home into the holder. I didn't remove the existing light fitting so I didn't have to deal with any electricals. It does use longer screws than the original light fitting for that additional depth.

I've left a slot for the reset button in case you can't press your button far enough into the holder. It really depends on what you're mounting the plate over.
