SAN | Pendant Light E27 & E26 fast print

SAN | Pendant Light E27 & E26 fast print

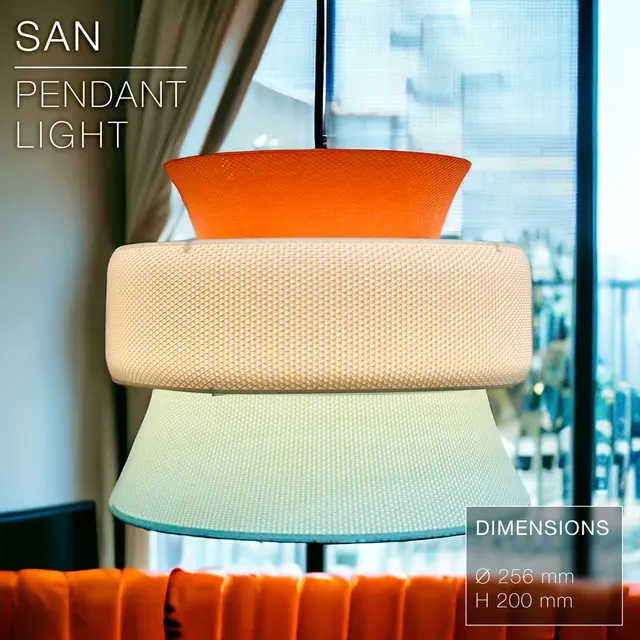

Meet the SAN pendant light, using 3D printed wickering technique. It is perfect as a dining room pendant.

Any 3D printer can print it without exceptional print settings and a regular 0.4mm nozzle. (See settings below)

This lamp works with E27 and E26 socket screws.

It comes in 3 sizes : The large one has a diameter of 256mm. The small one has a diameter of 208mm. The mini one has a diameter of 176mm.

Each size comes in 2 versions : - a “fast print” version with a 0.5mm weave - a “strong” version with a 0.9mm weave. You can mix and match the two if you want.

You can get the power cords from Amazon here: For Europe: E27 cord:   https://amzn.to/3OVrZjK

For the US: E26/E27 cord:   https://amzn.to/3V5VYJB

Some of you will wonder why the ring for the light bulbe in the middle of the top section looks like two half circle interlocking each other. The reason isn't mechanical, but I designed it this way to have a continuous inner loop, so a cleaner first layer and faster print. The printer doesn't have to create several loops and jump between them, leaving blobs and causing printing issues. Instead, the inner loop is all uninterrupted and will give you a much cleaner and faster first layer.

Happy printing!

DIMENSIONS (Large) | Ø 256 mm DIMENSIONS (Small) | Ø 208 mm DIMENSIONS (Mini) | Ø 176 mm Total height (assembled) is about 200mm, but each part is less than 70mm tall.

PRINTING | ~1h for each part for the fast print version

Bulbe socket | E27 or E26

3D PRINT SETTINGS

The top section prints upside-up. The middle and bottom sections print upside-down . (the STL files are all already oriented properly) No need for supports, infill or brim.

For BambuLab users, turn on "Arachne" mode in the "Wall Generator" settings. Otherwise Bambu Studio will detect some of the weave layers as empty.

Layer height: 0.2 or 0.3mm/layer (lamps in the pictures were printed in 0.3mm/layer) Wall line count: 3 Build adhesion type: None. If you have adhesion issues, you can add a 5~6mm brim. Supports: None Infill: None
