Wanhao i3 Plus frame for BTT SKR E3 Mini V2

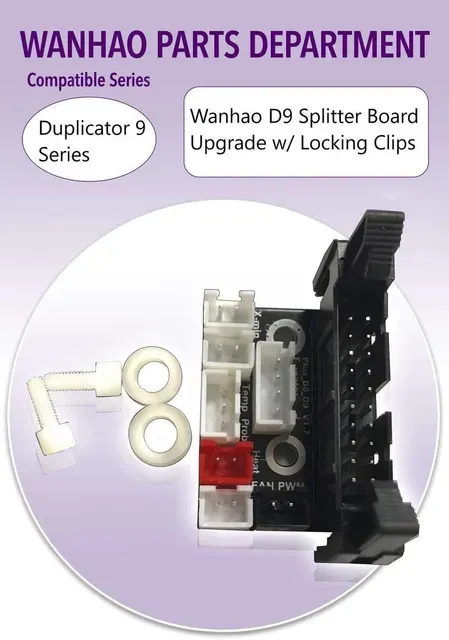

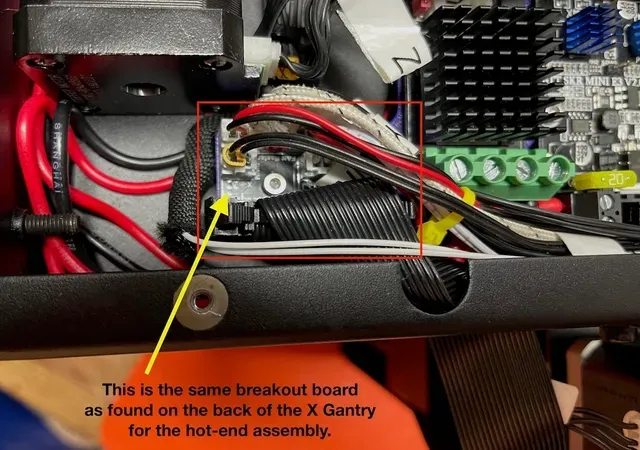

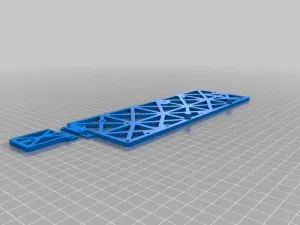

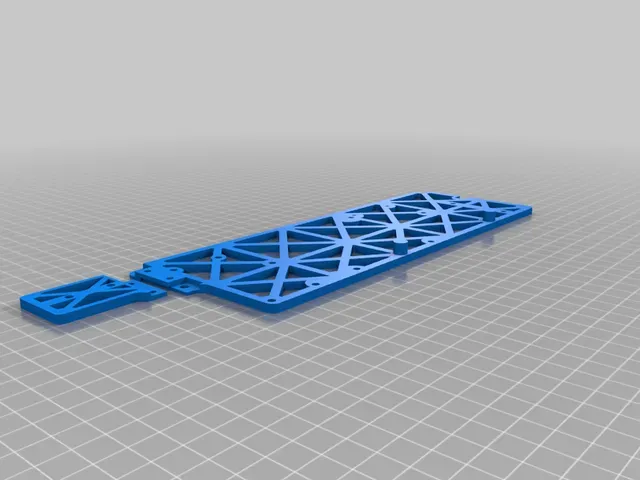

Lattice frame to mount a BTT SKR Mini E3 V2 controller in the Wanhao i3 Plus. No need to rewire everything to the hot-end, You can continue to use the stock ribbon cable. All that is needed is to buy a second ribbon cable breakout board and use that inside the base to convert the ribbon back into standard connectors. The breakout board is available from several sources online, but I use the Ultimate 3D Printing Store.

https://ultimate3dprintingstore.com/collections/wanhao-temp/products/wanhao-d9-splitter-board-upgrade

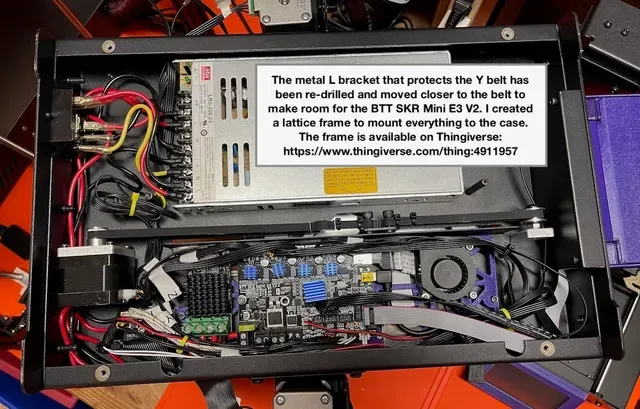

The metal L brace that that separates the Y axis belt from the Melzi control board can either be removed, or in my case I re-drilled it to move the brace closer to the belt to make room for the lattice frame and the BTT SKR controller.

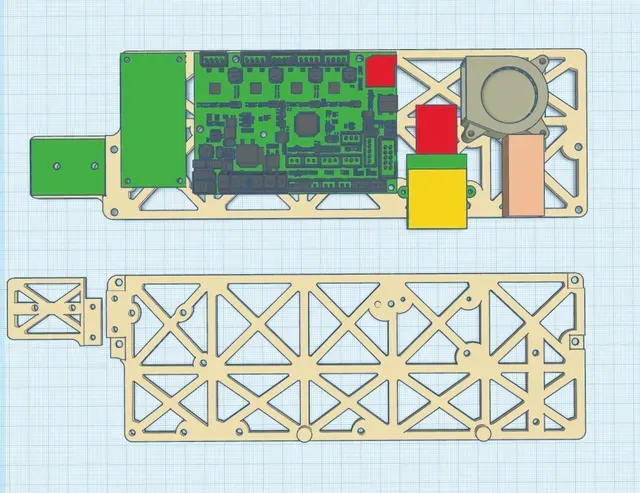

The lattice frame will hold the following

• BigtreeTech SKR Mini E3 V2 controller (or equivalent)

• Mosfet for bed power

• Wanhao I3 Plus ribbon cable breakout board

• 4020 or 5015 blower fan

• Micro to standard SD card reader

• Micro USB to female USB cable

Print Settings

Printer Brand:

Wanhao

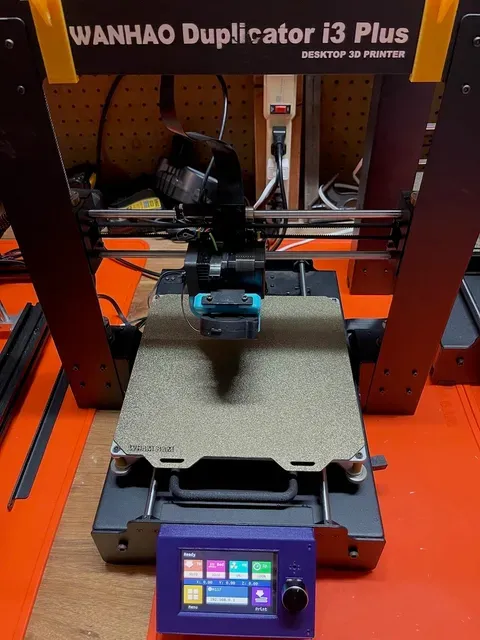

Printer: Wanhao Duplicator i3 Plus

Rafts:

No

Supports: No

Resolution:

0.2mm

Infill: 30%

Filament:

ANY PETG or PLA ANY

Category: 3D Printer Parts
