Designed to be used with the Wham Bam Mutant Universal Tool Swapping System.

Learn more about the Mutant here: https://whambamsystems.com/mutant

Welcome to the Mutant Invasion!

Updated August 22nd, 2021: Added support for the Orbiter extruder v1.5 (Right hand version) with a Slice Engineering Mosquito hot-end.

Slice_Mosquito_Orbiter_DD_Mutant_Base.stl

Slice_Mosquito_Orbiter_DD_Mutant_Adapter.stl

Updated August 13th, 2021: Added support for the Orbiter extruder v1.5 (Right hand version) with a Phaetus Dragon.

Phaetus Dragon-Orbiter_DD-Mutant_Base.stl

Phaetus_Dragon_Orbiter_DD-Mutant_Adapter.stl

This is the first of many Hero Me Mutant Direct Drive setups for the Mutant V2 universal tool changer.

Updated July 17th, 2021: Added a PDF to the file downloads area containing the documentation below. Re-uploaded all the files as several were not being included with selecting the 'Download All Files" button.

Updated July 11th, 2021: Added support for the Dyze Designs DyzEnd-X and DyzEnd Pro hotends (not the direct drive version).

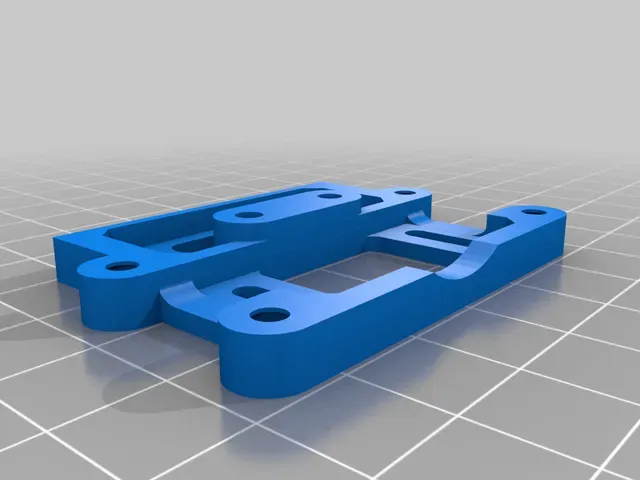

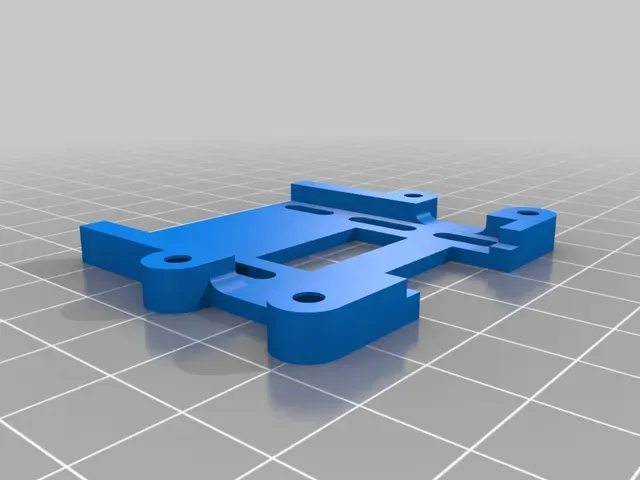

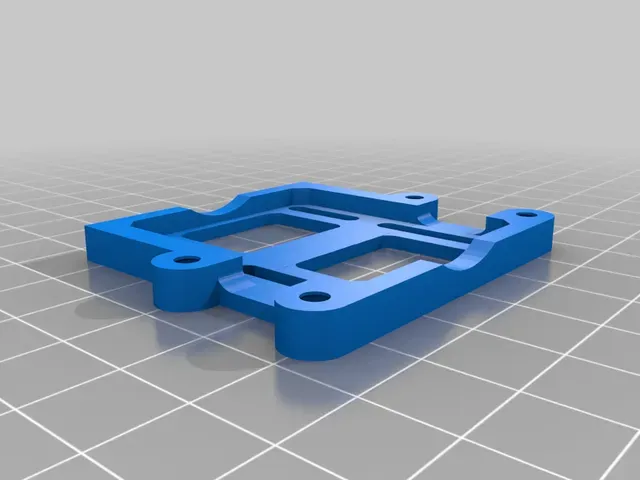

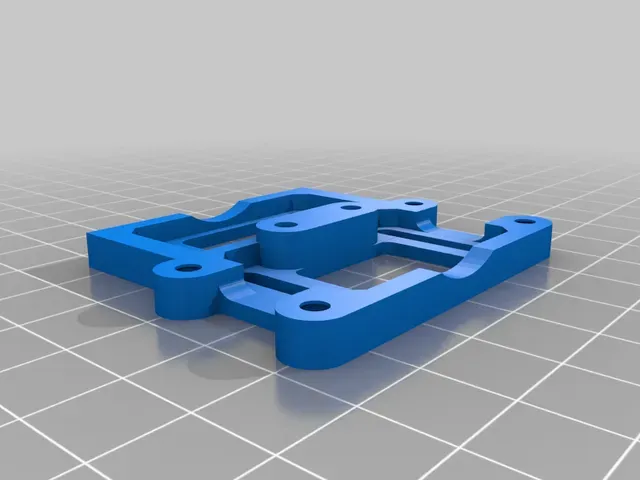

Updated July 6th, 2021: If you are adding the Mutant to a printer WITHOUT an ABL, I have updated the adapter plates to provide more Z axis height adjustment for printers that otherwise can't adjust the Z end-stops enough for the hot-end nozzle to touch the bed when at its lowest position.

The Hero Me Mutant is the newest member of the Hero Me family of popular HotEnd mounting and cooling systems. It is designed for performance, easy access, adaptability, and is nearly future proof. As new types and sizes of HotEnds, fans, ABL sensors, Direct drives, or other components are created, the Hero Me Mutant can support them without having to start from scratch.

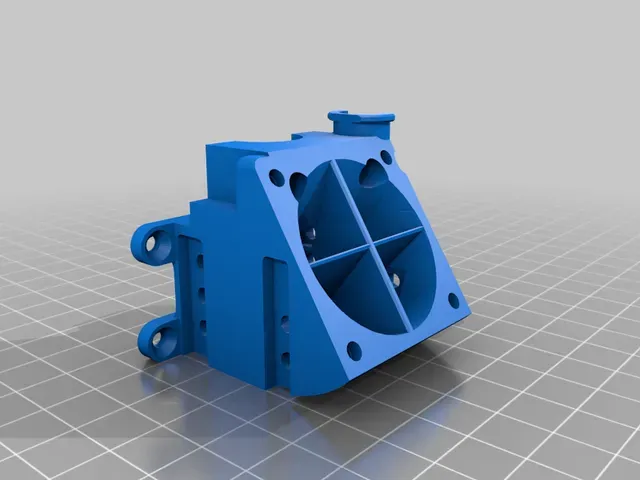

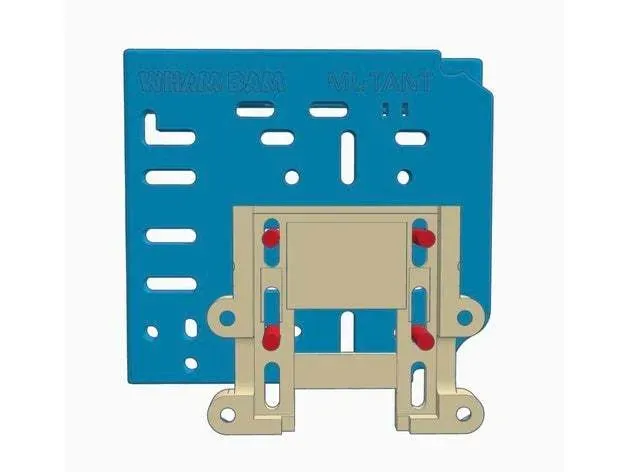

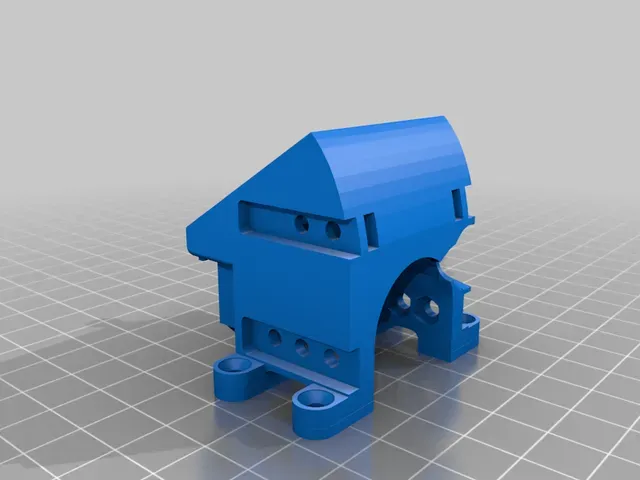

The Hero Me bases are configured to use adapters to mount to Mutant supporting almost any printer type. The mounts for heat sink and part cooling fans are standardized. All Hero Me bases provide excellent visibility to the whole heat block and nozzle.

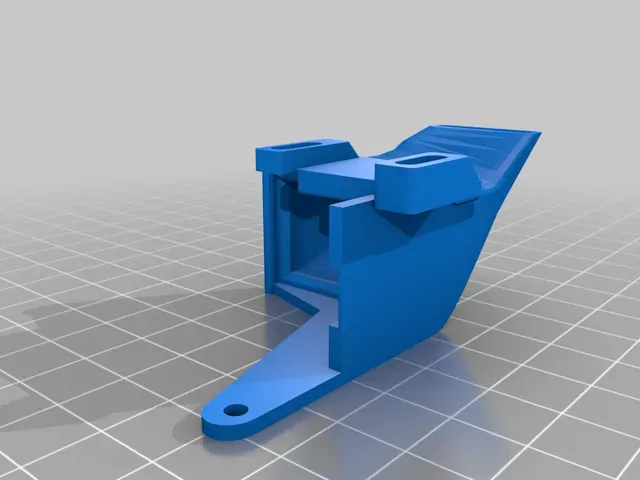

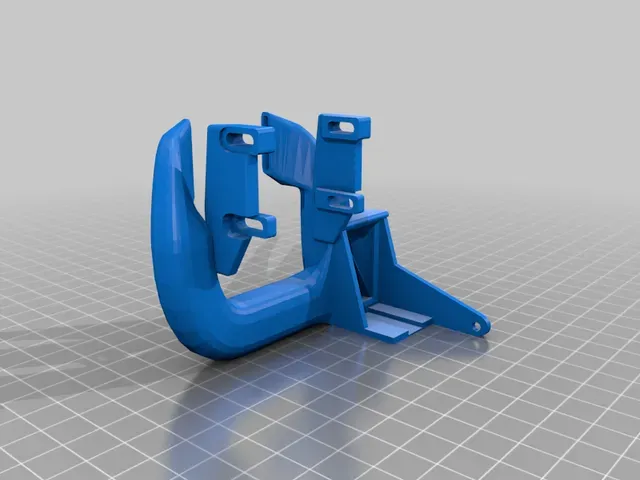

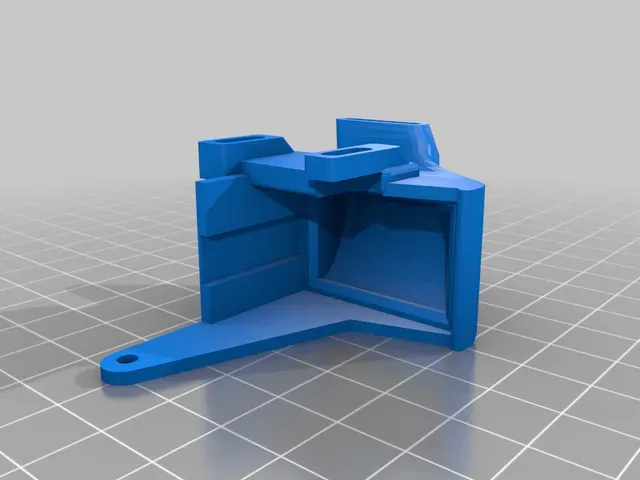

The parametric part cooling ducts have been CFD tested and real world validated. The Hero Me Mutant cooling system prevents filament sagging on extreme overhangs in any direction and is capable of bridging 300mm spans with no supports and no sagging.

The Hero Me family of cooling systems is considered by many as the best cooling system for any V wheel or linear rails-based 3D printers. The Hero Me family has over a dozen YouTube reviews, hundreds of public endorsements, and hundreds of thousands of downloads on Thingiverse.

If you would like a way to store your Hero Me Mutant assemblies and other Mutant devices while not on a printer check out my Mutant Workstation mounts here: https://www.myminifactory.com/object/3d-print-mutant-workstation-mounts-149200

Chris Riley from Chris's Basement demos setting up your Mutant and shows off the Hero Me Mutant and Mutant Workstation Stands. Check out the video below:

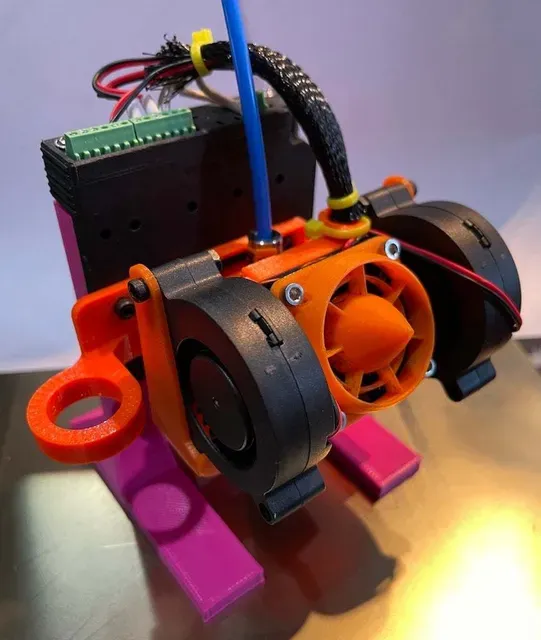

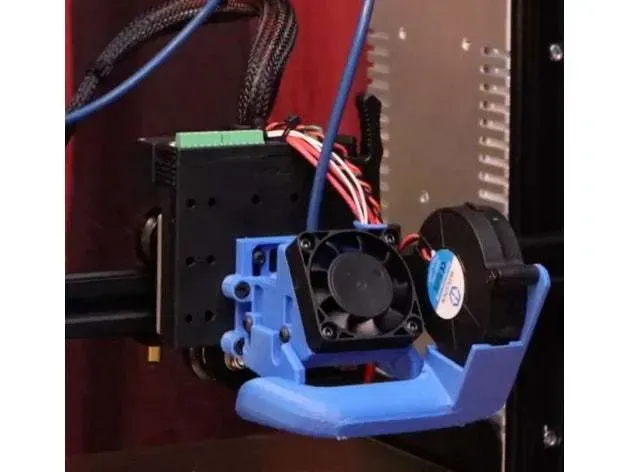

The Hero Me Mutant cooling system supports mounting a wide variety of popular HotEnds, fans, ABL sensors and other devices to your 3D printer.

The following 3D printer HotEnds are currently supported by the Hero Me Mutant cooling system for the Wham Bam Mutant.

• Creality – MK8 (Ender 3/Pro/V2 series, Ender 5/Pro/Plus series, CR-10/S/S4/S5/Max, CR-20 series, etc.)

• Creality - CR-10S Pro/V2/V3 OEM

• Creality - CR-10 V2 (V6 style)

• Micro Swiss - All Metal

• E3D - V6

• E3D - V6 Volcano

• Slice Engineering - Mosquito (screw and groove mounts)

• Slice Engineering - Copperhead (screw and groove mounts)

• Phaetus - Dragon HF/ST (screw and groove mounts) aka: Trianglelabs Dragon

• Phaetus - Dragonfly BMS

• Phaetus - Dragonfly BMO

• Dyze Designs DyzEnd-X

• Dyze Designs DyzEnd Pro

As well as:

• Clones of the E3D V6 hotend (using the groove/collar mount)

• Clones of the Creality MK8/OEM hotends (using the 2-hole M3 screw mount)

Important Note: The Hero Me Mutant components for the Wham Bam Mutant included here are for a Bowden setup. This is not a limitation of the Wham Bam Mutant (or Hero Me Mutant), as the Direct Drive options for many popular extruders that currently support the Hero Me Gen5 cooling system are being adapted to mount to the Wham Bam Mutant Mobile plate and will be available in the next week or two.

Hero Me Mutant - Mutant specific Hero Me Gen5 components
