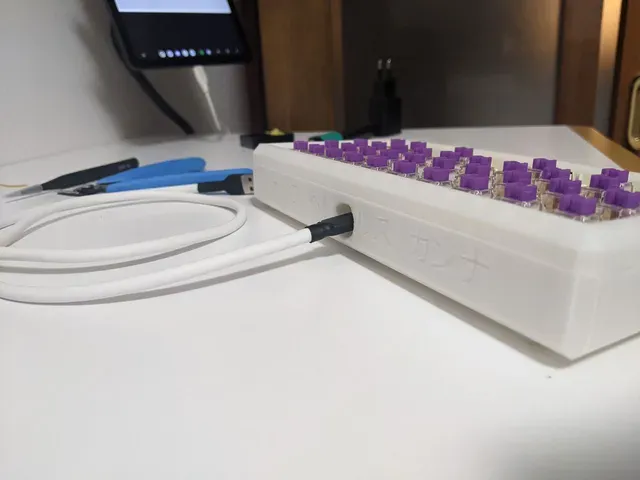

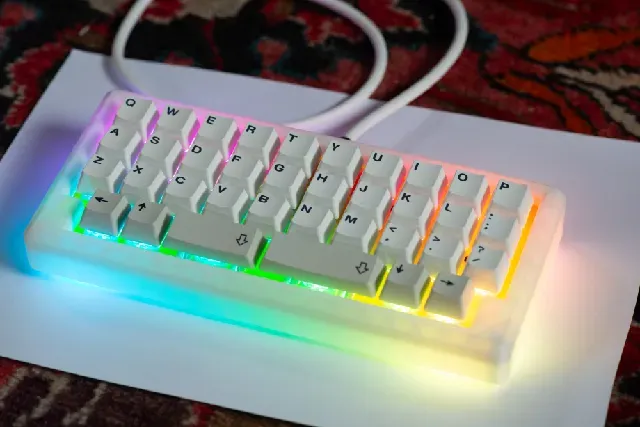

PetruziaMini - 40% Handwired Mechanical Keyboard

The PetruziaMini is my first handwired ortholinear mechanical keyboard, fully 3d printed (except switch, cables, screws and controller obviously), inspired in the number of keys and keymap from some 34/36 keys split keyboards (like the ferris/the corne).

The aim of the project was to create a printable keyboard in as few pieces as possible, even on a 220x220 printer plate.

If you follow the pinout order i used soldering the matrix to the promicro you can use the QMK configurator to create your keymaps or you can write your own qmk firmware !

Col0 D7 Row0 B4

Col1 C6 Row1 E6

C2 D4 R2 B3

C3 D0 R3 B2

C4 D1

C5 F4

C6 F5

C7 F6

C8 F7

C9 B1

If you are new in handwiring you can find guides i used here and here ! Good luck and have fun!

Some print instructions:

- All pieces are printables in PLA with 0.2 layer height - Print the Frame.stl upside down, you wont need any support - In the Case.stl you can just put a custom support on the usbc hole from your slicer, the other parts don't need any - Consider use brims! They can save your bigger pieces from warping

You will also need:

x1 Pro Micro compatible controller

x9 M2 x 15mm spacers

x18 M2 screws

x4 M3 threaded inserts

x4 M3 screws

x36 1N4148 Diodes

Cables on your choice

x36 Switch

x2 2u plate mount stabs

x34 1u keycaps

x1 2.25u keycaps

x1 2.75u keycaps

I printed mine with a Creality Ender 3 V3 SE
