Car vent phone holder mount adapter ball joint ventilation clip

The clips supplied with the general car mounts don't hold well and that bothered me.

Inspired by various similar holders, I came up with this version, which can be printed horizontally. The horizontal printing position improves the stability.

17mm ball diameter

I recommend to print it in PETG or ABS. This allows the parts to withstand the temperatures in the car better.

No support material needed.

I give credit for the main ideas to the following designs

- https://www.printables.com/model/768443-17mm-ball-joint-adapter-the-car-ventilation-clip - https://www.printables.com/model/421611-ball-joint-18mm-to-audi-ventilation-adapter - https://www.printables.com/model/473120-car-vent-adapter-for-phone-holder

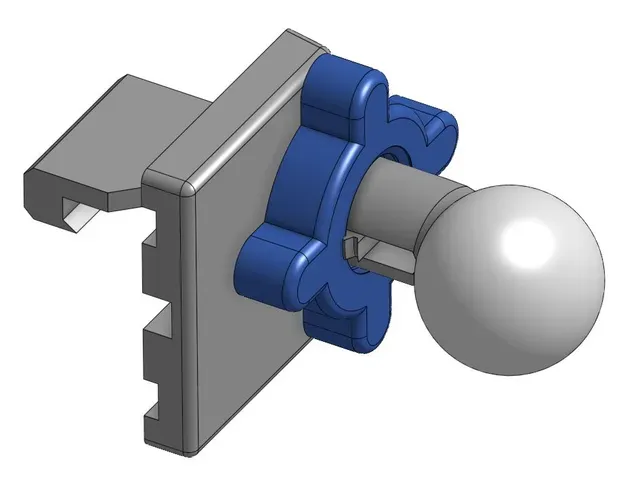

CAD Model

https://cad.onshape.com/documents/e2dba3b1b4b49143a856d915/w/40ba067bd82752b9d2951b60/e/4278e829d9867fc6a5f0ab25?renderMode=0&uiState=65d4f8e84a35cf1252aeda29

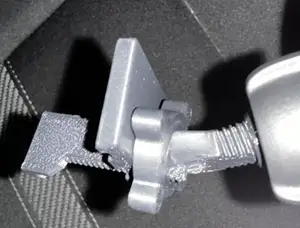

Phone Mount used in the picture:

https://de.aliexpress.com/item/1005006072036385.html
